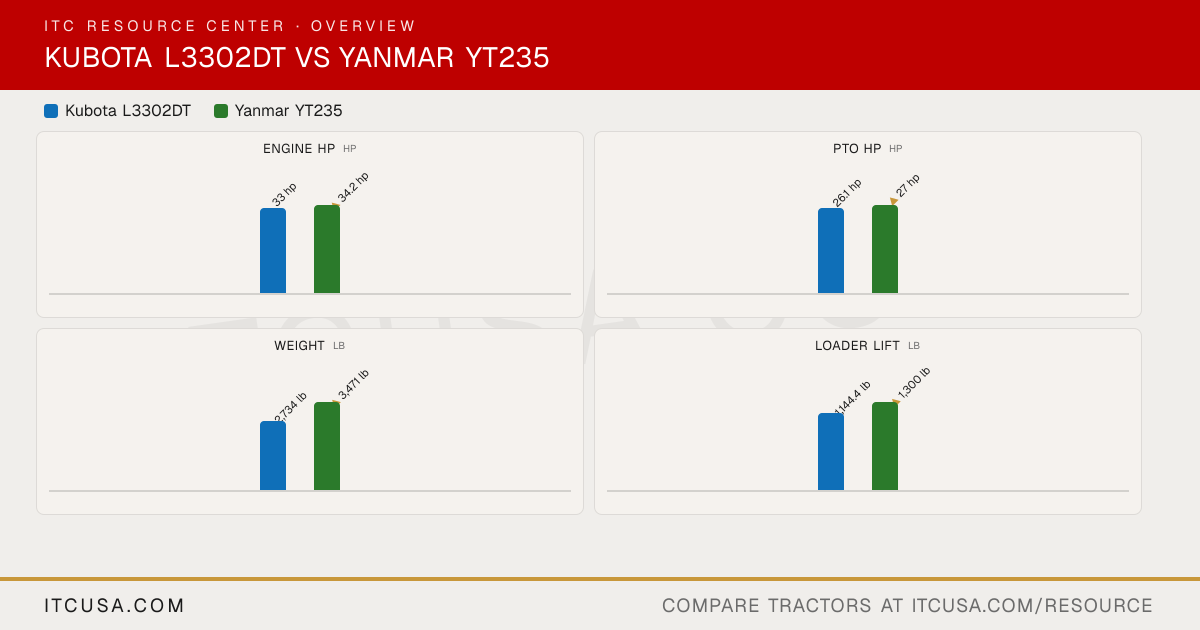

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaL3302DT
YanmarYT235
Engine Manufacturer
Kubota
YANMAR
Engine Model
D1803-CR-E5
n/a
Engine Type
Direct injection, vertical, water-cooled 4-cycle, diesel
3-cylinder, naturally aspirated diesel
No. of Cylinders
3
3
Displacement
111.4 in³
100.2 in³
Rated Engine Speed
2700 rpm
2800 rpm
Engine Power (Gross)
33 hp
34.2 hp
PTO Power
26.1 hp
27 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Water-cooled
Liquid cooled
Air Cleaner
Dry type, single element
Dual stage cyclonic (resin 5.5 in.)
Fuel System
Direct injection
Common rail direct injection
Alternator
45 A, 12 V
40 A, 12 V
Pump Type
Not Published
Not Published
Implement Flow
6.3 gpm
7.1 gpm
Steering Flow
3.8 gpm
4.1 gpm
Total Hydraulic Flow
10.1 gpm (6.3 + 3.8, computed)
11.2 gpm
Overall Hydraulic Pump Flow
10.1 gpm (6.3 + 3.8, computed)
11.2 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
Not Published
No. of Optional Remote Valves
Not Published
Not Published
Fuel Tank Capacity
11.1 gal
7.4 gal
Coolant Capacity
6.3 qt
Not Published
Crankcase Capacity
7.1 qt
Not Published
Transmission / Hydraulic System Capacity
7.5 gal
Not Published
Front Axle Fluid Capacity
4.8 qt
Not Published
PTO Type
Transmission driven with overrunning clutch
Independent (electro-hydraulic)
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
Standard
Category, 3-Point Hitch
SAE Category I
Category I
Hitch Lift Capacity
1998 lb
2,205 lb
Hitch Lift Capacity (at 24”)
1435 lb
1,764 lb
Lift Control Type
Position control
Position control
Transmission Type
Gear shift with synchronized shuttle
Hydrostatic (Dual Touch Pedal)
No. of Speeds
8 forward, 8 reverse
Unlimited (hydrostatic); 3 ranges
Max Travel Speed (Forward)
13.2 mph
11.7 mph (with R4 tires)
Max Travel Speed (Reverse)
13.2 mph
8.2 mph (with R4 tires)
Clutch
Dry type single stage
N/A (hydrostatic)
Differential Lock & Limited Slip Options
Rear differential lock, pedal operated
Rear differential lock (foot pedal engagement)
Frame Type
Not Published
Not Published
Steering
Integral type power steering
Fully hydraulic power steering
Brakes
Mechanical, wet disc type
Wet disc
Seat Suspension & Adjustability
Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Not Published
Front Axle Type
Cast-iron front axle
Selectable 4WD (2WD/4WD engagement)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
730 lb
Not Published
Overall Length with 3-Point Hitch
108.5 in (without 3-point hitch)
116.9 in
Overall Width
55.1 in
58.3 in (with R4 tires)
Wheelbase
63.4 in
65 in
Ground Clearance
13.4 in
10.8 in (with R4 tires)
Min. Turn Radius without Brakes
8.2 ft (with brake applied)
Not Published
Height to Top of ROPS
91.7 in
89.0 in (with R4 tires)
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Applicable
Tractor Weight (Base)
2734 lb
n/a
Weight with ROPS and Loader
Not Published
3,471 lb
Weight with Cab and Loader
Not Published
Not Applicable
Tire Size & Options
R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front
7.2-16
6.0-14
R1 Agricultural - Rear
11.2-24
9.5-22
R3 Turf - Front
25X8.50-14
25x8.5-14
R3 Turf - Rear
13.6-16
13.6x16
R4 Industrial - Front
27X8.50-15
25x8.5-14
R4 Industrial - Rear
15-19.5
15-19.6
Quick Attach Loader System
Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
YL310: Skid steer style bucket attachment
Loader Model
LA526
n/a
Loader Lift Height
94.8 in
84 in
Loader Lift Capacity (Full Height)
1144.4 lb
1,300 lb
Loader Breakout Force
Not Published
2,105 lb
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours; Attachments: 1-year limited warranty
