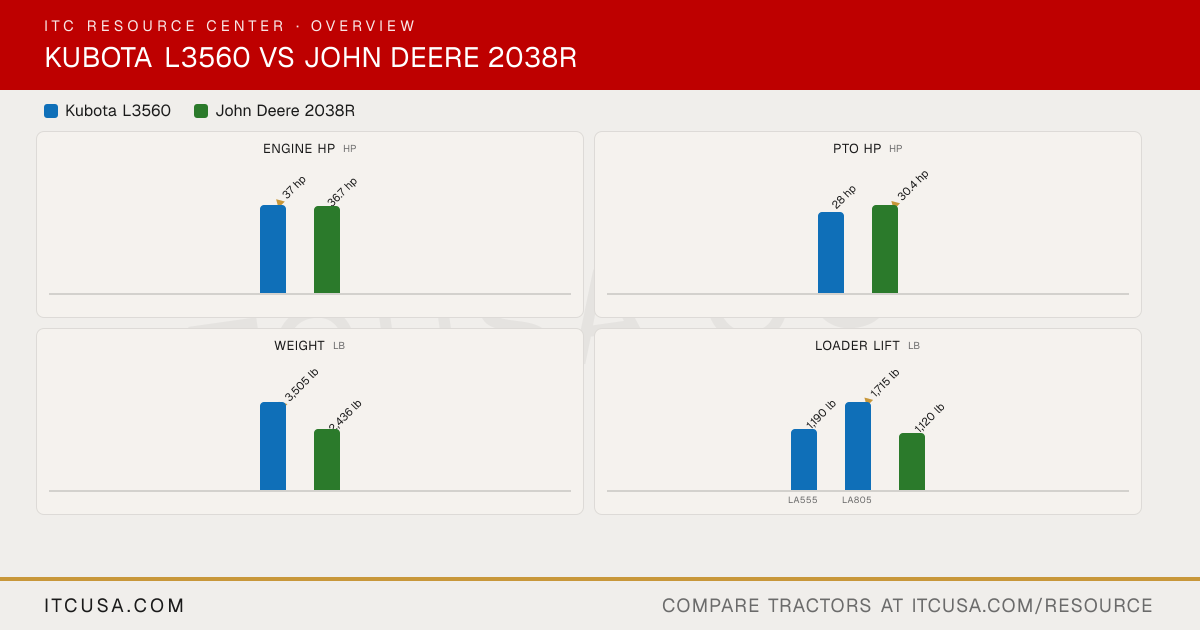

▶ EngineEngine Manufacturer Kubota Yanmar Engine Model D1803-CR-E4-GL2 3TNV88C-NJT Engine Type Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated Diesel, turbocharged No. of Cylinders 3 3 Displacement 111.4 in³ 95.8 in³ Rated Engine Speed 2600 rpm 2500 rpm Engine Power (Gross) 37 hp 36.7 hp PTO Power 28 hp 30.4 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dry paper, dual element Dual element Fuel System Electronic CRS (Common Rail System) Direct injection Alternator 40 A, 12 V 85 A, 12 V ▶ HydraulicsPump Type Tandem pump - gear type Dual gear Implement Flow 8.1 gpm 5.3 gpm Steering Flow 4.7 gpm 4 gpm Total Hydraulic Flow 12.8 gpm 9.3 gpm Overall Hydraulic Pump Flow 12.8 gpm 9.3 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves None standard (up to 3 optional) Not Published No. of Optional Remote Valves Optional, up to 3 (double-acting valve or float detent valve options, any position) Up to 3 ▶ Fluid CapacityFuel Tank Capacity 13.5 gal 8.5 gal Coolant Capacity 7.9 qt 1.37 gal Crankcase Capacity 7.1 qt 4.7 qt Transmission / Hydraulic System Capacity 11.1 gal 6.2 gal Front Axle Fluid Capacity 6.9 qt 1.0 gal ▶ PTO & HitchPTO Type Live independent (hydraulic clutch) Independent PTO Rear 540 rpm @ 2476 engine rpm 540 rpm Mid-PTO Availability Optional 2000 rpm Category, 3-Point Hitch SAE Category I Category I Hitch Lift Capacity 3,750 lb 1,356 lb Hitch Lift Capacity (at 24”) 2646 lb 1356 lb Lift Control Type Position control Position Control ▶ Transmission & DrivetrainTransmission Type Hydrostatic Hydrostatic No. of Speeds 3-Range, 6 speeds (H-DS), infinitely variable in each Infinite (2-range HST) Max Travel Speed (Forward) 16.5 mph 15.3 mph Max Travel Speed (Reverse) 14.9 mph Not Published Clutch Not Published Not Published Differential Lock & Limited Slip Options Rear differential lock, standard Differential lock: Yes; Limited slip: Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Power Brakes Wet disc type, mechanically activated Wet Disc Seat Suspension & Adjustability Deluxe suspension seat with swivel (standard); Air-Ride seat (optional) Not Published Front Axle Type 4WD: Bevel gear front axle, non-adjustable tread spacing 4WD (MFWD) Front Axle Rating Not Published 1940 lb Drawbar Capacity 1,433 lb Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 115.0 in (without 3-point hitch) 117.7 in Overall Width 59.8 in 53.9 in Wheelbase 71.1 in 67.9 in Ground Clearance 13.5 in Not Published Min. Turn Radius without Brakes 8.9 ft (with brake applied) Not Published Height to Top of ROPS 97.2 in 92.3 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 3505 lb 2436 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural; R3 Turf; R4 Industrial R1 Ag, R3 Turf, R4 Industrial, R3 Turf Radial R1 Agricultural - Front 7.0-16 7.00-12 R1 Agricultural - Rear 12.4-24 12.4-16 R3 Turf - Front 27x10.50-15 23x8.50-14 R3 Turf - Rear 41x18LL-16.1 14-17.5 R4 Industrial - Front 10-16.5 23x8.50-14 R4 Industrial - Rear 420/70-24 14-17.5 ▶ Loader & AttachmentsQuick Attach Loader System LA555: Mechanical 2-Lever Quick Coupler (standard); LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional) 220R Quik-Park Loader System Loader Model LA555 or LA805 220R Loader Lift Height LA555: 96.4 in; LA805: 104.7 in 85 in (at pivot pin) Loader Lift Capacity (Full Height) LA555: 1190 lb; LA805: 1715 lb 1,120 lb (at pivot pin, full height) Loader Breakout Force LA555: 2030 lb; LA805: 2549 lb (19.7 in forward of pivot pin) 1,949 lbf (at pivot pin) ▶ WarrantyWarranty Length & Coverage Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) ▶ ITC Company AccessoriesAccessories that fit None tagged yet
