Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

KubotaL3560

—

KubotaL4060

Comparison loaded for 2 tractors.

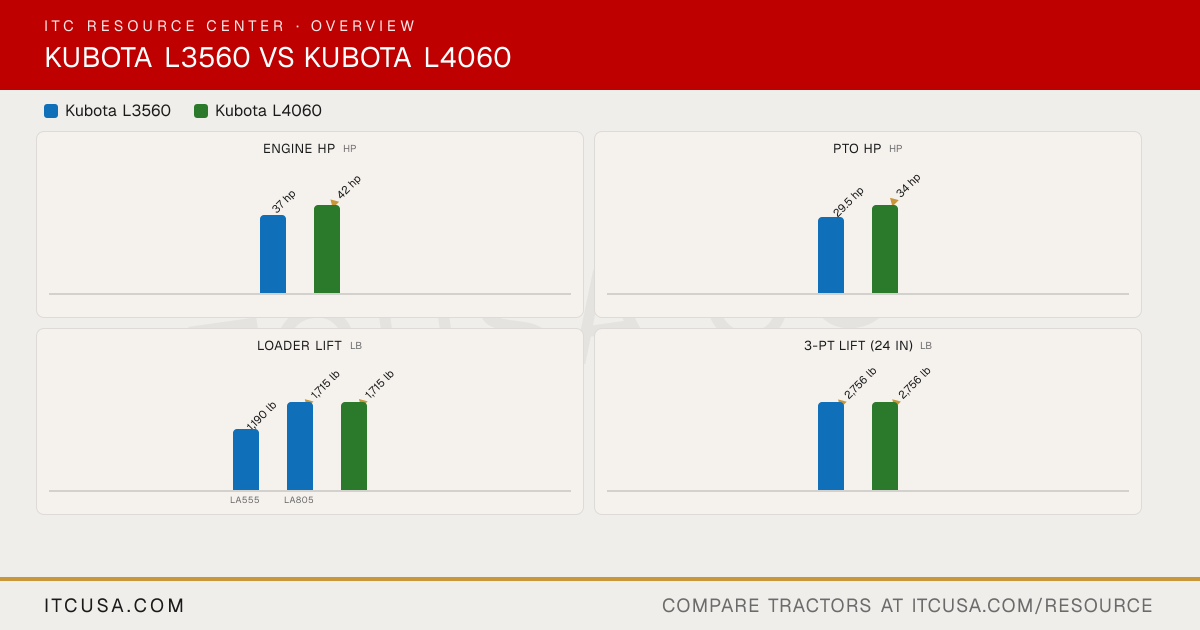

The headline numbers at a glance.

Kubota L3560Kubota L4060

Engine HPhp

37 hp

▲42 hp

PTO HPhp

29.5 hp

▲34 hp

Weightlb

—

Loader Liftlb

1,190 lb

▲1,715 lb

LA555LA805

3-Pt Lift (24 in)lb

▲2,756 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL3560	KubotaL4060


PTO Power	29.5 hp	34 hp
Alternator	40 A, 12 V	40 A, 12 V
Air Cleaner	Dry paper, dual element	Dry paper, dual element
Engine Type	Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated	Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated
Fuel System	Electronic CRS (Common Rail System)	Electronic CRS (Common Rail System)
Displacement	111.4 in³	148.5 in³
No. of Cylinders	3	4
Rated Engine Speed	2700 rpm	2700 rpm
Cooling System Type	Liquid-cooled	Liquid-cooled
Engine Manufacturer	Kubota	Kubota
Engine Power (Gross)	37 hp	42 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Tandem pump - gear type	Tandem pump - gear type
Steering Flow	DT (4WD), GST (4WD): 4.9 gpm; HST (4WD), HSTC (4WD, CAB): 4.7 gpm	DT (4WD), GST (4WD): 4.9 gpm; HST (4WD), HSTC (4WD, CAB): 4.7 gpm
Implement Flow	DT (4WD), GST (4WD): 8.3 gpm; HST (4WD), HSTC (4WD, CAB): 8.1 gpm	DT (4WD), GST (4WD): 9.8 gpm; HST (4WD), HSTC (4WD, CAB): 9.4 gpm
Total Hydraulic Flow	DT (4WD), GST (4WD): 13.2 gpm; HST (4WD), HSTC (4WD, CAB): 12.8 gpm	DT (4WD), GST (4WD): 14.7 gpm; HST (4WD), HSTC (4WD, CAB): 14.1 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	DT (4WD), GST (4WD): 13.2 gpm; HST (4WD), HSTC (4WD, CAB): 12.8 gpm	DT (4WD), GST (4WD): 14.7 gpm; HST (4WD), HSTC (4WD, CAB): 14.1 gpm
No. of Optional Remote Valves	Optional, up to 3 (double-acting valve or float detent valve options, any position)	Optional, up to 3 (double-acting valve or float detent valve options, any position)
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	DT (4WD), GST (4WD): 540 rpm @ 2550 engine rpm; HST (4WD), HSTC (4WD, CAB): 540 rpm @ 2476 engine rpm	DT (4WD), GST (4WD): 540 rpm @ 2550 engine rpm; HST (4WD), HSTC (4WD, CAB): 540 rpm @ 2476 engine rpm
PTO Type	Live independent (hydraulic clutch)	Live independent (hydraulic clutch)
Lift Control Type	Position control	Position control
Hitch Lift Capacity	3,858 lb	3,858 lb
Mid-PTO Availability	Optional	Optional
Category, 3-Point Hitch	SAE Category 1	SAE Category 1
Hitch Lift Capacity (at 24”)	2,756 lb	2,756 lb

R3 Turf - Rear	41X18LL-16.1	41X18LL-16.1
R3 Turf - Front	27X10.50-15	27X10.50LL-15
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural; R3 Turf; R4 Industrial
R4 Industrial - Rear	420/70-24	4.6 gal-24
R4 Industrial - Front	10-16.5	10-16.5
R1 Agricultural - Rear	12.4-24	14.9-24
R1 Agricultural - Front	7.2-16	8.3-16

Coolant Capacity	7.9 qt	7.9 qt
Crankcase Capacity	7.1 qt	8.7 qt
Fuel Tank Capacity	13.5 gal	13.5 gal
Front Axle Fluid Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	11.1 gal	11.4 gal

Loader Lift Height	LA555: 96.4 in; LA805: 104.7 in	104.7 in
Loader Breakout Force	LA555: 2030 lb (9029 N); LA805: 2549 lb (11341 N)	2549 lb (11341 N)
Quick Attach Loader System	LA555: Mechanical 2-Lever Quick Coupler (standard); LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)	Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Lift Capacity (Full Height)	LA555: 1190 lb; LA805: 1715 lb	1715 lb

Clutch	DT (4WD), GST (4WD): Dry type single stage; HST (4WD), HSTC (4WD, CAB): N/A	DT (4WD), GST (4WD): Dry type single stage; HST (4WD), HSTC (4WD, CAB): N/A
No. of Speeds	DT (4WD): 8Fx8R; GST (4WD): 12Fx8R; HST (4WD), HSTC (4WD, CAB): 3-Range, 6 speeds (H-DS), infinitely variable in each	DT (4WD): 8Fx8R; GST (4WD): 12Fx8R; HST (4WD), HSTC (4WD, CAB): 3-Range, 6 speeds (H-DS), infinitely variable in each
Transmission Type	DT (4WD): Gear; GST (4WD): Glide Shift; HST (4WD), HSTC (4WD, CAB): Hydrostatic	DT (4WD): Gear; GST (4WD): Glide Shift; HST (4WD), HSTC (4WD, CAB): Hydrostatic
Max Travel Speed (Forward)	DT (4WD), GST (4WD): 16.0 mph; HST (4WD), HSTC (4WD, CAB): 16.8 mph	DT (4WD), GST (4WD): 16.0 mph; HST (4WD), HSTC (4WD, CAB): 16.8 mph
Max Travel Speed (Reverse)	DT (4WD), GST (4WD): 15.2 mph; HST (4WD), HSTC (4WD, CAB): 15.1 mph	DT (4WD), GST (4WD): 15.2 mph; HST (4WD), HSTC (4WD, CAB): 15.1 mph
Differential Lock & Limited Slip Options	Rear differential lock, standard	Rear differential lock, standard

Brakes	Wet disc type, mechanically activated	Wet disc type, mechanically activated
Steering	Hydrostatic power steering	Hydrostatic power steering
Frame Type	Not Published	Not Published
Front Axle Type	4WD: Bevel gear front axle, non-adjustable tread spacing	4WD: Bevel gear front axle, non-adjustable tread spacing
Drawbar Capacity	1,433 lbs.	1,433 lbs.
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	74.6 in	74.6 in
Overall Width	66.5 in	66.5 in
Ground Clearance	15.9 in	15.9 in
Height to Top of ROPS	DT (4WD), GST (4WD), HST (4WD): 97.6 in; HSTC (4WD, CAB): Not Applicable	DT (4WD), GST (4WD), HST (4WD): 97.6 in; HSTC (4WD, CAB): Not Applicable
Height to Top of Cab Model	DT (4WD), GST (4WD), HST (4WD): Not Applicable; HSTC (4WD, CAB): 91.1 in	DT (4WD), GST (4WD), HST (4WD): Not Applicable; HSTC (4WD, CAB): 91.1 in
Height to Top of ROPS (folded)	DT (4WD), GST (4WD), HST (4WD): 90.6 in; HSTC (4WD, CAB): Not Applicable	DT (4WD), GST (4WD), HST (4WD): 91.1 in; HSTC (4WD, CAB): Not Applicable
Min. Turn Radius without Brakes	8.9 ft (2.7 m)	8.9 ft (2.7 m)
Overall Length with 3-Point Hitch	129.5 in	129.5 in
