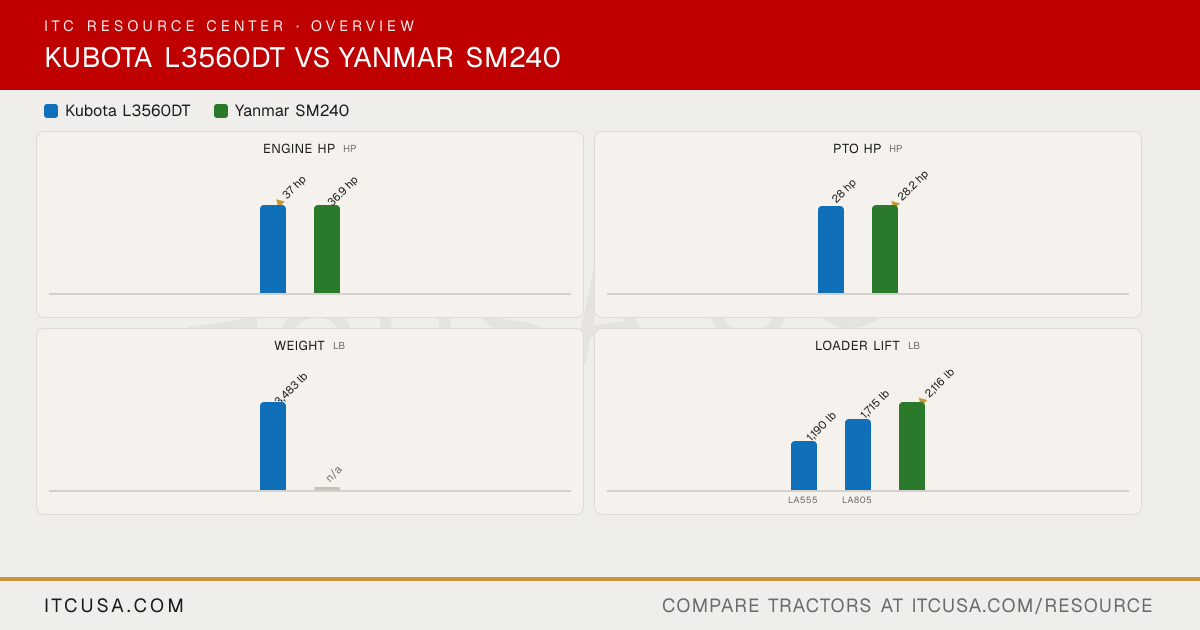

▶ EngineEngine Manufacturer Kubota YANMAR Engine Model D1803-CR-E4-GL2 n/a Engine Type Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated Not Published No. of Cylinders 3 Not Published Displacement 111.4 in³ Not Published Rated Engine Speed 2600 rpm 3000 rpm Engine Power (Gross) 37 hp 36.9 hp PTO Power 28 hp 28.2 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled Not Published Air Cleaner Dry paper, dual element Not Published Fuel System Electronic CRS (Common Rail System) Not Published Alternator 40 A, 12 V Not Published ▶ HydraulicsPump Type Tandem pump - gear type Not Published Implement Flow 8.1 gpm 6.1 gpm Steering Flow 4.7 gpm 4.4 gpm Total Hydraulic Flow 12.8 gpm 10.5 gpm Overall Hydraulic Pump Flow 12.8 gpm 10.5 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves None standard (up to 3 optional) Not Published No. of Optional Remote Valves Optional, up to 3 (double-acting valve or float detent valve options, any position) 1 or 2 ▶ Fluid CapacityFuel Tank Capacity 13.5 gal 9.0 gal Coolant Capacity 7.9 qt Not Published Crankcase Capacity 7.1 qt Not Published Transmission / Hydraulic System Capacity 11.1 gal Not Published Front Axle Fluid Capacity 6.9 qt Not Published ▶ PTO & HitchPTO Type Live independent (hydraulic clutch) Independent PTO Rear 540 rpm @ 2476 engine rpm 540 rpm Mid-PTO Availability Optional Not Published Category, 3-Point Hitch SAE Category 1 Category I Hitch Lift Capacity 3,750 lb 2,639 lb Hitch Lift Capacity (at 24”) 2646 lb 1,558 lb Lift Control Type Position control Not Published ▶ Transmission & DrivetrainTransmission Type Hydrostatic Synchro shuttle No. of Speeds 3-Range, 6 speeds (H-DS), infinitely variable in each Not Published Max Travel Speed (Forward) 16.5 mph Not Published Max Travel Speed (Reverse) 15.8 mph Not Published Clutch Not Published Dry single plate Differential Lock & Limited Slip Options Rear differential lock, standard Rear differential lock (foot pedal engagement) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Not Published Brakes Wet disc type, mechanically activated Not Published Seat Suspension & Adjustability Deluxe suspension seat with swivel (standard); Air-Ride seat (optional) Not Published Front Axle Type 4WD: Bevel gear front axle, non-adjustable tread spacing Selectable 2WD/4WD engagement Front Axle Rating Not Published Not Published Drawbar Capacity 1,433 lb Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 115.0 in (without 3-point hitch) Not Published Overall Width 59.8 in Not Published Wheelbase 71.1 in Not Published Ground Clearance 13.5 in 12.8 in Min. Turn Radius without Brakes 8.9 ft (with brake applied) Not Published Height to Top of ROPS 97.2 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Applicable ▶ WeightTractor Weight (Base) 3483 lb n/a Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Applicable ▶ Tire OptionsTire Size & Options R1 Agricultural; R3 Turf; R4 Industrial Not Published R1 Agricultural - Front 7.0-16 Not Published R1 Agricultural - Rear 12.4-24 Not Published R3 Turf - Front 27x10.50-15 Not Published R3 Turf - Rear 41x18LL-16.1 Not Published R4 Industrial - Front 10-16.5 Not Published R4 Industrial - Rear 420/70-24 Not Published ▶ Loader & AttachmentsQuick Attach Loader System LA555: Mechanical 2-Lever Quick Coupler (standard); LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional) Not Published Loader Model LA555 or LA805 n/a Loader Lift Height LA555: 96.4 in; LA805: 104.7 in 101.5 in Loader Lift Capacity (Full Height) LA555: 1190 lb; LA805: 1715 lb 2,116 lb Loader Breakout Force LA555: 2030 lb; LA805: 2549 lb (19.7 in forward of pivot pin) 3,435 lb ▶ WarrantyWarranty Length & Coverage Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. Tractor: 24 months or 2,000 hours; Powertrain: 10 years or 3,000 hours ▶ ITC Company AccessoriesAccessories that fit None tagged yet
