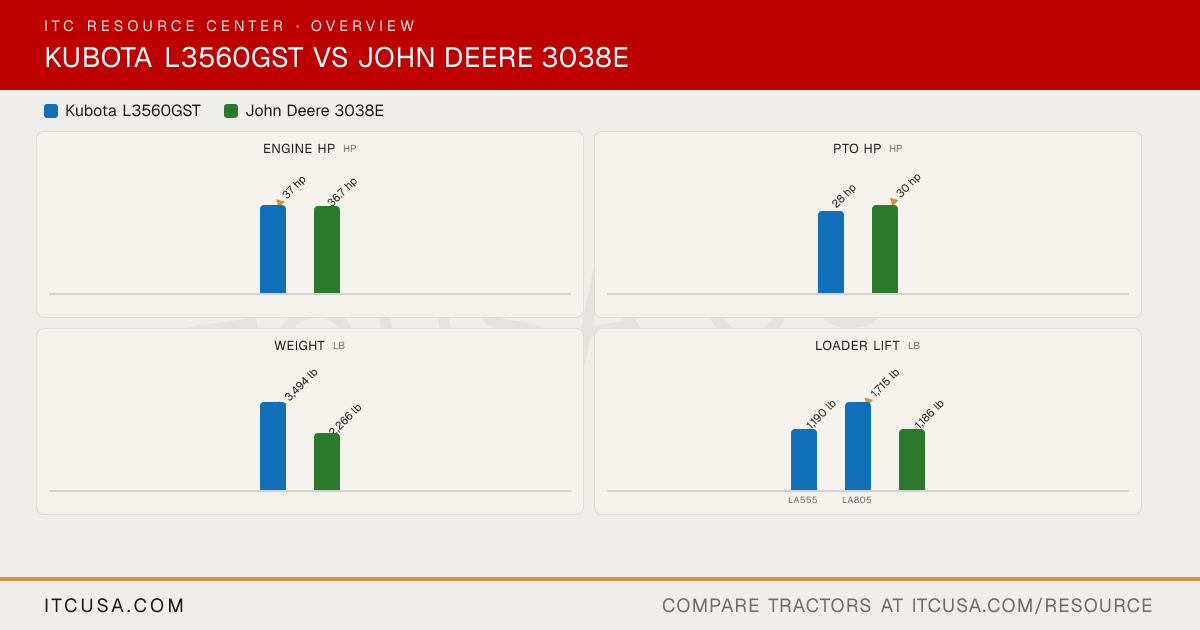

▶ EngineEngine Manufacturer Kubota Yanmar Engine Model D1803-CR-E4-GL1 3TNV86CT-NJT2 Engine Type Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated Diesel No. of Cylinders 3 3 Displacement 111.4 in³ 95.7 in³ Rated Engine Speed 2600 rpm 2500 rpm Engine Power (Gross) 37 hp 36.7 hp PTO Power 28 hp 30 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water pump Air Cleaner Dry paper, dual element Dry type with safety element Fuel System Electronic CRS (Common Rail System) High pressure common rail direct injection Alternator 40 A, 12 V 55 A, 12 V ▶ HydraulicsPump Type Tandem pump - gear type Implement/steering pump: Tandem gear; hydrostatic pump: PV axial piston Implement Flow 8.1 gpm 5.3 gpm Steering Flow 4.7 gpm 4.0 gpm Total Hydraulic Flow 12.8 gpm 9.3 gpm Overall Hydraulic Pump Flow 12.8 gpm 9.3 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves None standard (up to 3 optional) Not Published No. of Optional Remote Valves Optional, up to 3 (double-acting valve or float detent valve options, any position) Up to 2 (optional) ▶ Fluid CapacityFuel Tank Capacity 13.5 gal 7.5 gal Coolant Capacity 7.9 qt 1.37 gal Crankcase Capacity 7.1 qt 4.5 qt Transmission / Hydraulic System Capacity 11.1 gal 5.5 gal Front Axle Fluid Capacity 6.9 qt 1.0 gal ▶ PTO & HitchPTO Type Live independent (hydraulic clutch) Independent PTO Rear 540 rpm @ 2476 engine rpm 540 rpm Mid-PTO Availability Optional Optional Category, 3-Point Hitch SAE Category 1 Category 1 Hitch Lift Capacity 3,750 lb 1,356 lb Hitch Lift Capacity (at 24”) 2646 lb 1356 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Hydrostatic Hydrostatic transmission (HST) No. of Speeds 3-Range, 6 speeds (H-DS), infinitely variable in each Not Published Max Travel Speed (Forward) 16.5 mph Not Published Max Travel Speed (Reverse) 15.8 mph Not Published Clutch Not Published Not Published Differential Lock & Limited Slip Options Rear differential lock, standard Differential lock: Yes; Limited slip: Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Power steering Brakes Wet disc type, mechanically activated Wet disk Seat Suspension & Adjustability Deluxe suspension seat with swivel (standard); Air-Ride seat (optional) Not Published Front Axle Type 4WD: Bevel gear front axle, non-adjustable tread spacing Not Published Front Axle Rating Not Published 1760 lb Drawbar Capacity 1,433 lb 880 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 115.0 in (without 3-point hitch) 115.9 in Overall Width 59.8 in 56.9 in (min. rear tread, standard R1 tires); 61.7 in (max. rear tread, larger R4 tires) Wheelbase 71.1 in 62.8 in Ground Clearance 13.5 in 12.7 in (R4 tires) Min. Turn Radius without Brakes 8.9 ft (with brake applied) 9.4 ft (2.9 m) Height to Top of ROPS 97.2 in 95.3 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 3494 lb 2266 lb Weight with ROPS and Loader Not Published 2972 lb Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural; R3 Turf; R4 Industrial R1 Bar, R3 Turf, R4 Industrial R1 Agricultural - Front 7.0-16 7-14 R1 Agricultural - Rear 12.4-24 11.2-24 R3 Turf - Front 27x10.50-15 27X8.50-15 R3 Turf - Rear 41x18LL-16.1 41X14-20 R4 Industrial - Front 10-16.5 25X8.50-14 or 27X8.50-15 R4 Industrial - Rear 420/70-24 15.00-19.5 or 43X16-20 ▶ Loader & AttachmentsQuick Attach Loader System LA555: Mechanical 2-Lever Quick Coupler (standard); LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional) Quick-change attachment carrier Loader Model LA555 or LA805 D160 Loader Lift Height LA555: 96.4 in; LA805: 104.7 in 84 in Loader Lift Capacity (Full Height) LA555: 1190 lb; LA805: 1715 lb 1,186 lb Loader Breakout Force LA555: 2030 lb; LA805: 2549 lb (19.7 in forward of pivot pin) 1,704 lb ▶ WarrantyWarranty Length & Coverage Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) ▶ ITC Company AccessoriesAccessories that fit None tagged yet
