Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

KubotaL3560LE

—

JohnDeere3038E

Comparison loaded for 2 tractors.

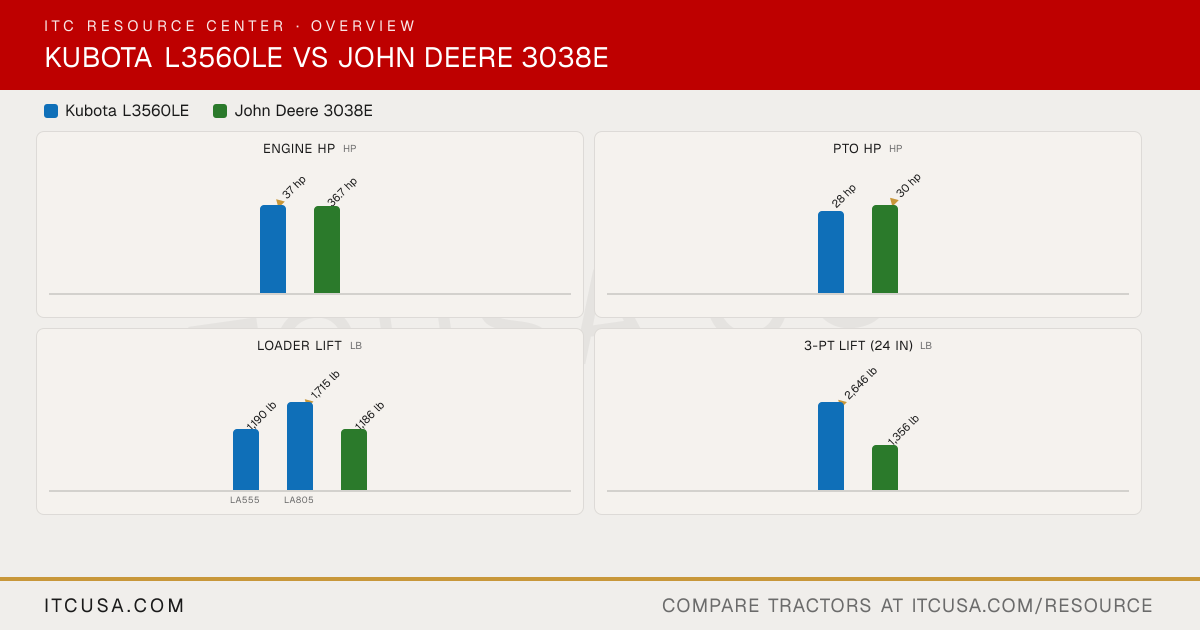

The headline numbers at a glance.

Kubota L3560LEJohn Deere 3038E

Engine HPhp

▲37 hp

36.7 hp

PTO HPhp

28 hp

▲30 hp

Weightlb

—

Loader Liftlb

1,190 lb

▲1,715 lb

1,186 lb

LA555LA805

3-Pt Lift (24 in)lb

▲2,646 lb

1,356 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL3560LE	John Deere3038E


PTO Power	28 hp	30 hp
Alternator	40 A, 12 V	55 A, 12 V
Air Cleaner	Dry paper, dual element	Dual element
Engine Type	Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated	Diesel
Fuel System	Electronic CRS (Common Rail System)	High pressure common rail direct injection
Displacement	111.4 in³	95.8 in³
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2500 rpm
Cooling System Type	Liquid-cooled	Water pump (liquid cooled)
Engine Manufacturer	Kubota	Yanmar
Engine Power (Gross)	37 hp	36.7 hp
Engine Emissions Constraints	Tier 4	Tier 4

Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Applicable

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)

Pump Type	Not Published	Dual gear
Steering Flow	4.7 gpm	4.0 gpm
Implement Flow	8.1 gpm	5.3 gpm
Total Hydraulic Flow	12.8 gpm	9.3 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	12.8 gpm	9.3 gpm
No. of Optional Remote Valves	Optional, up to 3	Up to 2 (optional)
No. of Standard Remote Valves	Not Published	Not Published

PTO Rear	1 speed: 540 rpm	540 rpm
PTO Type	Independent	Independent
Lift Control Type	Position control	Position control
Hitch Lift Capacity	Not Published	1,356 lb
Mid-PTO Availability	Optional	Optional
Category, 3-Point Hitch	Category I	Category 1
Hitch Lift Capacity (at 24”)	2,646 lb	1,356 lb

R3 Turf - Rear	Not Published	41X14-20
R3 Turf - Front	Not Published	27X8.50-15
Tire Size & Options	Agricultural, Turf or Industrial tires (options)	R1 Bar, R3 Turf, R4 Industrial
R4 Industrial - Rear	Not Published	15.00-19.5 or 43X16-20
R4 Industrial - Front	Not Published	25X8.50-14 or 27X8.50-15
R1 Agricultural - Rear	12.4-24	11.2-24
R1 Agricultural - Front	7.0-16	7-14

Coolant Capacity	Not Published	1.37 gal
Crankcase Capacity	Not Published	1.12 gal (with filter)
Fuel Tank Capacity	13.5 gal	7.5 gal
Front Axle Fluid Capacity	Not Published	1.0 gal
Transmission / Hydraulic System Capacity	Not Published	5.5 gal

Loader Lift Height	LA555: 96.4 in; LA805: 104.7 in	84 in
Loader Breakout Force	LA555: 2030 lb (9029 N); LA805: 2549 lb (11341 N)	1,704 lb
Quick Attach Loader System	LA555: Mechanical 2-Lever Quick Coupler (standard); LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)	Quick-change attachment carrier
Loader Lift Capacity (Full Height)	LA555: 1190 lb; LA805: 1715 lb	1,186 lb

Clutch	N/A	Not Applicable
No. of Speeds	3 ranges	Not Applicable
Transmission Type	Hydrostatic (HST Plus)	Hydrostatic transmission (HST)
Max Travel Speed (Forward)	16.5 mph	Not Published
Max Travel Speed (Reverse)	14.9 mph	Not Published
Differential Lock & Limited Slip Options	Not Published	Differential lock: Yes; Limited slip: Not Published

Brakes	Wet disc type	Wet disk
Steering	Hydrostatic power steering	Power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	1940 lb
Seat Suspension & Adjustability	Not Published	Not Published

Wheelbase	71.1 in	62.7 in
Overall Width	59.8 in	Not Published
Ground Clearance	13.5 in	11.8 in min; 13.1 in max
Height to Top of ROPS	HST-LE (4WD, ROPS): 97.2 in; HSTC-LE (4WD, CAB): Not Applicable	Not Published
Height to Top of Cab Model	HST-LE (4WD, ROPS): Not Applicable; HSTC-LE (4WD, CAB): Not Published	Not Applicable
Height to Top of ROPS (folded)	HST-LE (4WD, ROPS): 90.6 in; HSTC-LE (4WD, CAB): Not Applicable	Not Published
Min. Turn Radius without Brakes	8.9 ft (2.7 m)	9.4 ft (2.9 m)
Overall Length with 3-Point Hitch	Not Published	Not Published
