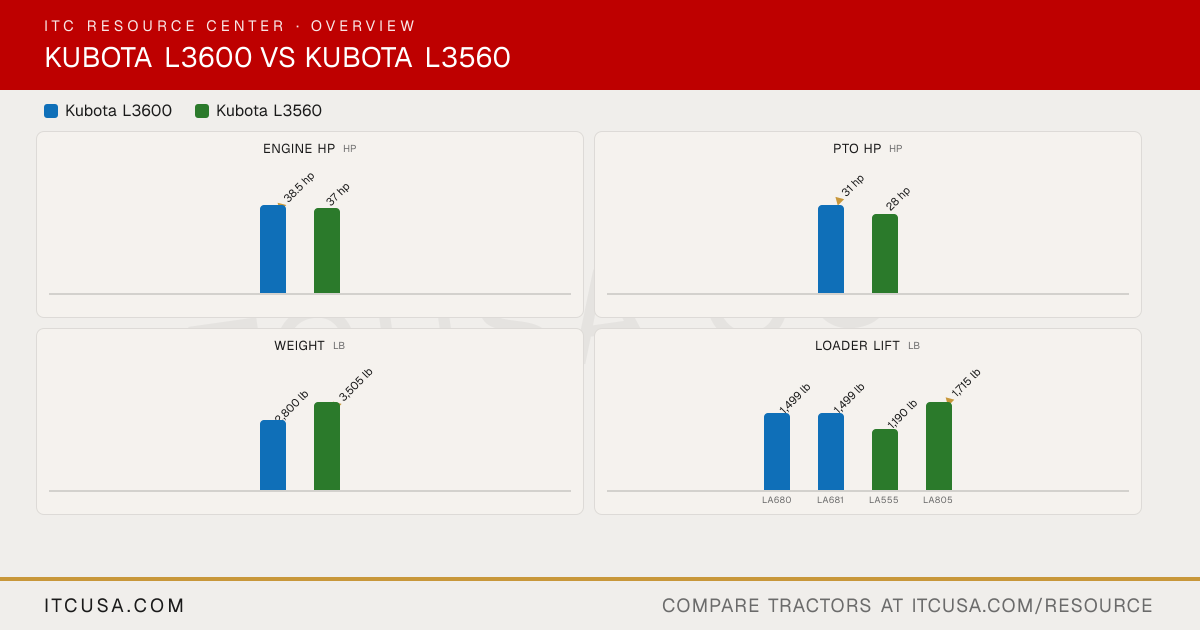

▶ EngineEngine Manufacturer Kubota Kubota Engine Model V1903-A D1803-CR-E4-GL2 Engine Type Indirect injection, vertical, water-cooled, 4-cycle diesel Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated No. of Cylinders 4 3 Displacement 113.3 in³ 111.4 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 38.5 hp 37 hp PTO Power 31 hp 28 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Water-cooled Liquid-cooled Air Cleaner Not Published Dry paper, dual element Fuel System Indirect injection Electronic CRS (Common Rail System) Alternator Not Published 40 A, 12 V ▶ HydraulicsPump Type Not Published Tandem pump - gear type Implement Flow 7.8 gpm 8.1 gpm Steering Flow Not Published 4.7 gpm Total Hydraulic Flow Not Published 12.8 gpm Overall Hydraulic Pump Flow Not Published 12.8 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published None standard (up to 3 optional) No. of Optional Remote Valves Not Published Optional, up to 3 (double-acting valve or float detent valve options, any position) ▶ Fluid CapacityFuel Tank Capacity 9.2 gal 13.5 gal Coolant Capacity 7.9 qt 7.9 qt Crankcase Capacity 6.3 qt 7.1 qt Transmission / Hydraulic System Capacity 10.3 gal 11.1 gal Front Axle Fluid Capacity Not Published 6.9 qt ▶ PTO & HitchPTO Type Independent Live independent (hydraulic clutch) PTO Rear 540 rpm 540 rpm @ 2476 engine rpm Mid-PTO Availability Optional mid-PTO, 2000 rpm (USA No. 5, Kubota 10-tooth involute spline) Optional Category, 3-Point Hitch Category I SAE Category I Hitch Lift Capacity 2870 lb 3,750 lb Hitch Lift Capacity (at 24”) 2310 lb 2646 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type F (2WD), DT (4WD): Synchronized shuttle and synchronized transmission, 8F/8R; GST (4WD): Glide Shift Transmission, 8F/8R Hydrostatic No. of Speeds 8F/8R 3-Range, 6 speeds (H-DS), infinitely variable in each Max Travel Speed (Forward) 14.3 mph 16.5 mph Max Travel Speed (Reverse) 13.1 mph 14.9 mph Clutch Dry type single stage Not Published Differential Lock & Limited Slip Options Not Published Rear differential lock, standard ▶ Chassis, Steering & ControlsFrame Type Two-post ROPS Not Published Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet disc type Wet disc type, mechanically activated Seat Suspension & Adjustability Not Published Deluxe suspension seat with swivel (standard); Air-Ride seat (optional) Front Axle Type Not Published 4WD: Bevel gear front axle, non-adjustable tread spacing Front Axle Rating Not Published Not Published Drawbar Capacity 1430 lb 1,433 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 118.1 in (w/o 3P) (without 3-point hitch) 115.0 in (without 3-point hitch) Overall Width 56.1 in 59.8 in Wheelbase F (2WD): 71.3 in; DT (4WD), GST (4WD): 71.1 in 71.1 in Ground Clearance 13.2 in 13.5 in Min. Turn Radius without Brakes F (2WD), DT (4WD): 8.2 ft; GST (4WD): 8.5 ft (w/brake) (with brake applied) 8.9 ft (with brake applied) Height to Top of ROPS 83.5 in 97.2 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) F (2WD): 2800 lb; DT (4WD): 2955 lb; GST (4WD): 2965 lb 3505 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Ag: 6.00-16 (2WD) or 8.3-16 (4WD) front, 13.6-24 rear R1 Agricultural; R3 Turf; R4 Industrial R1 Agricultural - Front F (2WD): 6.00-16; DT (4WD), GST (4WD): 8.3-16 7.0-16 R1 Agricultural - Rear 13.6-24 12.4-24 R3 Turf - Front Not Published 27x10.50-15 R3 Turf - Rear Not Published 41x18LL-16.1 R4 Industrial - Front Not Published 10-16.5 R4 Industrial - Rear Not Published 420/70-24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published LA555: Mechanical 2-Lever Quick Coupler (standard); LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional) Loader Model LA680; LA681 LA555 or LA805 Loader Lift Height LA680: 102.4 in; LA681: 102.4 in LA555: 96.4 in; LA805: 104.7 in Loader Lift Capacity (Full Height) LA680: 1499 lb; LA681: 1499 lb LA555: 1190 lb; LA805: 1715 lb Loader Breakout Force LA680: 2557 lbf; LA681: 2557 lbf LA555: 2030 lb; LA805: 2549 lb (19.7 in forward of pivot pin) ▶ WarrantyWarranty Length & Coverage Not Published Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. ▶ ITC Company AccessoriesAccessories that fit None tagged yet
