Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

KubotaL3800

n/a

KubotaL3400

Comparison loaded for 2 tractors.

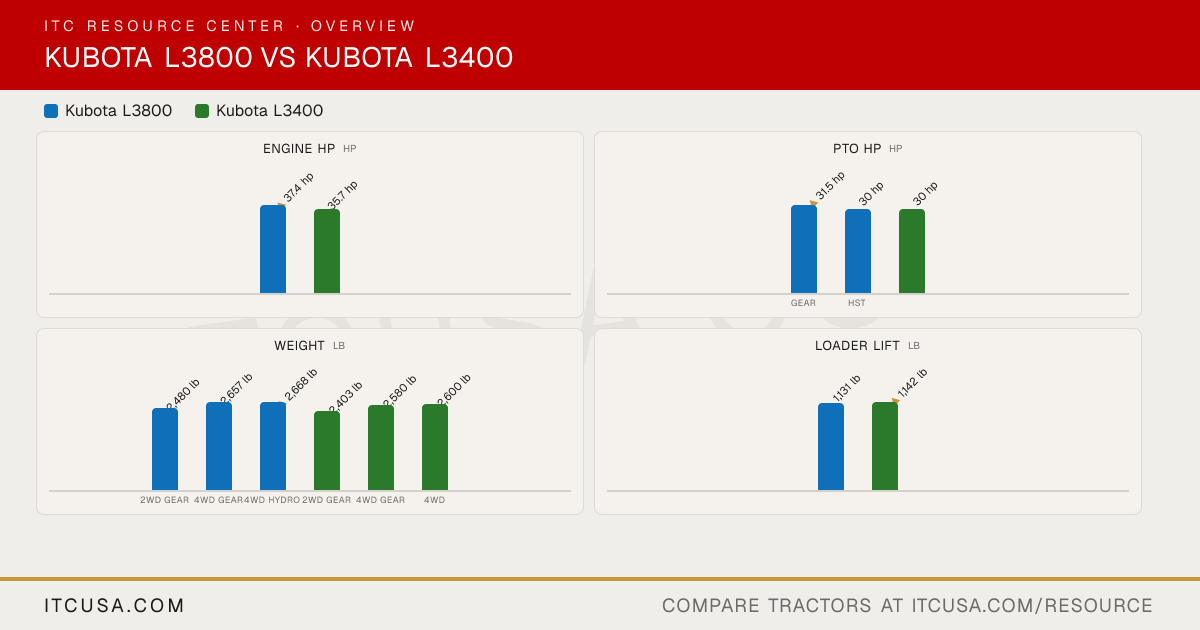

The headline numbers at a glance.

Kubota L3800Kubota L3400

Engine HPhp

▲37.4 hp

35.7 hp

PTO HPhp

▲31.5 hp

30 hp

GearHST

Weightlb

2,480 lb

2,657 lb

▲2,668 lb

2,403 lb

2,580 lb

2,600 lb

2WD gear4WD gear4WD hydro2WD gear4WD gear4WD

Loader Liftlb

1,131 lb

▲1,142 lb

3-Pt Lift (24 in)lb

n/a

1,435 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL3800	KubotaL3400


Engine Manufacturer	Kubota	Kubota
Engine Model	D1803	Not Published
Engine Type	Diesel, 3-cylinder, liquid-cooled	Vertical, liquid-cooled, 4-cycle diesel, indirect injection (E-TVCS)
No. of Cylinders	3	3
Displacement	111.4 in³	111.4 in³
Rated Engine Speed	2700 rpm	2700 rpm
Engine Power (Gross)	37.4 hp	35.7 hp
PTO Power	Gear: 31.5 hp; HST: 30 hp	F (2WD gear), DT (4WD gear): 30 hp; HST (4WD): 28.5 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Not Published	Liquid-cooled
Air Cleaner	Not Published	Not Published
Fuel System	Not Published	Indirect injection (E-TVCS)
Alternator	Not Published	40 A, 12 V

Pump Type	Not Published	Not Published
Implement Flow	6.3 gpm	6.3 gpm
Steering Flow	Not Published	3.8 gpm
Total Hydraulic Flow	Not Published	10.1 gpm (6.3 + 3.8, computed)
Overall Hydraulic Pump Flow	Not Published	Not Published
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Not Published	Up to 3

Fuel Tank Capacity	10 gal	9.0 gal
Coolant Capacity	Not Published	Not Published
Crankcase Capacity	Not Published	Not Published
Transmission / Hydraulic System Capacity	Gear: 7.1 gal; HST: 6.2 gal	7.3 gal
Front Axle Fluid Capacity	Not Published	4.8 qt

PTO Type	Not Published	F (2WD gear), DT (4WD gear): Live-continuous running; HST (4WD): Live-continuous with overrunning clutch
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	Not Published	1998 lb
Hitch Lift Capacity (at 24”)	Not Published	1435 lb
Lift Control Type	Not Published	Position control

Transmission Type	Gear: 8-speed constant mesh; HST: hydrostatic	F (2WD gear), DT (4WD gear): Sliding gear and constant mesh, 8F/4R; HST (4WD): Hydrostatic transmission, 3-range
No. of Speeds	Gear: 8F/4R; HST: infinite (3-range)	F (2WD gear), DT (4WD gear): 8F/4R; HST (4WD): 3-range
Max Travel Speed (Forward)	Not Published	F (2WD gear), DT (4WD gear): 13.2 mph; HST (4WD): 14.1 mph
Max Travel Speed (Reverse)	Not Published	F (2WD gear), DT (4WD gear): 4.7 mph; HST (4WD): 12.7 mph
Clutch	Not Published	F (2WD gear), DT (4WD gear): Dry-type dual stage; HST (4WD): Dry-type single stage
Differential Lock & Limited Slip Options	Rear differential lock standard	Rear differential lock standard

Frame Type	Not Published	Foldable ROPS (standard on all models)
Steering	Hydrostatic power steering	Integral type power steering
Brakes	Wet disc	Wet disc type
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	Bevel gear front axle	4WD: Bevel gear front axle
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	Not Published	Not Published

Overall Length with 3-Point Hitch	2WD: 110.6 in; 4WD: 106.3 in	F (2WD gear): 110.6 in; DT (4WD gear), HST (4WD): 106.5 in (w/o 3P) (without 3-point hitch)
Overall Width	55.1 in	51.4 in
Wheelbase	63.3 in	63.3 in
Ground Clearance	2WD: 13.6 in; 4WD: 13.4 in	F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.4 in
Min. Turn Radius without Brakes	Not Published	F (2WD gear): 7.9 ft; DT (4WD gear), HST (4WD): 8.2 ft (w/brake) (with brake applied)
Height to Top of ROPS	91.7 in	85.0 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	2WD gear: 2480 lb; 4WD gear: 2657 lb; 4WD hydro: 2668 lb	F (2WD gear): 2403 lb; DT (4WD gear): 2580 lb; HST (4WD): 2600 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	2WD: 5.00-15 front; 4WD: 7.2-16 front; 11.2-24 rear	AG standard; turf and industrial optional
R1 Agricultural - Front	2WD: 5.00-15; 4WD: 7.2-16	F (2WD gear): 5-15; DT (4WD gear), HST (4WD): 7-16
R1 Agricultural - Rear	11.2-24	11.2-24
R3 Turf - Front	2WD: 23x8.50-12; 4WD: 25x8.50-14	25x8.50-14 (4WD)
R3 Turf - Rear	13.6-16	13.6-16
R4 Industrial - Front	27x8.50-15 (4WD)	27x8.50-15 (4WD)
R4 Industrial - Rear	15-19.5	15-19.5 R4 (4WD)

Quick Attach Loader System	LA524 quick attach loader	LA463: quick attach/detach loader (mounting pins and hose couplers from the seat); skid steer-type quick coupler optional
Loader Model	LA524	LA463
Loader Lift Height	LA524: 94.3 in	LA463: 95.3 in
Loader Lift Capacity (Full Height)	LA524: 1131 lb (at pin)	LA463: 1142 lb
Loader Breakout Force	LA524: 2462 lbf (at pin)	Not Published

Warranty Length & Coverage	Not Published	Not Published
