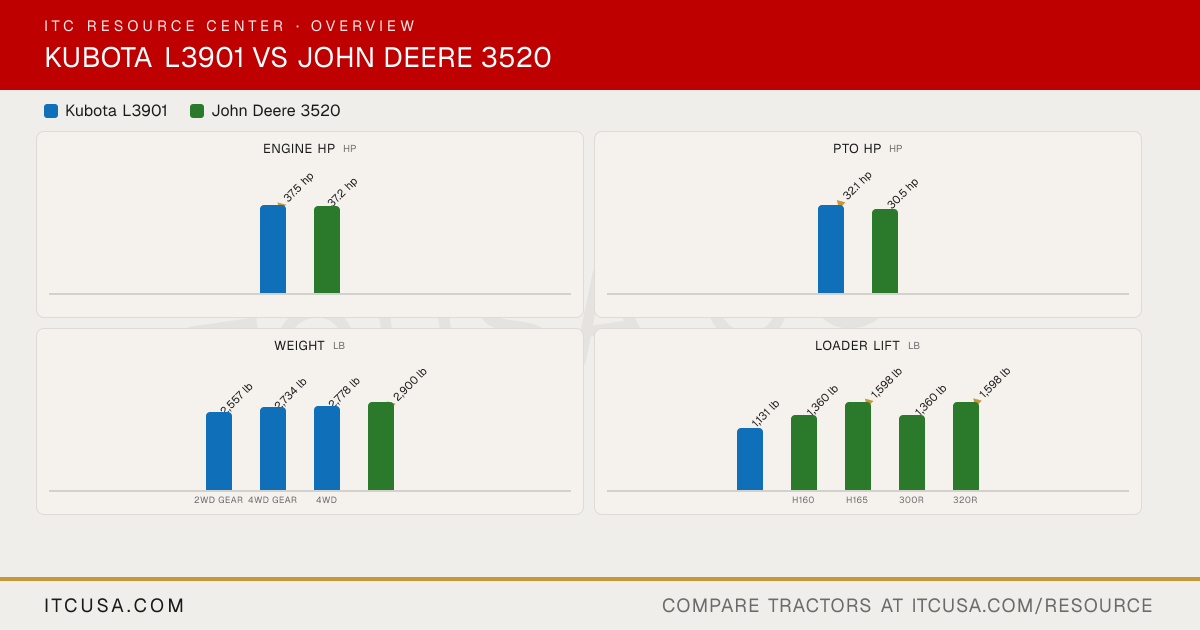

▶ EngineEngine Manufacturer Kubota Yanmar Engine Model F (2WD gear), DT (4WD gear): D1803-CR-E4-LB3; HST (4WD): D1803-CR-E4-LB4 3TNV84T-BMJT Engine Type 3-cylinder, multi-valve, naturally aspirated, common-rail, liquid-cooled diesel 3-cylinder liquid-cooled diesel, direct injection No. of Cylinders 3 3 Displacement 111.4 in³ 91.5 in³ Rated Engine Speed 2700 rpm 2600 rpm Engine Power (Gross) 37.5 hp 37.2 hp PTO Power F (2WD gear), DT (4WD gear): 32.1 hp; HST (4WD): 30.6 hp 30.5 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled, water with pressurized radiator Liquid-cooled Air Cleaner Dry paper single element Dry type with safety element Fuel System Common-rail, direct injection, electronic control Direct injection, self-bleeding in-line fuel pump, electric shutoff Alternator 40 A 40 A ▶ HydraulicsPump Type Open center tandem pump, gear type Dual tandem gear pump Implement Flow 6.3 gpm 8.6 gpm Steering Flow 3.8 gpm 5.3 gpm Total Hydraulic Flow 10.1 gpm 13.9 gpm Overall Hydraulic Pump Flow 10.1 gpm 13.9 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Up to 3: self-canceling detent valve or float detent valve Not Published ▶ Fluid CapacityFuel Tank Capacity 11.1 gal 13.5 gal (open station); 11.8 gal (cab) Coolant Capacity 6.3 qt 1.4 gal (open station); 1.8 gal (cab) Crankcase Capacity 7.1 qt 5.1 qt Transmission / Hydraulic System Capacity F (2WD gear): 7.4 gal; DT (4WD gear): 7.5 gal; HST (4WD): 6.2 gal 6.8 gal (eHydro); 6.3 gal (PowrReverser) Front Axle Fluid Capacity 4.8 qt 1.2 gal ▶ PTO & HitchPTO Type Live-continuous running Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability No mid-PTO offered Optional, 2100 rpm Category, 3-Point Hitch Category I Category 1 Hitch Lift Capacity 1,874 lb (at lift points) 2,530 lb Hitch Lift Capacity (at 24”) 1,433 lb 2,200 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type F (2WD gear), DT (4WD gear): synchronized shuttle, 8F/8R; HST (4WD): hydrostatic, 3-range eHydro 3-range (4WD only); PowrReverser 12F/12R (4WD only) No. of Speeds F (2WD gear), DT (4WD gear): 8F/8R; HST (4WD): 3-range Infinite forward and reverse, 3 ranges (eHydro); 12 forward, 12 reverse (PowrReverser) Max Travel Speed (Forward) F (2WD gear), DT (4WD gear): 13.2 mph; HST (4WD): 14.1 mph 19 mph (eHydro); 16.4 mph (PowrReverser) Max Travel Speed (Reverse) F (2WD gear), DT (4WD gear): 13.1 mph; HST (4WD): 12.7 mph 19 mph (eHydro); 16.4 mph (PowrReverser) Clutch F (2WD gear), DT (4WD gear), HST (4WD): dry type single stage Multiple stage wet disc, 4.4 in (PowrReverser) Differential Lock & Limited Slip Options Rear differential lock standard Mechanical rear differential lock ▶ Chassis, Steering & ControlsFrame Type Two-post foldable ROPS (factory certified) with retractable seat belt Folding ROPS; cab optional; MFWD standard Steering Integral power steering Hydrostatic power steering Brakes Mechanical wet disc type, pedals can be locked together Wet disk Seat Suspension & Adjustability Not Published Not Published Front Axle Type F (2WD gear): tubular steel, non-adjustable tread spacing; DT (4WD gear), HST (4WD): bevel-gear front axle, non-adjustable tread spacing Mechanical front wheel drive (MFWD), standard, all ranges Front Axle Rating 2,865 lb (at 41.3 in tread, 2WD and 4WD models) 1,587 to 3,197 lb Drawbar Capacity 730 lb Drawbar tongue capacity: 882 lb; maximum static vertical load: 562 lb ▶ Dimensions & ManeuverabilityOverall Width 55.1 in 52.4 in (minimum, R1 tires); 68.4 in (maximum, R1 tires) Wheelbase 63.3 in 68 in Ground Clearance F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.5 in 12.2 in (rear axle) Min. Turn Radius without Brakes F (2WD gear): 8.9 ft; DT (4WD gear), HST (4WD): 10.5 ft Not Published Height to Top of ROPS 97.1 in 93.3 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 89.4 in Overall Length F (2WD gear): 119.1 in; DT (4WD gear), HST (4WD): 116.3 in (with 3-point hitch) 120.2 in (with 3-point hitch) ▶ WeightTractor Weight (Base) F (2WD gear): 2,557 lb; DT (4WD gear): 2,734 lb; HST (4WD): 2,778 lb 2,900 lb (open station); 3,570 lb (cab) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural (standard); R3 Turf; R4 Industrial (4WD) R1 bar tread, R3 turf, R4 industrial and golf tires available on all models R1 Agricultural - Front F (2WD gear): 5-15 (7.5L-15 optional); DT (4WD gear), HST (4WD): 7.2-16 7.00-14 R1 Agricultural - Rear 11.2-24 11.2-24 R3 Turf - Front F (2WD gear): 23x8.5-12; DT (4WD gear), HST (4WD): 25x8.5-14 27x8.50-15 R3 Turf - Rear 13.6-16 41x14.00-20 R4 Industrial - Front 27x8.5-15 (4WD) 25x8.50-14 or 27x8.50-15 R4 Industrial - Rear 15-19.5 (4WD) 43x16.00-20 or 15.00-19.5 ▶ Loader & AttachmentsQuick Attach Loader System LA525: 2-lever quick coupler, tool-free attach and detach John Deere Quik-Park Loader Model LA525 300CX; H160; H165; 300R; 320R Loader Lift Height LA525: 94.3 in (at pivot pin) H160: 90 in; H165: 102 in; 300R: 90 in; 320R: 102 in Loader Lift Capacity (Full Height) LA525: 1,131 lb (at pivot pin) H160: 1,360 lb; H165: 1,598 lb; 300R: 1,360 lb; 320R: 1,598 lb (to maximum height at pivot pin) Loader Breakout Force LA525: 2,462 lbf (bucket pivot pin) H160: 2,855 lbf; H165: 3,327 lbf; 300R: 2,855 lbf; 320R: 3,327 lbf (at pivot point) ▶ WarrantyWarranty Length & Coverage 24 months or 1500 hours (general) Not Published
