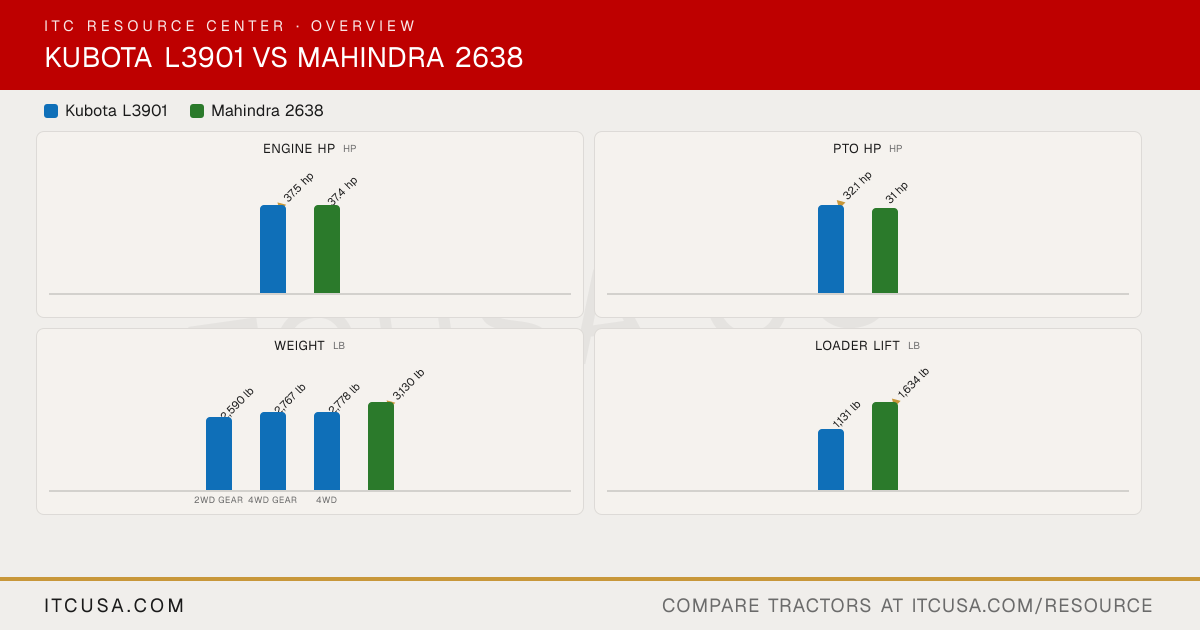

▶ EngineEngine Manufacturer Kubota Mahindra Engine Model F (2WD gear), DT (4WD gear): D1803-CR-E4-LB3; HST (4WD): D1803-CR-E4-LB4 CE-38 Engine Type Liquid-cooled, 3-cylinder, 4-cycle, multi-valve diesel, naturally aspirated, common rail direct injection Four-stroke, Naturally Aspirated, Direct Injection, Water Cooled Diesel Engine No. of Cylinders 3 4 Displacement 111.4 in³ 166.7 in³ Rated Engine Speed 2700 rpm 2400 rpm Engine Power (Gross) 37.5 hp 37.4 hp PTO Power F (2WD gear), DT (4WD gear): 32.1 hp; HST (4WD): 30.6 hp 31 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled, water with pressurized radiator Water-cooled Air Cleaner Dry paper single element Dry dual element Fuel System Common rail (CRS) direct injection, electronic fuel injection Direct Injection (mCRD fuel-injected) Alternator 40 A, 12 V 90 A, 12 V ▶ HydraulicsPump Type Open center tandem pump, gear type Not Published Implement Flow 6.3 gpm 7.6 gpm Steering Flow 3.8 gpm 4.1 gpm Total Hydraulic Flow 10.1 gpm 11.7 gpm Overall Hydraulic Pump Flow 10.1 gpm 11.7 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Up to 3 (self canceling detent valve or float detent valve options) 1 (optional) ▶ Fluid CapacityFuel Tank Capacity 11.1 gal 9 gal Coolant Capacity 6.3 qt 1.85 gal Crankcase Capacity 7.1 qt 2.25 gal Transmission / Hydraulic System Capacity F (2WD gear): 7.4 gal; DT (4WD gear): 7.5 gal; HST (4WD): 6.2 gal 8.5 gal Front Axle Fluid Capacity 4.8 qt 2.17 gal ▶ PTO & HitchPTO Type Live independent PTO with hydraulic clutch Independent PTO Rear 540 rpm 540 rpm @ 2400 rpm Mid-PTO Availability No mid-PTO offered Optional, 2000 rpm @ 2500 engine rpm Category, 3-Point Hitch Category I CAT I Hitch Lift Capacity 1998 lb 2646 lb Hitch Lift Capacity (at 24”) 1433 lb Not Published Lift Control Type Position control Position Control ▶ Transmission & DrivetrainTransmission Type F (2WD gear), DT (4WD gear): Synchronized shuttle gear transmission, 8F/8R; HST (4WD): Hydrostatic transmission, 3-range HST No. of Speeds F (2WD gear), DT (4WD gear): 8F/8R; HST (4WD): 3-range Infinite / 3 Ranges Max Travel Speed (Forward) F (2WD gear), DT (4WD gear): 13.2 mph; HST (4WD): 14.1 mph 15.05 mph Max Travel Speed (Reverse) F (2WD gear), DT (4WD gear): 13.1 mph; HST (4WD): 12.7 mph 14.38 mph Clutch F (2WD gear), DT (4WD gear): Dry type dual stage; HST (4WD): Dry type single stage Damper Differential Lock & Limited Slip Options Rear differential lock standard Bevel gears with diff-lock ▶ Chassis, Steering & ControlsFrame Type Two-post foldable ROPS (factory certified) with retractable seat belt Not Published Steering Integral power steering Power steering Brakes Mechanical wet disc type, pedals can be locked together Wet Disc Brake, Mechanical Seat Suspension & Adjustability Not Published mComfort seat (mechanical suspension; adjustable headrest; foldable armrests) Front Axle Type F (2WD gear): Tubular steel, non-adjustable tread spacing; DT (4WD gear), HST (4WD): Bevel gear front axle, non-adjustable tread spacing Center pin Front Axle Rating 2865 lb (at 41.3 in tread, 2WD and 4WD models) Not Published Drawbar Capacity 730 lb Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch F (2WD gear): 119.1 in; DT (4WD gear), HST (4WD): 116.3 in 119.3 in Overall Width 55.1 in 63.2 in Wheelbase 63.3 in 67.7 in Ground Clearance F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.5 in 14.5 in Min. Turn Radius without Brakes F (2WD gear): 8.9 ft; DT (4WD gear), HST (4WD): 10.5 ft Not Published Height to Top of ROPS 91.7 in 94.4 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) F (2WD gear): 2590 lb; DT (4WD gear): 2767 lb; HST (4WD): 2778 lb 3130 lb Weight with ROPS and Loader Not Published 4115 lb Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural (standard); R3 Turf; R4 Industrial (4WD) R1 Agricultural, R4 Industrial R1 Agricultural - Front F (2WD gear): 5-15 (7.5L-15 optional); DT (4WD gear), HST (4WD): 7.2-16 7-16 6PR R1 Agricultural - Rear 11.2-24 11.2-24 4PR R3 Turf - Front F (2WD gear): 23x8.5-12; DT (4WD gear), HST (4WD): 25x8.5-14 Not Published R3 Turf - Rear 13.6-16 Not Published R4 Industrial - Front 27x8.5-15 (4WD) 10-16.5 R4 Industrial - Rear 15-19.5 (4WD) 43x16-20 ▶ Loader & AttachmentsQuick Attach Loader System LA525: 2-Lever Quick Coupler, no tools required to attach and detach loader 2638L: Quick-attach adapter included (loader interfaces with compatible attachments via quick-attach system). Loader Model LA525 2638L (66 in bucket) Loader Lift Height LA525: 94.3 in 2638L: 101.4 in Loader Lift Capacity (Full Height) LA525: 1131 lb 2638L: 1,634 lb Loader Breakout Force LA525: 2462 lbf 2638L: 2,696 lb ▶ WarrantyWarranty Length & Coverage 24 months or 1500 hours (general) 7-Year Limited Powertrain Warranty
