Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

KubotaL3901

n/a

TYMT394C

Comparison loaded for 2 tractors.

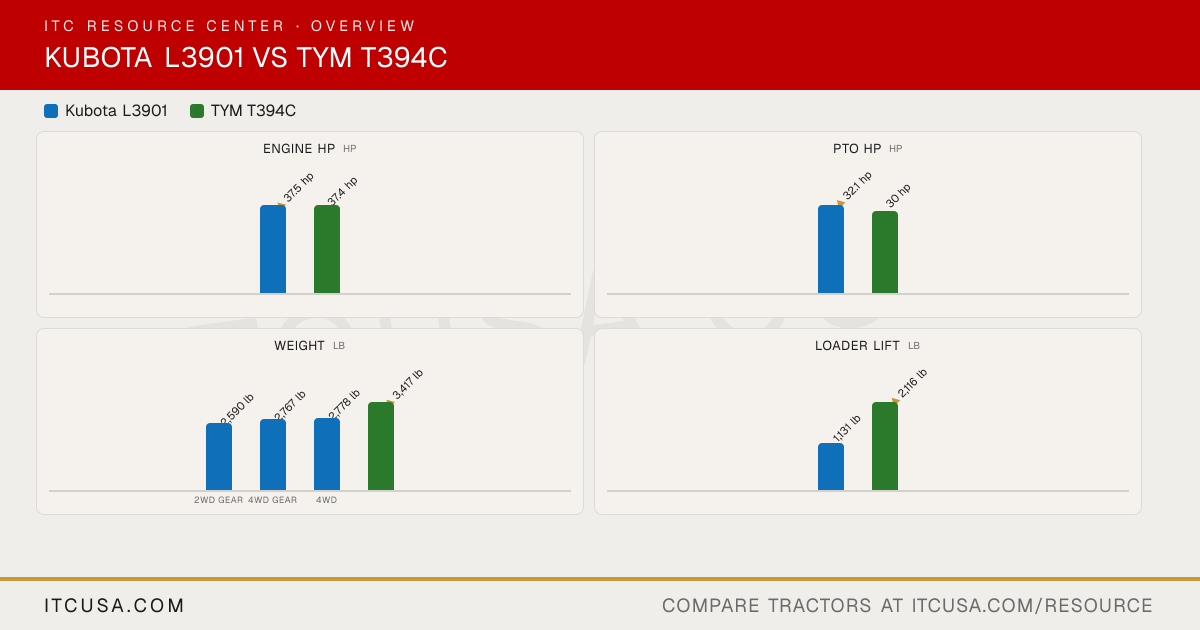

The headline numbers at a glance.

Kubota L3901TYM T394C

Engine HPhp

▲37.5 hp

37.4 hp

PTO HPhp

▲32.1 hp

30 hp

Weightlb

2,590 lb

2,767 lb

2,778 lb

▲3,417 lb

2WD gear4WD gear4WD

Loader Liftlb

1,131 lb

▲2,116 lb

3-Pt Lift (24 in)lb

1,433 lb

▲1,558 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL3901	TYMT394C


Engine Manufacturer	Kubota	Yanmar
Engine Model	F (2WD gear), DT (4WD gear): D1803-CR-E4-LB3; HST (4WD): D1803-CR-E4-LB4	3TNV88-CR
Engine Type	Liquid-cooled, 3-cylinder, 4-cycle, multi-valve diesel, naturally aspirated, common rail direct injection	3-cylinder, naturally aspirated diesel
No. of Cylinders	3	3
Displacement	111.4 in³	100.2 in³
Rated Engine Speed	2700 rpm	3000 rpm
Engine Power (Gross)	37.5 hp	37.4 hp
PTO Power	F (2WD gear), DT (4WD gear): 32.1 hp; HST (4WD): 30.6 hp	30 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled, water with pressurized radiator	Liquid-cooled
Air Cleaner	Dry paper single element	Dual dry
Fuel System	Common rail (CRS) direct injection, electronic fuel injection	CRDI
Alternator	40 A, 12 V	70 A, 12 V

Pump Type	Open center tandem pump, gear type	Dual gear pump
Implement Flow	6.3 gpm	6.1 gpm
Steering Flow	3.8 gpm	4.4 gpm
Total Hydraulic Flow	10.1 gpm	10.5 gpm
Overall Hydraulic Pump Flow	10.1 gpm	10.5 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	0
No. of Optional Remote Valves	Up to 3 (self canceling detent valve or float detent valve options)	1 or 2 (single or double rear remote with detent, accessory)

Fuel Tank Capacity	11.1 gal	9.0 gal
Coolant Capacity	6.3 qt	7.4 qt
Crankcase Capacity	7.1 qt	6 qt
Transmission / Hydraulic System Capacity	F (2WD gear): 7.4 gal; DT (4WD gear): 7.5 gal; HST (4WD): 6.2 gal	8.5 gal
Front Axle Fluid Capacity	4.8 qt	8.7 qt

PTO Type	Live independent PTO with hydraulic clutch	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	No mid-PTO offered	Optional (Mid-PTO kit, 2000 rpm)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	1998 lb	2,639 lb
Hitch Lift Capacity (at 24”)	1433 lb	1,558 lb
Lift Control Type	Position control	Position control

Transmission Type	F (2WD gear), DT (4WD gear): Synchronized shuttle gear transmission, 8F/8R; HST (4WD): Hydrostatic transmission, 3-range	Mechanical synchro shuttle
No. of Speeds	F (2WD gear), DT (4WD gear): 8F/8R; HST (4WD): 3-range	12 forward / 12 reverse
Max Travel Speed (Forward)	F (2WD gear), DT (4WD gear): 13.2 mph; HST (4WD): 14.1 mph	15.0 mph
Max Travel Speed (Reverse)	F (2WD gear), DT (4WD gear): 13.1 mph; HST (4WD): 12.7 mph	Not Published
Clutch	F (2WD gear), DT (4WD gear): Dry type dual stage; HST (4WD): Dry type single stage	Dry single plate
Differential Lock & Limited Slip Options	Rear differential lock standard	Differential lock (pedal)

Frame Type	Two-post foldable ROPS (factory certified) with retractable seat belt	Unitized: transmission case, clutch housing, engine and front axle support bolted into a rigid unit
Steering	Integral power steering	Hydrostatic
Brakes	Mechanical wet disc type, pedals can be locked together	Wet disc
Seat Suspension & Adjustability	Not Published	Fore and aft sliding seat with cushion strength adjustment
Front Axle Type	F (2WD gear): Tubular steel, non-adjustable tread spacing; DT (4WD gear), HST (4WD): Bevel gear front axle, non-adjustable tread spacing	4WD center-pivot, reverse Elliott type
Front Axle Rating	2865 lb (at 41.3 in tread, 2WD and 4WD models)	Not Published
Drawbar Capacity	730 lb	Not Published

Overall Length with 3-Point Hitch	F (2WD gear): 119.1 in; DT (4WD gear), HST (4WD): 116.3 in	126 in
Overall Width	55.1 in	53.5 in
Wheelbase	63.3 in	66.9 in
Ground Clearance	F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.5 in	12.8 in
Min. Turn Radius without Brakes	F (2WD gear): 8.9 ft; DT (4WD gear), HST (4WD): 10.5 ft	116 in
Height to Top of ROPS	91.7 in	Not Published
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	92.5 in

Tractor Weight (Base)	F (2WD gear): 2590 lb; DT (4WD gear): 2767 lb; HST (4WD): 2778 lb	3,417 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	4,370 lb

Tire Size & Options	R1 Agricultural (standard); R3 Turf; R4 Industrial (4WD)	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	F (2WD gear): 5-15 (7.5L-15 optional); DT (4WD gear), HST (4WD): 7.2-16	Farm Specialist 7-16 NHS TL 6PR
R1 Agricultural - Rear	11.2-24	Farm Specialist 12.4-24 NHS TL 6PR (standard); Farm Specialist 11.2-24 NHS TL 6PR (option)
R3 Turf - Front	F (2WD gear): 23x8.5-12; DT (4WD gear), HST (4WD): 25x8.5-14	Multi-Trac CS 27x8.50-15 NHS TL 4PR
R3 Turf - Rear	13.6-16	Multi-Trac CS 41x14.00-20 NHS TL 4PR
R4 Industrial - Front	27x8.5-15 (4WD)	Trac Chief 10-16.50 NHS TL 6PR
R4 Industrial - Rear	15-19.5 (4WD)	Xtra Grip 43x16.00-20 NHS TL 6PR

Quick Attach Loader System	LA525: 2-Lever Quick Coupler, no tools required to attach and detach loader	TX39H: quick attachment assembly
Loader Model	LA525	TX39H
Loader Lift Height	LA525: 94.3 in	TX39H: 101.5 in
Loader Lift Capacity (Full Height)	LA525: 1131 lb	TX39H: 2,116 lb
Loader Breakout Force	LA525: 2462 lbf	TX39H: 3,435 lb

Warranty Length & Coverage	24 months or 1500 hours (general)	Bumper-to-bumper 24 months or 2,000 hours (parts and labor); powertrain 72 months or 3,000 hours for non-commercial use (36 months or 2,000 hours rental and commercial); loaders and backhoes 12 months

Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T394 Rural King RK37 Brush Screen Insert $249.99
