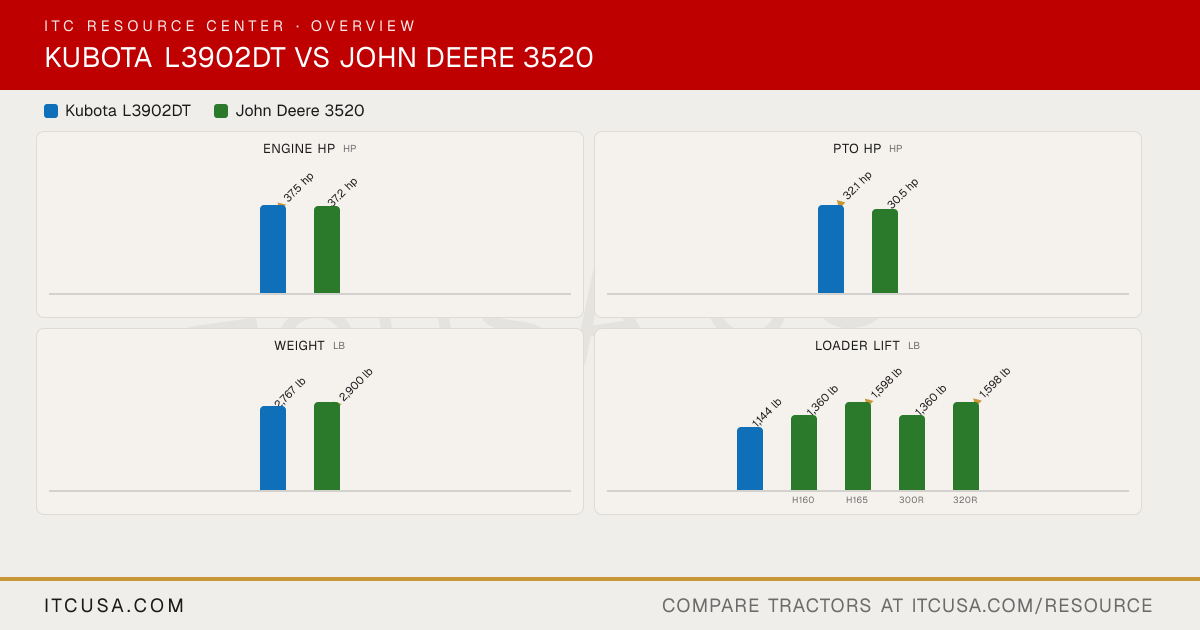

▶ EngineEngine Manufacturer Kubota Yanmar Engine Model D1803-CR-E5 3TNV84T-BMJT Engine Type Direct injection, vertical, water-cooled 4-cycle, diesel 3-cylinder liquid-cooled diesel, direct injection No. of Cylinders 3 3 Displacement 111.4 in³ 91.5 in³ Rated Engine Speed 2700 rpm 2600 rpm Engine Power (Gross) 37.5 hp 37.2 hp PTO Power 32.1 hp 30.5 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Water-cooled Liquid-cooled Air Cleaner Dry type, single element Dry type with safety element Fuel System Direct injection Direct injection, self-bleeding in-line fuel pump, electric shutoff Alternator 45 A, 12 V 40 A ▶ HydraulicsPump Type Not Published Dual tandem gear pump Implement Flow 6.3 gpm 8.6 gpm Steering Flow 3.8 gpm 5.3 gpm Total Hydraulic Flow 10.1 gpm (6.3 + 3.8, computed) 13.9 gpm Overall Hydraulic Pump Flow 10.1 gpm (6.3 + 3.8, computed) 13.9 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity 11.1 gal 13.5 gal (open station); 11.8 gal (cab) Coolant Capacity 6.3 qt 1.4 gal (open station); 1.8 gal (cab) Crankcase Capacity 7.1 qt 5.1 qt Transmission / Hydraulic System Capacity Not Published 6.8 gal (eHydro); 6.3 gal (PowrReverser) Front Axle Fluid Capacity 4.8 qt 1.2 gal ▶ PTO & HitchPTO Type Live-continuous running Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published Optional, 2100 rpm Category, 3-Point Hitch SAE Category I Category 1 Hitch Lift Capacity 1,998 lb 2,530 lb Hitch Lift Capacity (at 24”) 1,435 lb 2,200 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Gear shift with synchronized shuttle eHydro 3-range (4WD only); PowrReverser 12F/12R (4WD only) No. of Speeds 8 forward, 8 reverse Infinite forward and reverse, 3 ranges (eHydro); 12 forward, 12 reverse (PowrReverser) Max Travel Speed (Forward) 13.2 mph 19 mph (eHydro); 16.4 mph (PowrReverser) Max Travel Speed (Reverse) 13.2 mph 19 mph (eHydro); 16.4 mph (PowrReverser) Clutch Dry type dual stage Multiple stage wet disc, 4.4 in (PowrReverser) Differential Lock & Limited Slip Options Rear differential lock, pedal operated Mechanical rear differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Folding ROPS; cab optional; MFWD standard Steering Integral type power steering Hydrostatic power steering Brakes Mechanical, wet disc type Wet disk Seat Suspension & Adjustability Suspension seat with fore/aft travel adjustment and suspension tension adjustment Not Published Front Axle Type Cast-iron front axle Mechanical front wheel drive (MFWD), standard, all ranges Front Axle Rating Not Published 1,587 to 3,197 lb Drawbar Capacity 730 lb Drawbar tongue capacity: 882 lb; maximum static vertical load: 562 lb ▶ Dimensions & ManeuverabilityOverall Width 55.1 in 52.4 in (minimum, R1 tires); 68.4 in (maximum, R1 tires) Wheelbase 63.4 in 68 in Ground Clearance 13.4 in 12.2 in (rear axle) Min. Turn Radius without Brakes 8.2 ft (with brake applied) Not Published Height to Top of ROPS 91.7 in 93.3 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published 89.4 in Overall Length 108.7 in (without 3-point hitch) 120.2 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 2,767 lb 2,900 lb (open station); 3,570 lb (cab) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Agricultural; Turf; Industrial (R4) R1 bar tread, R3 turf, R4 industrial and golf tires available on all models R1 Agricultural - Front 7.2-16 7.00-14 R1 Agricultural - Rear 11.2-24 11.2-24 R3 Turf - Front 25X8.50-14 27x8.50-15 R3 Turf - Rear 13.6-16 41x14.00-20 R4 Industrial - Front 27X8.50-15 25x8.50-14 or 27x8.50-15 R4 Industrial - Rear 15-19.5 43x16.00-20 or 15.00-19.5 ▶ Loader & AttachmentsQuick Attach Loader System Front Loader (LA526 - 2 Lever Quick Coupler (OPT)) John Deere Quik-Park Loader Model LA526 300CX; H160; H165; 300R; 320R Loader Lift Height 94.8 in (at pivot pin) H160: 90 in; H165: 102 in; 300R: 90 in; 320R: 102 in Loader Lift Capacity (Full Height) 1,144 lb (at pivot pin, max. height) H160: 1,360 lb; H165: 1,598 lb; 300R: 1,360 lb; 320R: 1,598 lb (to maximum height at pivot pin) Loader Breakout Force Not Published H160: 2,855 lbf; H165: 3,327 lbf; 300R: 2,855 lbf; 320R: 3,327 lbf (at pivot point) ▶ WarrantyWarranty Length & Coverage Basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: powertrain 36 months or 2,000 hours Not Published ▶ ITC Company AccessoriesAccessories that fit None tagged yet
