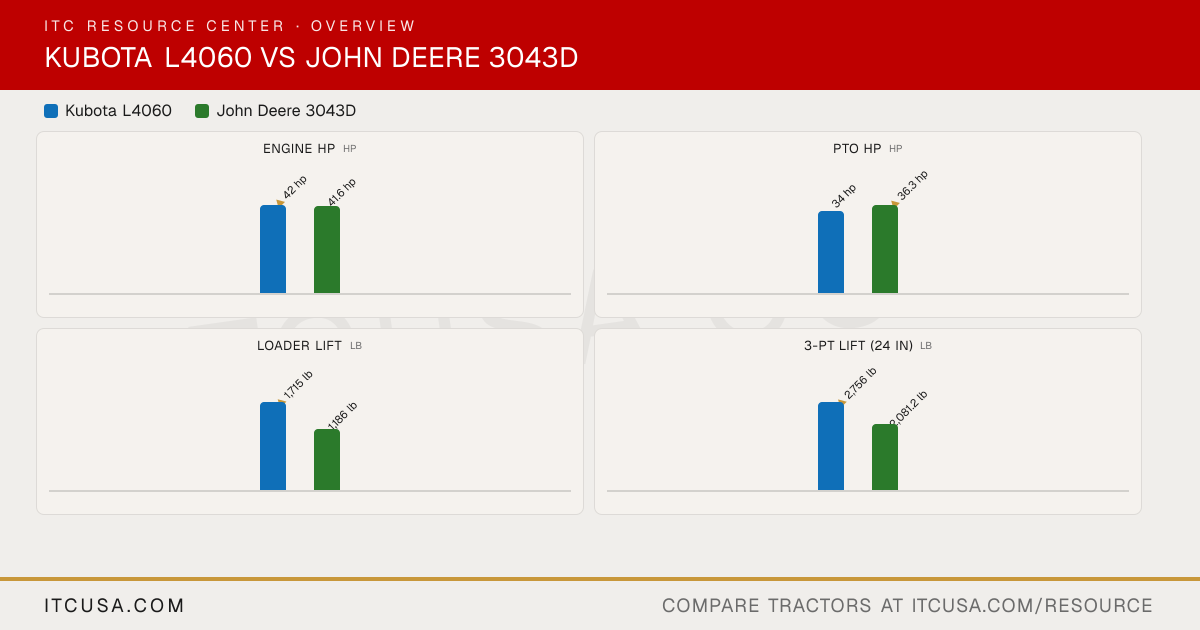

▶ EngineEngine Manufacturer Kubota Yanmar Engine Model V2403-CR-E4-GL2 3TNV86CT-KJPT Engine Type Naturally aspirated, multi-valve, liquid-cooled diesel 4-cycle, inline, water-cooled diesel, turbocharged No. of Cylinders 4 3 Displacement 148.5 in³ 95.8 in³ Rated Engine Speed 2600 rpm 2800 rpm Engine Power (Gross) 42 hp 41.6 hp PTO Power 32.5 hp 36.3 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid Air Cleaner Dry paper, dual element Dry Fuel System Electronic CRS (Common Rail System) Direct injection Alternator 40 A, 12 V 55 A, 12 V ▶ HydraulicsPump Type Tandem pump - gear type Two single-section external gear pumps, one either side of the engine Implement Flow 9.4 gpm 5.9 gpm Steering Flow 4.7 gpm 4.4 gpm Total Hydraulic Flow 14.1 gpm 10.3 gpm Overall Hydraulic Pump Flow 14.1 gpm 10.3 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves None standard (up to 3 optional) None No. of Optional Remote Valves Optional, up to 3: double-acting valve or float detent valve, any position Loader mast mounted SCV (optional); 4th/5th SCV (optional) ▶ Fluid CapacityFuel Tank Capacity 13.5 gal 9.7 gal Coolant Capacity 7.9 qt 1.3 gal Crankcase Capacity 8.7 qt 1.1 gal Transmission / Hydraulic System Capacity 11.4 gal 9.2 gal Front Axle Fluid Capacity 6.9 qt 1.0 gal ▶ PTO & HitchPTO Type Live independent (hydraulic clutch) Transmission driven PTO Rear 540 rpm @ 2476 engine rpm 540 rpm at 2800 rpm engine (rated) Mid-PTO Availability Optional Not Published Category, 3-Point Hitch SAE Category I Category I Hitch Lift Capacity 3,858 lb Not Published Hitch Lift Capacity (at 24”) 2,760 lb 1,670 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Hydrostatic 8F/8R synchromesh shuttle shift gear transmission No. of Speeds 3-Range, 6 speeds (H-DS), infinitely variable in each 8F/8R Max Travel Speed (Forward) 16.8 mph 12.9 mph Max Travel Speed (Reverse) 15.1 mph Not Published Clutch Not Published Single dry traction (mechanical) Differential Lock & Limited Slip Options Rear differential lock, standard Differential lock: Yes ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Power steering Brakes Wet disc type, mechanically activated Wet disk Seat Suspension & Adjustability Deluxe suspension seat with swivel (standard); Air-Ride seat (optional) Not Published Front Axle Type 4WD: Bevel gear front axle, non-adjustable tread spacing 4WD Front Axle Rating Not Published 1,940 lb Drawbar Capacity 1,433 lb 1,102 lb (maximum static vertical load) ▶ Dimensions & ManeuverabilityOverall Width 66.5 in 57.3 in Wheelbase 74.6 in 62 in Ground Clearance 14.2 in 14 in Min. Turn Radius without Brakes 8.9 ft (with brake applied) 6.9 ft (with brake applied) Height to Top of ROPS 97.6 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model n/a (ROPS model) Not Published Overall Length 129.5 in (with 3-point hitch) 111.2 in ▶ WeightTractor Weight (Base) 3,759 lb 2,800 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural; R3 Turf; R4 Industrial R1 Bar, R3 Turf, R4 Industrial R1 Agricultural - Front 8.3-16 7-14 R1 Agricultural - Rear 14.9-24 11.2-24 R3 Turf - Front 27-10.50LL15 27X8.50-15 R3 Turf - Rear 41-18LLx16.1 Not Published R4 Industrial - Front 10-16.5 25X8.50-14 R4 Industrial - Rear 17.5L-24 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System 2-lever mechanical quick coupler (standard); 2-lever hydraulic quick coupler (optional); single-lever hose coupler (optional) Quick-change attachment carrier Loader Model LA805 D160 Loader Lift Height 104.7 in (at pivot pin) 84 in (at pivot pin) Loader Lift Capacity (Full Height) 1,715 lb (at pivot pin) 1,186 lb (at pivot point, maximum height) Loader Breakout Force 2,549 lb 1,704 lbf (at pivot point) ▶ WarrantyWarranty Length & Coverage Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours Basic 2 years or 2,000 hours; powertrain 6 years or 2,000 hours ▶ ITC Company AccessoriesAccessories that fit None tagged yet
