Kubota L4060DT vs John Deere 3043D | Side-by-side comparison | ITC Resource Center
Compare Tractors

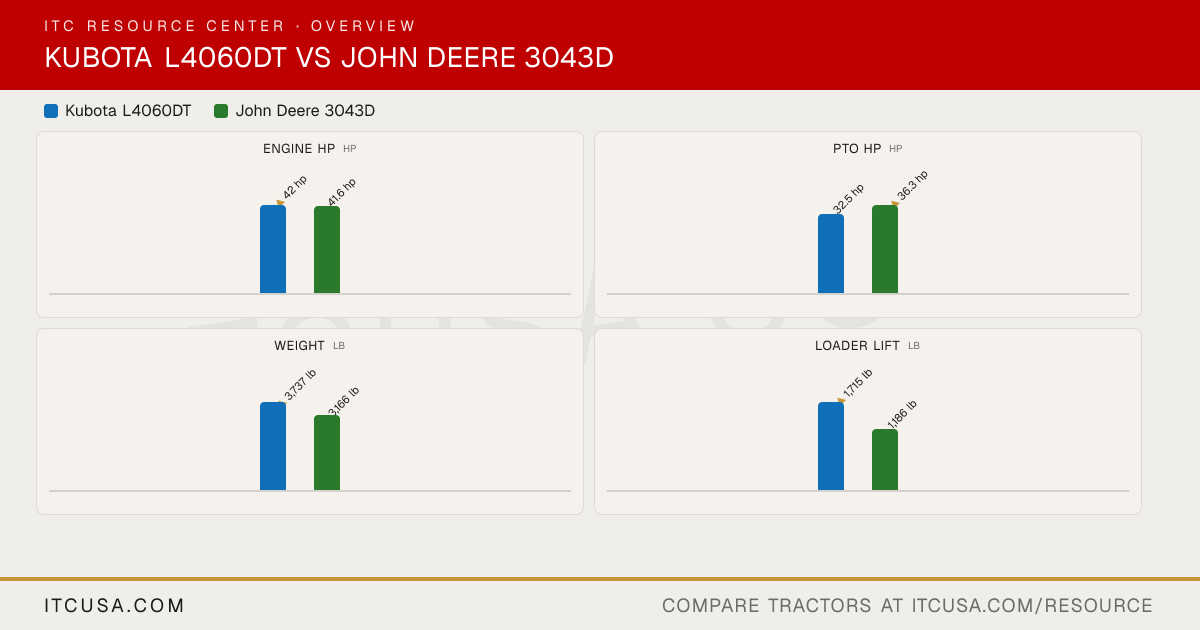

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Two single-section external gear pumps, one each side of engine timing-gear cover
Implement Flow
9.4 gpm
5.0 gpm
Steering Flow
4.7 gpm
3.6 gpm
Total Hydraulic Flow
14.1 gpm
Not Published
Overall Hydraulic Pump Flow
14.1 gpm
10.3 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
None standard (up to 3 optional)
0
No. of Optional Remote Valves
Optional, up to 3 (double-acting valve or float detent valve options, any position)
Up to 2 (optional)
Fuel Tank Capacity
13.5 gal
10.0 gal
Coolant Capacity
7.9 qt
1.3 gal
Crankcase Capacity
8.7 qt
1.1 gal
Transmission / Hydraulic System Capacity
11.4 gal
9.2 gal
Front Axle Fluid Capacity
6.9 qt
1.0 gal
PTO Type
Live independent (hydraulic clutch)
Transmission
PTO Rear
540 rpm @ 2476 engine rpm
540 rpm at 2800 rpm engine (rated)
Mid-PTO Availability
Optional
Not Published
Category, 3-Point Hitch
SAE Category 1
Category 1
Hitch Lift Capacity
3,858 lb
2081.2 lb
Hitch Lift Capacity (at 24”)
2,756 lb
2081.2 lb
Lift Control Type
Position control
Position control
Transmission Type
Hydrostatic
8F/8R synchromesh shuttle shift gear transmission
No. of Speeds
3-Range, 6 speeds (H-DS), infinitely variable in each
8F/8R
Max Travel Speed (Forward)
16.8 mph
12.9 mph
Max Travel Speed (Reverse)
15.1 mph
13.5 mph
Clutch
Not Published
Single dry traction (mechanical)
Differential Lock & Limited Slip Options
Rear differential lock, standard
Differential lock: Yes
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Power steering
Brakes
Wet disc type, mechanically activated
Wet disk
Seat Suspension & Adjustability
Deluxe suspension seat with swivel (standard); Air-Ride seat (optional)
Not Published
Front Axle Type
4WD: Bevel gear front axle, non-adjustable tread spacing
4WD
Front Axle Rating
Not Published
1940 lb
Drawbar Capacity
1,433 lb
1102 lb
Overall Length with 3-Point Hitch
129.5 in
111.2 in
Overall Width
66.5 in
57.3 in
Wheelbase
74.6 in
62.6 in
Ground Clearance
14.2 in
13.0 in
Min. Turn Radius without Brakes
8.9 ft (with brake applied)
6.9 ft (with brakes) (with brake applied)
Height to Top of ROPS
97.6 in
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Applicable
Not Published
Tractor Weight (Base)
3737 lb
3166 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural; R3 Turf; R4 Industrial
R1 Bar, R3 Turf, R4 Industrial
R1 Agricultural - Front
8.3-16
7-14
R1 Agricultural - Rear
14.9-24
11.2-24
R3 Turf - Front
27X10.50LL-15
27X8.50-15
R3 Turf - Rear
41X18LL-16.1
41X14-20
R4 Industrial - Front
10-16.5
25X8.50-14
R4 Industrial - Rear
17.5L-24
15-19.5
Quick Attach Loader System
Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Quick-change attachment carrier
Loader Model
LA805
D160
Loader Lift Height
104.7 in
84.0 in
Loader Lift Capacity (Full Height)
1715 lb
1186 lb
Loader Breakout Force
2549 lb (19.7 in forward of pivot pin)
1704 lb
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
