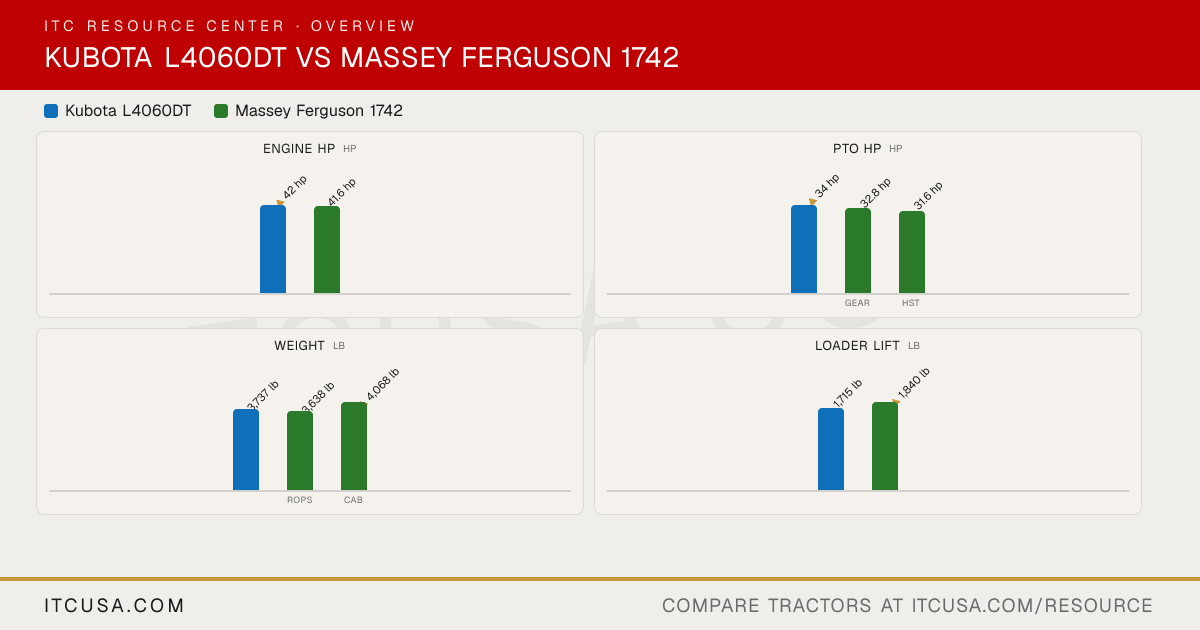

▶ EngineEngine Manufacturer Kubota Mitsubishi Engine Model V2403-CR-E4-GL1 K38 Engine Type Naturally aspirated, multi-valve, liquid-cooled diesel 3-cylinder turbocharged and intercooled diesel No. of Cylinders 4 3 Displacement 148.5 in³ 101 in³ Rated Engine Speed 2700 rpm 2500 rpm Engine Power (Gross) 42 hp 41.6 hp PTO Power 34 hp Gear: 32.8 hp; HST: 31.6 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dry paper, dual element Not Published Fuel System Electronic CRS (Common Rail System) Common-rail, direct injection, electronic engine management Alternator 40 A, 12 V Not Published ▶ HydraulicsPump Type Tandem pump - gear type Engine-driven gear-type pump Implement Flow 9.8 gpm 11.6 gpm Steering Flow 4.9 gpm 6.8 gpm Total Hydraulic Flow 14.7 gpm Not Published Overall Hydraulic Pump Flow 14.7 gpm Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published 11.6 gpm No. of Standard Remote Valves None standard (up to 3 optional) 1 No. of Optional Remote Valves Optional, up to 3: double-acting valve or float detent valve, any position Up to 3 ▶ Fluid CapacityFuel Tank Capacity 13.5 gal 14.5 gal Coolant Capacity 7.9 qt Not Published Crankcase Capacity 8.7 qt Not Published Transmission / Hydraulic System Capacity 11.4 gal Not Published Front Axle Fluid Capacity 6.9 qt Not Published ▶ PTO & HitchPTO Type Live independent (hydraulic clutch) Independent, electro-hydraulically engaged PTO Rear 540 rpm @ 2550 engine rpm 540 rpm (1-3/8 in 6-spline) Mid-PTO Availability Optional Optional, 2000 rpm Category, 3-Point Hitch SAE Category I Category I Hitch Lift Capacity 3,858 lb Not Published Hitch Lift Capacity (at 24”) 2,760 lb 2,535 lb Lift Control Type Position control Position control; draft control optional ▶ Transmission & DrivetrainTransmission Type Gear 12x12 power shuttle (4 gears, 3 ranges) or 3-range electronic Servo-HST No. of Speeds 8Fx8R Power shuttle: 12F / 12R; Servo-HST: 3-range infinite Max Travel Speed (Forward) 16.0 mph Not Published Max Travel Speed (Reverse) 15.2 mph Not Published Clutch Not Published Wet multi-disc (power shuttle) Differential Lock & Limited Slip Options Rear differential lock, standard Mechanical engagement via heel pedal ▶ Chassis, Steering & ControlsFrame Type Not Published Drop-axle rear with bull gear final drives Steering Hydrostatic power steering Power steering, tilt steering wheel Brakes Wet disc type, mechanically activated Internal wet disc brakes, independent foot pedals Seat Suspension & Adjustability Deluxe suspension seat with swivel (standard); Air-Ride seat (optional) Suspended seat with armrests and seat belt (vinyl on ROPS, cloth on cab) Front Axle Type 4WD: Bevel gear front axle, non-adjustable tread spacing Cast-steel 4WD front axle, center driveline, bevel-gear final drives Front Axle Rating Not Published Not Published Drawbar Capacity 1,433 lb Not Published ▶ Dimensions & ManeuverabilityOverall Width 66.5 in 64.2 in Wheelbase 74.6 in 71.1 in Ground Clearance 14.2 in Not Published Min. Turn Radius without Brakes 8.9 ft (with brake applied) Not Published Height to Top of ROPS 97.6 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Applicable 91.3 in Overall Length 129.5 in (with 3-point hitch) 130.7 in ▶ WeightTractor Weight (Base) 3,737 lb ROPS: 3,638 lb; Cab: 4,068 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural; R3 Turf; R4 Industrial Ag: 8-16 front, 12.4-24 rear (13.6-24 optional); turf: 27x8.50-15 front, 41x14.00-20 rear; industrial: 10-16.5 front, 17.5L-24 rear (also 250/75R16 front, 400/80R24 rear) R1 Agricultural - Front 8.3-16 8-16 R1 Agricultural - Rear 14.9-24 12.4-24 (13.6-24 optional) R3 Turf - Front 27-10.50LL15 27x8.50-15 R3 Turf - Rear 41-18LLx16.1 41x14.00-20 R4 Industrial - Front 10-16.5 10-16.5 or 250/75R16 R4 Industrial - Rear 17.5L-24 17.5L-24 or 400/80R24 ▶ Loader & AttachmentsQuick Attach Loader System 2-lever mechanical quick coupler (standard); 2-lever hydraulic quick coupler (optional); single-lever hose coupler (optional) DL125: universal skid steer or exclusive compact quick-attach implement tool carrier Loader Model LA805 DL125 Loader Lift Height 104.7 in (at pivot pin) DL125: 102.4 in (at pivot pin) Loader Lift Capacity (Full Height) 1,715 lb (at pivot pin) DL125: 1,840 lb (at pivot pin, full height) Loader Breakout Force 2,549 lb DL125: 2,190 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Not Published 5-year powertrain warranty ▶ ITC Company AccessoriesAccessories that fit None tagged yet
