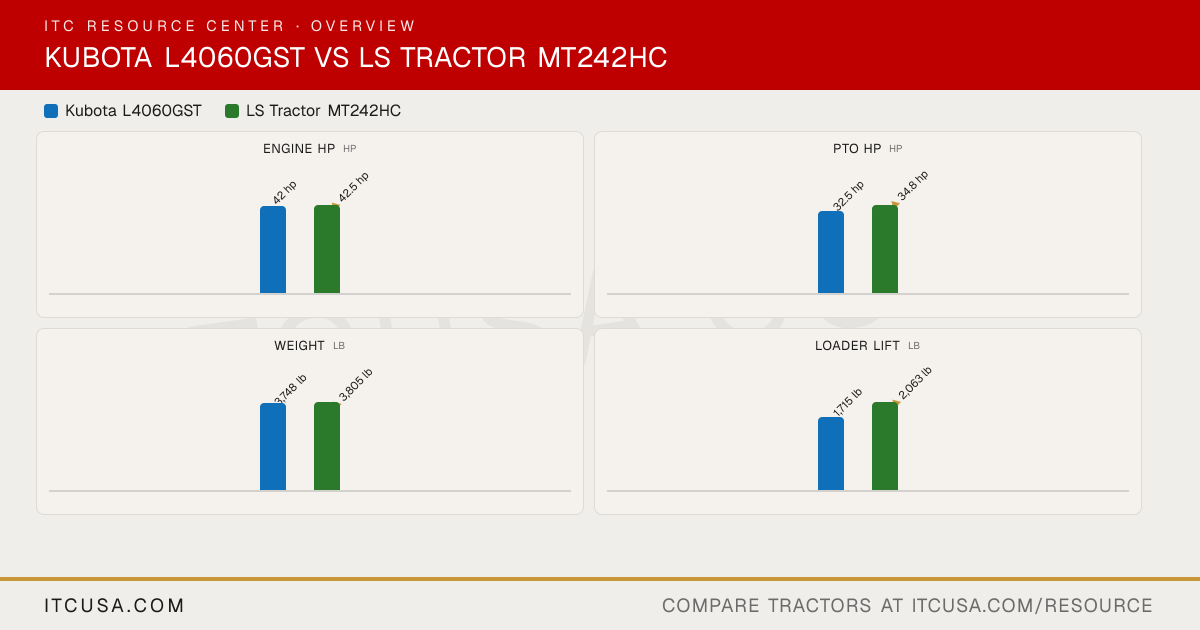

Kubota L4060GST vs LS Tractor MT242HC | Side-by-side comparison | ITC Resource Center
Compare Tractors
See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Optional, up to 3 (double-acting valve or float detent valve options, any position)
Not Published
Fuel Tank Capacity
13.5 gal
11.4 gal
Coolant Capacity
7.9 qt
Not Published
Crankcase Capacity
8.7 qt
Not Published
Transmission / Hydraulic System Capacity
11.4 gal
Not Published
Front Axle Fluid Capacity
6.9 qt
Not Published
PTO Type
Live independent (hydraulic clutch)
Independent
PTO Rear
540 rpm @ 2476 engine rpm
Standard (540 rpm)
Mid-PTO Availability
Optional
Available (option)
Category, 3-Point Hitch
SAE Category 1
Category I
Hitch Lift Capacity
3,858 lb
1,808 lb
Hitch Lift Capacity (at 24”)
2,756 lb
1433 lb
Lift Control Type
Position control
Position control
Transmission Type
Hydrostatic
HST
No. of Speeds
3-Range, 6 speeds (H-DS), infinitely variable in each
3 ranges
Max Travel Speed (Forward)
16.8 mph
Not Published
Max Travel Speed (Reverse)
15.1 mph
Not Published
Clutch
Not Published
Not Published
Differential Lock & Limited Slip Options
Rear differential lock, standard
Mechanical differential lock (pedal)
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic power steering
Brakes
Wet disc type, mechanically activated
Wet, multi-disc
Seat Suspension & Adjustability
Deluxe suspension seat with swivel (standard); Air-Ride seat (optional)
Not Published
Front Axle Type
4WD: Bevel gear front axle, non-adjustable tread spacing
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1,433 lb
Not Published
Overall Length with 3-Point Hitch
129.5 in
125 in
Overall Width
66.5 in
66 in
Wheelbase
74.6 in
74 in
Ground Clearance
14.2 in
Not Published
Min. Turn Radius without Brakes
8.9 ft (with brake applied)
11.8 ft (3.6 m)
Height to Top of ROPS
97.6 in
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Applicable
90 in
Tractor Weight (Base)
3748 lb
3,805 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural; R3 Turf; R4 Industrial
R1 agricultural, R4 industrial, R3 turf and VT (versa turf); VT same size as R4
R1 Agricultural - Front
8.3-16
7-14
R1 Agricultural - Rear
14.9-24
11.2-24
R3 Turf - Front
27X10.50LL-15
25x8.50-14
R3 Turf - Rear
41X18LL-16.1
41x14.00-20
R4 Industrial - Front
10-16.5
27x8.50-15
R4 Industrial - Rear
17.5L-24
43x16.00-20
Quick Attach Loader System
Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
LL3003: ISO 24410 Quick Attaching Coupler
Loader Model
LA805
LL3003, LL3004
Loader Lift Height
104.7 in
LL3003, LL3004: 94.3 in
Loader Lift Capacity (Full Height)
1715 lb
LL3003, LL3004: 2,063 lb
Loader Breakout Force
2549 lb (19.7 in forward of pivot pin)
LL3003, LL3004: 3,723 lb
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
