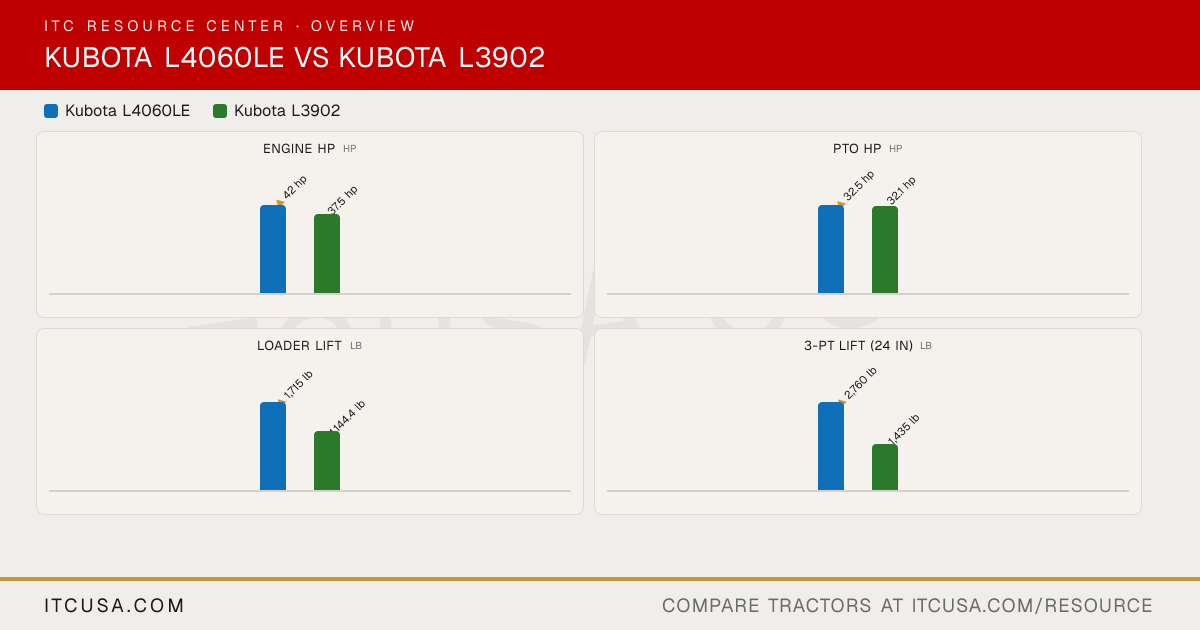

▶ EngineEngine Manufacturer Kubota Kubota Engine Model Not Published D1803-CR-E5 Engine Type Direct injection, vertical, water-cooled 4-cycle diesel; natural aspiration with EGR Direct injection, vertical, water-cooled 4-cycle, diesel No. of Cylinders 4 3 Displacement 148.5 in³ 111.4 in³ Rated Engine Speed 2600 rpm 2700 rpm Engine Power (Gross) 42 hp 37.5 hp PTO Power 32.5 hp 30.3 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Water-cooled Water-cooled Air Cleaner Dry paper, dual element Dry type, single element Fuel System Electronic CRS (Common Rail System) Direct injection Alternator 40 A, 12 V 45 A, 12 V ▶ HydraulicsPump Type Tandem pump - gear type Not Published Implement Flow 9.4 gpm 6.3 gpm Steering Flow 4.7 gpm 3.8 gpm Total Hydraulic Flow 14.1 gpm 10.1 gpm (6.3 + 3.8, computed) Overall Hydraulic Pump Flow 14.1 gpm 10.1 gpm (6.3 + 3.8, computed) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves None standard (up to 3 optional) Not Published No. of Optional Remote Valves Optional, up to 3 Not Published ▶ Fluid CapacityFuel Tank Capacity 13.5 gal 11.1 gal Coolant Capacity 7.9 qt 6.3 qt Crankcase Capacity 8.7 qt 7.1 qt Transmission / Hydraulic System Capacity 11.4 gal 6.9 gal Front Axle Fluid Capacity 6.9 qt 4.8 qt ▶ PTO & HitchPTO Type Independent Live independent PTO with hydraulic clutch PTO Rear 1 speed: 540 rpm 540 rpm Mid-PTO Availability Optional Not Published Category, 3-Point Hitch Category I SAE Category I Hitch Lift Capacity 3,858 lb 1,998 lb Hitch Lift Capacity (at 24”) 2,760 lb 1,435 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type Hydrostatic (HST Plus) Hydrostatic transmission (3-range) No. of Speeds 3 ranges 3-range Max Travel Speed (Forward) 16.8 mph 14.1 mph Max Travel Speed (Reverse) 15.1 mph 12.7 mph Clutch HST-LE (4WD, ROPS), HSTC-LE (4WD, CAB): N/A Not Applicable Differential Lock & Limited Slip Options Rear differential lock, standard Rear differential lock, pedal operated ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Integral type power steering Brakes Wet disc type Mechanical, wet disc type Seat Suspension & Adjustability Deluxe suspension seat (standard); Air-Ride seat (optional) Suspension seat with fore/aft travel adjustment and suspension tension adjustment Front Axle Type 4WD: Bevel gear front axle, non-adjustable tread spacing Cast-iron front axle Front Axle Rating Not Published Not Published Drawbar Capacity 1,433 lb 730 lb ▶ Dimensions & ManeuverabilityOverall Width 66.5 in 55.1 in Wheelbase 74.6 in 63.4 in Ground Clearance 14.2 in 13.4 in Min. Turn Radius without Brakes 8.9 ft (with brake applied) 8.2 ft (with brake applied) Height to Top of ROPS 97.6 in 91.7 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model n/a (ROPS model) Not Published Overall Length 121.5 in (without 3-point hitch) 108.7 in (without 3-point hitch) ▶ WeightTractor Weight (Base) 3,748 lb 2,778 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Agricultural, Turf or Industrial tires (options) Agricultural; Turf; Industrial (R4) R1 Agricultural - Front 8.3-16 7.2-16 R1 Agricultural - Rear 14.9-24 11.2-24 R3 Turf - Front 27X10.50LL-15 25X8.50-14 R3 Turf - Rear 41X18LL-16.1 13.6-16 R4 Industrial - Front 10-16.5 27X8.50-15 R4 Industrial - Rear 17.5L-24 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System LA805: 2-lever quick coupler (standard); hydraulic 2-lever quick coupler (optional); single lever hose quick coupler (optional) Front Loader (LA526 - 2 Lever Quick Coupler (OPT)) Loader Model LA805 LA526 Loader Lift Height 104.7 in (at pivot pin) 94.8 in (at pivot pin) Loader Lift Capacity (Full Height) 1,715 lb (at pivot pin) 1,144 lb (at pivot pin, max. height) Loader Breakout Force 2,549 lb Not Published ▶ WarrantyWarranty Length & Coverage Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours Basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: powertrain 36 months or 2,000 hours ▶ ITC Company AccessoriesAccessories that fit
