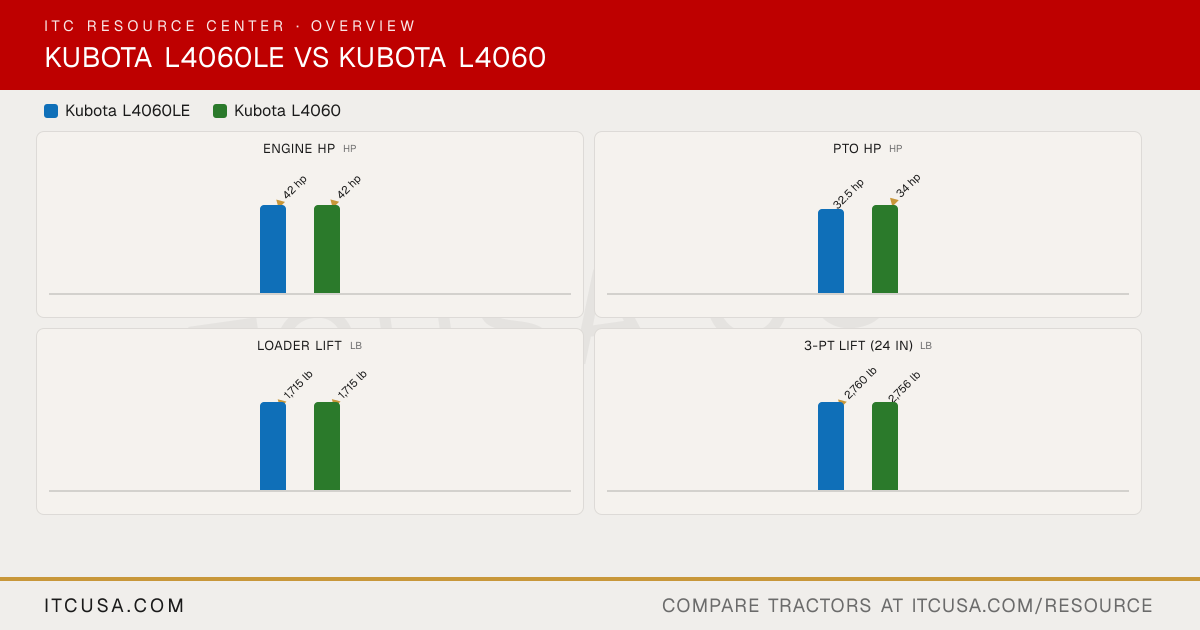

Kubota L4060LE vs Kubota L4060 | Side-by-side comparison | ITC Resource Center
Compare Tractors
See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Deluxe suspension seat with swivel (standard); Air-Ride seat (optional)
Front Axle Type
4WD: Bevel gear front axle, non-adjustable tread spacing
4WD: Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1,433 lb
1,433 lb
Overall Length with 3-Point Hitch
121.5 in (without 3-point hitch)
129.5 in
Overall Width
66.5 in
66.5 in
Wheelbase
74.6 in
74.6 in
Ground Clearance
14.2 in
14.2 in
Min. Turn Radius without Brakes
8.9 ft (with brake applied)
8.9 ft (with brake applied)
Height to Top of ROPS
HST-LE (4WD, ROPS): 97.6 in; HSTC-LE (4WD, CAB): Not Applicable
97.6 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
91.1 in (HSTC-LE cab)
Not Applicable
Tractor Weight (Base)
3748 lb (HST-LE ROPS); 4134 lb (HSTC-LE cab)
3759 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
Agricultural, Turf or Industrial tires (options)
R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front
8.3-16
8.3-16
R1 Agricultural - Rear
14.9-24
14.9-24
R3 Turf - Front
27X10.50LL-15
27X10.50LL-15
R3 Turf - Rear
41X18LL-16.1
41X18LL-16.1
R4 Industrial - Front
10-16.5
10-16.5
R4 Industrial - Rear
17.5L-24
17.5L-24
Quick Attach Loader System
LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Model
LA805
LA805
Loader Lift Height
104.7 in
104.7 in
Loader Lift Capacity (Full Height)
1715 lb
1715 lb
Loader Breakout Force
2549 lb (19.7 in forward of pivot pin)
2549 lb (19.7 in forward of pivot pin)
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
