Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

KubotaL4701

n/a

TYMT454

Comparison loaded for 2 tractors.

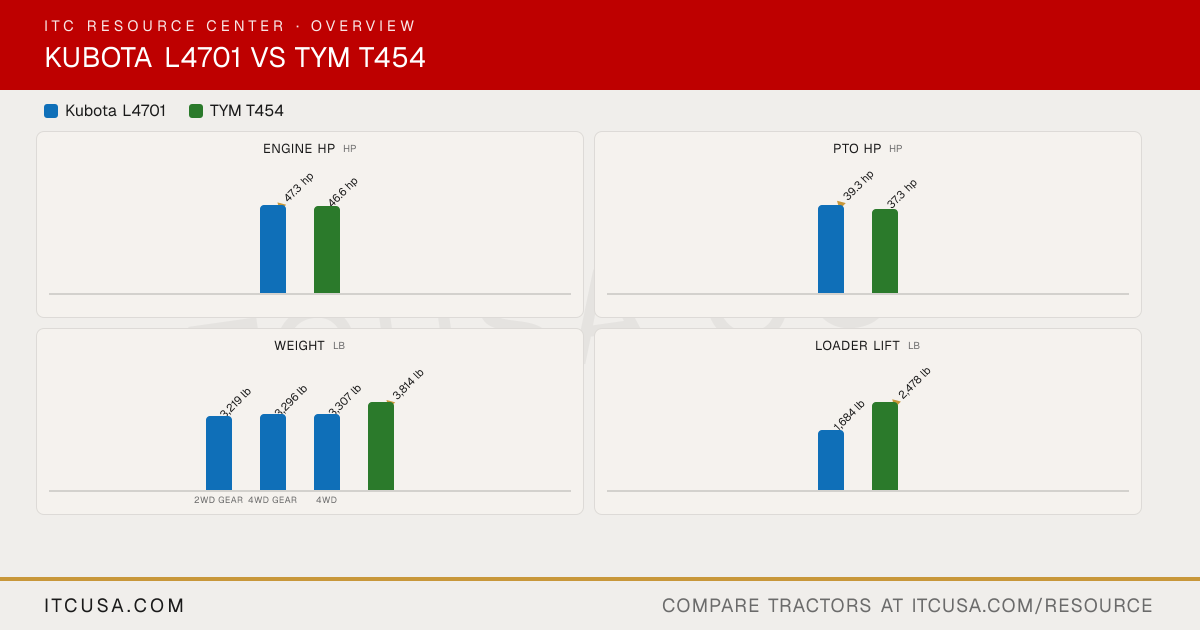

The headline numbers at a glance.

Kubota L4701TYM T454

Engine HPhp

▲47.3 hp

46.6 hp

PTO HPhp

▲39.3 hp

37.3 hp

Weightlb

3,219 lb

3,296 lb

3,307 lb

▲3,814 lb

2WD gear4WD gear4WD

Loader Liftlb

1,684 lb

▲2,478 lb

3-Pt Lift (24 in)lb

2,310 lb

▲2,945 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL4701	TYMT454


Engine Manufacturer	Kubota	Yanmar
Engine Model	V2403-CR-E4-LB1	4TNV88CR
Engine Type	Liquid-cooled, 4-cylinder, 4-cycle, multi-valve diesel, naturally aspirated, common rail direct injection	4-cylinder, naturally aspirated, liquid-cooled diesel
No. of Cylinders	4	4
Displacement	148.5 in³	133.6 in³
Rated Engine Speed	2600 rpm	2800 rpm
Engine Power (Gross)	47.3 hp	46.6 hp
PTO Power	F (2WD gear), DT (4WD gear): 39.3 hp; HST (4WD): 37.8 hp	37.3 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled, water with pressurized radiator	Liquid-cooled
Air Cleaner	Dry paper dual element	Dual dry
Fuel System	Common rail (CRS) direct injection, electronic fuel injection	CRDI
Alternator	40 A, 12 V	70 A, 12 V

Pump Type	Open center tandem pump, gear type	Dual gear pump
Implement Flow	7.8 gpm	9.5 gpm
Steering Flow	4.7 gpm	4.6 gpm
Total Hydraulic Flow	12.5 gpm	14.1 gpm
Overall Hydraulic Pump Flow	12.5 gpm	14.1 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Up to 3 (self canceling detent valve or float detent valve options)	Not Published

Fuel Tank Capacity	13.5 gal	15.9 gal
Coolant Capacity	6.9 qt	9 qt
Crankcase Capacity	8.7 qt	7.1 qt
Transmission / Hydraulic System Capacity	10.6 gal	9.2 gal
Front Axle Fluid Capacity	6.9 qt	10.5 qt

PTO Type	Live independent PTO with hydraulic clutch	Independent
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	No mid-PTO offered	Optional (Mid-PTO kit)
Category, 3-Point Hitch	Category I	Category I
Hitch Lift Capacity	2870 lb	3,314 lb
Hitch Lift Capacity (at 24”)	2310 lb	2,945 lb
Lift Control Type	Position control (draft control optional)	Position/Draft

Transmission Type	F (2WD gear), DT (4WD gear): Synchronized shuttle gear transmission, 8F/8R; HST (4WD): Hydrostatic transmission, 3-range	Synchro-shuttle
No. of Speeds	F (2WD gear), DT (4WD gear): 8F/8R; HST (4WD): 3-range	F16 x R16
Max Travel Speed (Forward)	F (2WD gear), DT (4WD gear): 14.9 mph; HST (4WD): 15.8 mph	18.4 mph
Max Travel Speed (Reverse)	F (2WD gear), DT (4WD gear): 14.3 mph; HST (4WD): 14.2 mph	16.07 mph
Clutch	F (2WD gear), DT (4WD gear): Dry type single stage; HST (4WD): No transmission clutch	Dry single plate
Differential Lock & Limited Slip Options	Rear differential lock standard	Rear differential lock, pedal operated

Frame Type	Two-post foldable ROPS (factory certified) with retractable seat belt	Not Published
Steering	Hydrostatic power steering	Hydrostatic
Brakes	Mechanical wet disc type, pedals can be locked together	Wet disc
Seat Suspension & Adjustability	Not Published	Not Published
Front Axle Type	F (2WD gear): Tubular steel, non-adjustable tread spacing; DT (4WD gear), HST (4WD): Bevel gear front axle, non-adjustable tread spacing	4WD, center-pivot reverse Elliot type
Front Axle Rating	F (2WD gear): 3300 lb (at 50.4 in tread); DT (4WD gear), HST (4WD): 3300 lb (at 45.5 in tread)	Not Published
Drawbar Capacity	1430 lb	Not Published

Overall Length with 3-Point Hitch	F (2WD gear): 130.3 in; DT (4WD gear), HST (4WD): 127.4 in	141.3 in
Overall Width	62.4 in	63.8 in
Wheelbase	F (2WD gear): 72.8 in; DT (4WD gear), HST (4WD): 72.6 in	76.2 in
Ground Clearance	15.2 in	13.8 in
Min. Turn Radius without Brakes	F (2WD gear): 10.2 ft; DT (4WD gear), HST (4WD): 11.5 ft	150.4 in
Height to Top of ROPS	91.7 in	102.1 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	F (2WD gear): 3219 lb; DT (4WD gear): 3296 lb; HST (4WD): 3307 lb	3,814 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural (standard); R3 Turf; R4 Industrial (4WD)	R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front	F (2WD gear): 7.5L-15 (6-16 optional); DT (4WD gear), HST (4WD): 8.3-16	Farm Specialist 9.5-16 NHS TL 6PR
R1 Agricultural - Rear	14.9-24	Farm Specialist 13.6-26 NHS TL 6PR
R3 Turf - Front	27x8.5-15 (2WD and 4WD; 27x10.5-15 optional on 4WD)	Multi-Trac CS 27x10.50-15 NHS TL 4PR
R3 Turf - Rear	44x18-20	Multi-Trac CS 44x18.00-20 NHS TL 4PR
R4 Industrial - Front	10-16.5 (4WD)	Trac Chief 12-16.5 NHS TL 6PR
R4 Industrial - Rear	17.5L-24 (4WD)	Xtra Grip 17.5-24 NHS TL 6PR

Quick Attach Loader System	2-Lever Quick Coupler, no tools required to attach and detach loader	TX55: Quick attach mechanism
Loader Model	LA765	TX55
Loader Lift Height	LA765: 105.2 in	TX55: 109.1 in
Loader Lift Capacity (Full Height)	LA765: 1684 lb	TX55: 2,478 lb
Loader Breakout Force	LA765: 3153 lbf	TX55: 4,938 lb

Warranty Length & Coverage	Not Published	Bumper-to-bumper: 24 months or 2,000 hours (parts and labor); powertrain: 72 months or 3,000 hours for non-commercial use (20 to 70 engine hp); front-end loaders and backhoes: 12 months

Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection TYM T454 T554 Rural King RK55 Brush Screen Insert $249.99
