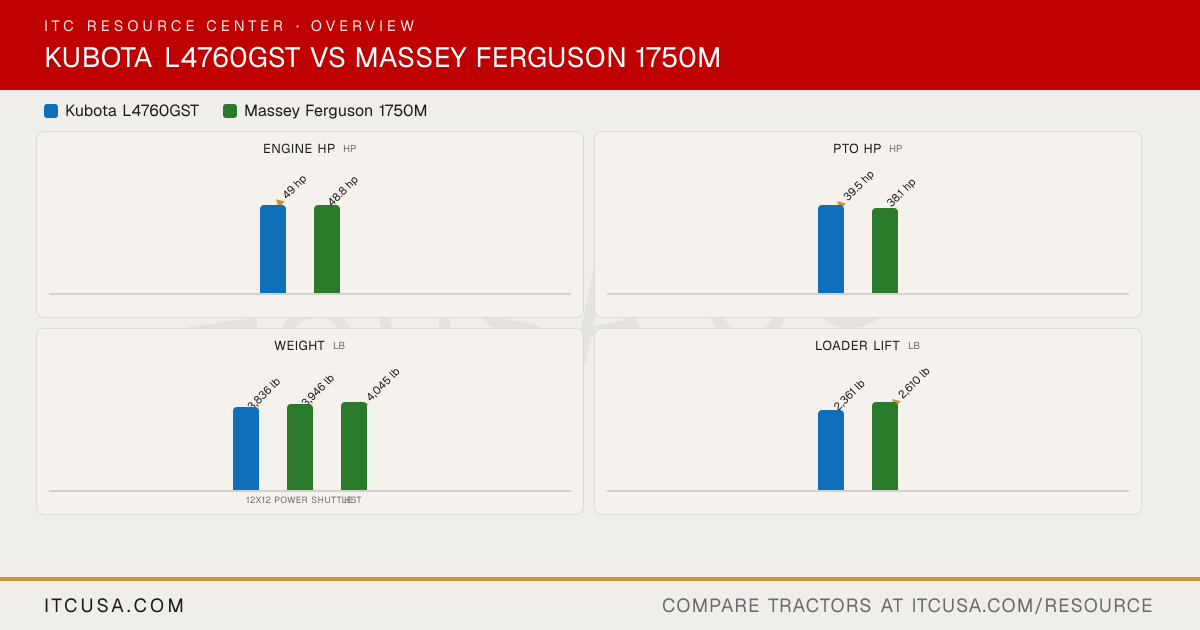

▶ EngineEngine Manufacturer Kubota Shibaura Engine Model V2403-CR-E4-GL4 Shibaura N4LDI-T Engine Type Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated 4-cylinder turbocharged intercooled diesel, liquid-cooled No. of Cylinders 4 4 Displacement 148.5 in³ 135.2 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 49 hp 48.8 hp PTO Power 39.5 hp 38.1 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dry paper, dual element Dry Fuel System Electronic CRS (Common Rail System) Common rail direct injection Alternator 40 A, 12 V Not Published ▶ HydraulicsPump Type Tandem pump - gear type Engine-driven gear-type pump Implement Flow 9.4 gpm 12.7 gpm Steering Flow 4.7 gpm Not Published Total Hydraulic Flow 14.1 gpm Not Published Overall Hydraulic Pump Flow 14.1 gpm 12.6 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published 12.1 gpm No. of Standard Remote Valves None standard (up to 3 optional) 2 No. of Optional Remote Valves Optional, up to 3 (double-acting valve or float detent valve options, any position) Up to 3 ▶ Fluid CapacityFuel Tank Capacity 13.5 gal 14.0 gal Coolant Capacity 8.7 qt 7.08 qt Crankcase Capacity 8.7 qt 6.87 qt Transmission / Hydraulic System Capacity 11.4 gal 12x12 Power Shuttle: 10.04 gal; HST: 9.25 gal Front Axle Fluid Capacity 8.9 qt 9.0 qt ▶ PTO & HitchPTO Type Live independent (hydraulic clutch) Independent, with soft-start feature PTO Rear 540 rpm @ 2475 engine rpm 540 rpm (1-3/8 in 6-spline) Mid-PTO Availability Optional Optional, 2,000 rpm Category, 3-Point Hitch SAE Category 1 Category I with extendable ball ends Hitch Lift Capacity 3,858 lb 3,483 lb Hitch Lift Capacity (at 24”) 2,756 lb 3,086 lb Lift Control Type Position control Position and draft control ▶ Transmission & DrivetrainTransmission Type Hydrostatic 12 x 12 power shuttle or 3-range hydrostatic No. of Speeds 3-range, 6 speeds (H-DS), infinitely variable in each 12x12 Power Shuttle: 12F / 12R; HST: 3-range infinite Max Travel Speed (Forward) 16.8 mph Not Published Max Travel Speed (Reverse) 15.1 mph Not Published Clutch Not Published Single stage dry type Differential Lock & Limited Slip Options Rear differential lock, standard Mechanical engagement via right side heel pedal ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Power steering Brakes Wet disc type, mechanically activated Internal wet disc brakes, individual control via independent foot pedals Seat Suspension & Adjustability Deluxe suspension seat with swivel (standard); Air-Ride seat (optional) Deluxe suspended seat with armrests and seatbelts (vinyl seat on ROPS, cloth seat on cab), tilt steering Front Axle Type 4WD: Bevel gear front axle, non-adjustable tread spacing Cast steel 4WD front axle with center drive line and bevel-gear final drives Front Axle Rating Not Published Not Published Drawbar Capacity 1,433 lb Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 129.5 in 132.3 in Overall Width 66.5 in 65.4 in Wheelbase 74.6 in 77.9 in Ground Clearance 14.4 in 14.8 in Min. Turn Radius without Brakes 8.9 ft (with brake applied) Not Published Height to Top of ROPS 97.6 in 102.4 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Applicable 92.9 in ▶ WeightTractor Weight (Base) 3836 lb 12x12 Power Shuttle: 3,946 lb; HST: 4,045 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural; R3 Turf (Option 1) or R3 LSW Turf (Option 2); R4 Industrial R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front 8.3-16 9.5x16 R1 Agricultural - Rear 14.9-24 13.6x28 R3 Turf - Front 29x12.50-15 27x10.50-15 R3 Turf - Rear 44x18-20 44x18.00-20 R4 Industrial - Front 10-16.5 10-16.5 R4 Industrial - Rear 17.5L-24 17.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional) DL135: Skid steer quick attach Loader Model LA1055 DL135 Loader Lift Height 112.7 in DL135: 111 in Loader Lift Capacity (Full Height) 2361 lb DL135: 2,610 lb Loader Breakout Force 3171 lb (19.7 in forward of pivot pin) DL135: 4,000 lb ▶ WarrantyWarranty Length & Coverage Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. 5-year powertrain warranty ▶ ITC Company AccessoriesAccessories that fit None tagged yet
