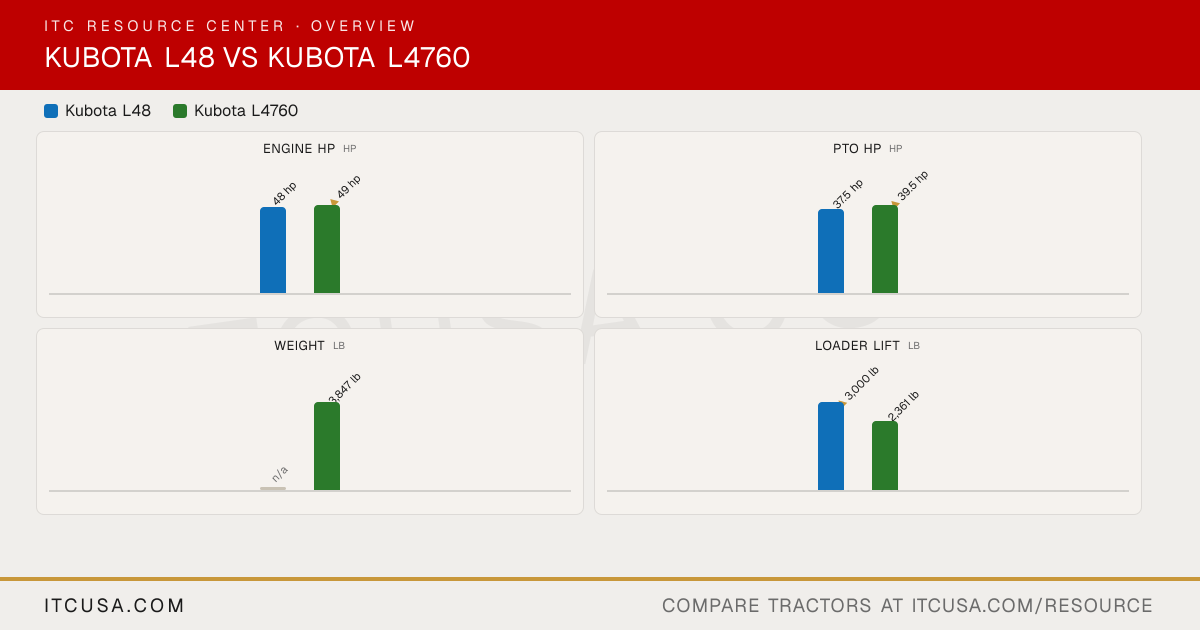

▶ EngineEngine Manufacturer Kubota Kubota Engine Model Not Published V2403-CR-E4-GL5 Engine Type 4-cylinder, indirect injection, liquid-cooled diesel Naturally aspirated, multi-valve, liquid-cooled diesel No. of Cylinders 4 4 Displacement 148.5 in³ 148.5 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 48 hp 49 hp PTO Power 37.5 hp 39.5 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Not Published Dry paper, dual element Fuel System Not Published Electronic CRS (Common Rail System) Alternator Not Published 40 A, 12 V ▶ HydraulicsPump Type Not Published Tandem pump - gear type Implement Flow Not Published 9.4 gpm Steering Flow Not Published 4.7 gpm Total Hydraulic Flow 25.9 gpm 14.1 gpm Overall Hydraulic Pump Flow 25.9 gpm 14.1 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published None standard (up to 3 optional) No. of Optional Remote Valves Not Published Optional, up to 3: double-acting valve or float detent valve, any position ▶ Fluid CapacityFuel Tank Capacity 13.2 gal 13.5 gal Coolant Capacity Not Published 8.7 qt Crankcase Capacity Not Published 8.7 qt Transmission / Hydraulic System Capacity Not Published 11.4 gal Front Axle Fluid Capacity Not Published 8.9 qt ▶ PTO & HitchPTO Type Live-continuous running Live independent (hydraulic clutch) PTO Rear 540 rpm 540 rpm @ 2475 engine rpm Mid-PTO Availability Not Published Optional Category, 3-Point Hitch Category I (standard) SAE Category I Hitch Lift Capacity Not Published 3,858 lb Hitch Lift Capacity (at 24”) 3,310 lb 2,756 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type "Feather Step" hydrostatic transmission, 3-range Hydrostatic No. of Speeds 3-range (infinite) 3-range, 6 speeds (H-DS), infinitely variable in each Max Travel Speed (Forward) 15.3 mph 16.8 mph Max Travel Speed (Reverse) Not Published 15.1 mph Clutch Dry, single Not Published Differential Lock & Limited Slip Options Not Published Rear differential lock, standard ▶ Chassis, Steering & ControlsFrame Type Four-post ROPS/FOPS standard Not Published Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet disc Wet disc type, mechanically activated Seat Suspension & Adjustability Movable seat, spins in place; tilt steering standard Deluxe suspension seat with swivel; Air-Ride seat (optional) Front Axle Type Not Published 4WD: Bevel gear front axle, non-adjustable tread spacing Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 1,433 lb ▶ Dimensions & ManeuverabilityOverall Width 74.5 in 66.5 in Wheelbase 74.0 in 74.6 in Ground Clearance Not Published 14.4 in Min. Turn Radius without Brakes 10.5 ft 8.9 ft (with brake applied) Height to Top of ROPS Not Published 97.6 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Applicable Overall Length Not Published 129.5 in (with 3-point hitch) ▶ WeightTractor Weight (Base) Not Published 3,847 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Industrial (R4): 10-16.5 R4 front, 17.5L-24 R4 rear R1 Agricultural; R3 Turf (Option 1) or R3 LSW Turf (Option 2); R4 Industrial R1 Agricultural - Front Not Published 8.3-16 R1 Agricultural - Rear Not Published 14.9-24 R3 Turf - Front Not Published 29x12.50-15 R3 Turf - Rear Not Published 44x18-20 R4 Industrial - Front 10-16.5 R4 10-16.5 R4 Industrial - Rear 17.5L-24 R4 17.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published 2-lever mechanical quick coupler (standard); 2-lever hydraulic quick coupler (optional); single-lever hose coupler (optional) Loader Model TL1150 LA1105 Loader Lift Height TL1150: 116.1 in (at pivot pin) Not Published Loader Lift Capacity (Full Height) TL1150: 3,000 lb (at pivot pin) Not Published Loader Breakout Force TL1150: 4,375 lbf (at pivot pin) LA555: 2,030 lb; LA805: 2,549 lb; LA1055: 3,171 lb ▶ WarrantyWarranty Length & Coverage Not Published Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours ▶ ITC Company AccessoriesAccessories that fit None tagged yet
