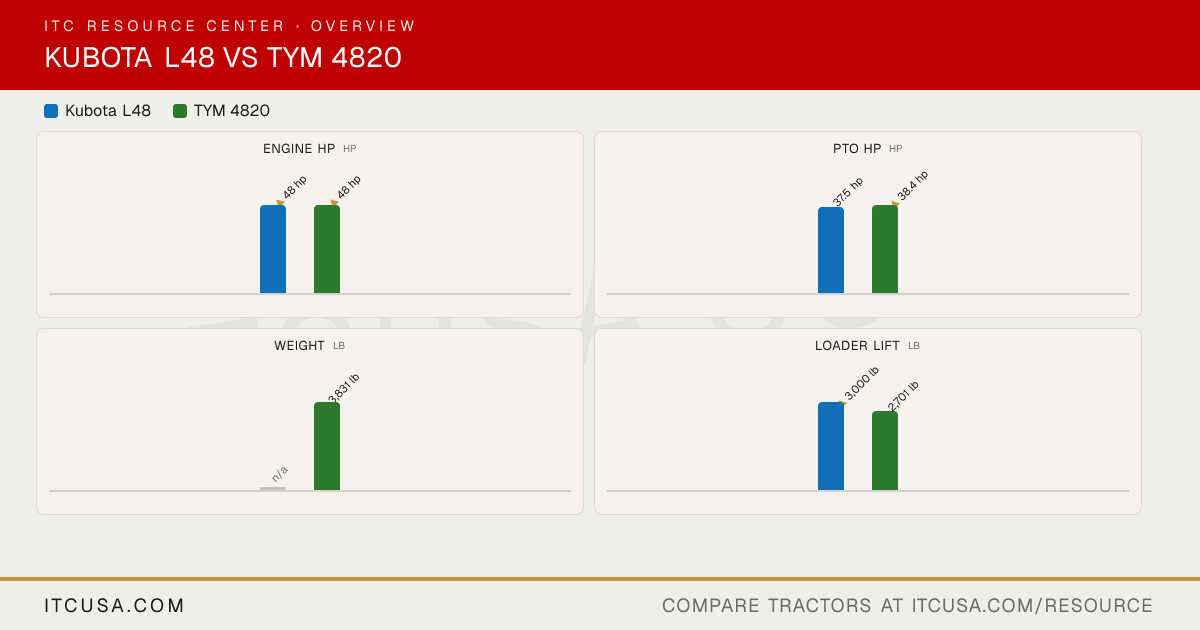

▶ EngineEngine Manufacturer Kubota TYM Engine Model Not Published T2300N2 Engine Type E-TVCS diesel, 4-cylinder, liquid-cooled 4-cylinder, naturally aspirated diesel No. of Cylinders 4 4 Displacement 148.5 in³ 139.5 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 48 hp 48 hp PTO Power 37.5 hp 38.4 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Not Published Dry element Fuel System Not Published IDI (indirect injection) Alternator Not Published 50 A, 12 V ▶ HydraulicsPump Type Not Published Dual gear pump Implement Flow Not Published 11.4 gpm Steering Flow Not Published 5.2 gpm Total Hydraulic Flow 25.9 gpm 16.5 gpm Overall Hydraulic Pump Flow 25.9 gpm 16.5 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published None standard (optional, up to 4) No. of Optional Remote Valves Not Published Up to 4 ▶ Fluid CapacityFuel Tank Capacity 13.2 gal 11.8 gal Coolant Capacity Not Published 6.2 qt Crankcase Capacity Not Published 4.8 qt Transmission / Hydraulic System Capacity Not Published 4820R: 10.3 gal; 4820H: 11.1 gal Front Axle Fluid Capacity Not Published 6.8 qt ▶ PTO & HitchPTO Type Live-continuous running Independent PTO Rear 540 rpm 540/750 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I (standard) Category I Hitch Lift Capacity Not Published 3,306 lb Hitch Lift Capacity (at 24”) 3310 lb 2,425 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type "Feather Step" hydrostatic transmission, 3-range 4820R: Synchromesh; 4820H: HST No. of Speeds 3-range (infinite) 4820R: F16 x R16; 4820H: 4-Range Max Travel Speed (Forward) 15.3 mph 4820R: 16 mph; 4820H: 19.5 mph Max Travel Speed (Reverse) Not Published 4820R: 15.2 mph; 4820H: 19.5 mph Clutch Dry, single 4820R: Dry single type; 4820H: N/A (HST) Differential Lock & Limited Slip Options Not Published Standard differential lock ▶ Chassis, Steering & ControlsFrame Type Four-post ROPS/FOPS standard Not Published Steering Hydrostatic power steering Hydrostatic Brakes Wet disc Wet, multi-disc Seat Suspension & Adjustability Movable seat, spins in place; tilt steering standard Suspension seat Front Axle Type Not Published 4WD (selectable 2WD/4WD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch Not Published 127.4 in Overall Width 74.5 in 64.9 in Wheelbase 74.0 in 71.1 in Ground Clearance Not Published 15.5 in Min. Turn Radius without Brakes 10.5 ft L: 128.7 in; R: 126.0 in Height to Top of ROPS Not Published 98.4 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) Not Published 3,831 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Industrial (R4): 10-16.5 R4 front, 17.5L-24 R4 rear R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front Not Published 9.5-16 R1 Agricultural - Rear Not Published 13.6-26 R3 Turf - Front Not Published 27x8.5-15 / 29x12.5-15 R3 Turf - Rear Not Published 41x14-20 / 44x18-20 R4 Industrial - Front 10-16.5 R4 12-16.5 R4 Industrial - Rear 17.5L-24 R4 17.5Lx24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published BL200: Quick attach mechanism Loader Model TL1150 BL200 Loader Lift Height TL1150: 116.1 in BL200: 106.6 in Loader Lift Capacity (Full Height) TL1150: 3000 lb BL200: 2,701 lb Loader Breakout Force TL1150: 4375 lbf BL200: 3,660 lb ▶ WarrantyWarranty Length & Coverage Not Published Up to 2 years or until the 2,000 hour mark, bumper-to-bumper warranty; 3,000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes ▶ ITC Company AccessoriesAccessories that fit None tagged yet
