Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

4 of 4 selected

—

KubotaL4802

—

KubotaL2502

—

KubotaL3302

—

KubotaL3902

Comparison loaded for 4 tractors.

Maximum 4 tractors. Remove one to compare a different model.

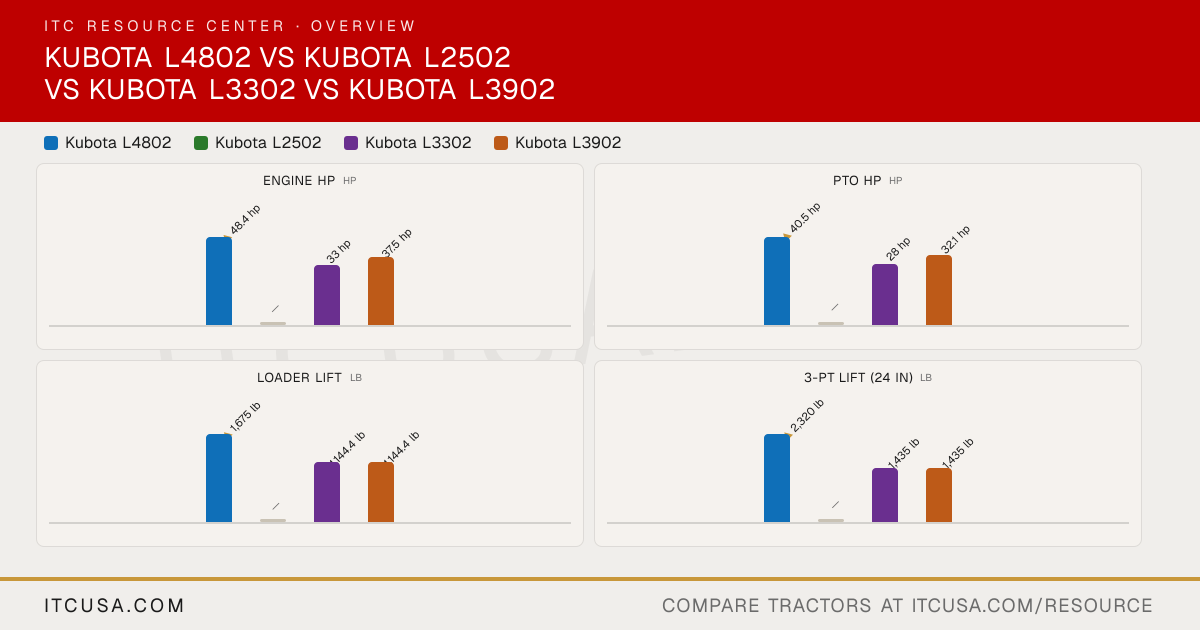

The headline numbers at a glance.

Kubota L4802Kubota L2502Kubota L3302Kubota L3902

Engine HPhp

▲48.4 hp

—

33 hp

37.5 hp

PTO HPhp

▲40.5 hp

—

28 hp

32.1 hp

Weightlb

—

Loader Liftlb

▲1,675 lb

—

1,144.4 lb

3-Pt Lift (24 in)lb

▲2,320 lb

—

1,435 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL4802	KubotaL2502	KubotaL3302	KubotaL3902


PTO Power	40.5 hp	—	28 hp	32.1 hp
Alternator	Not Published	—	Not Published	Not Published
Air Cleaner	Not Published	—	Not Published	Not Published
Engine Type	Direct injection, vertical, water-cooled 4-cycle, diesel	—	Direct injection, vertical, water-cooled 4-cycle, diesel	Direct injection, vertical, water-cooled 4-cycle, diesel
Fuel System	Direct injection	—	Direct injection	Direct injection
Displacement	148.5 in³	—	111.4 in³	111.4 in³
No. of Cylinders	4	—	3	3
Rated Engine Speed	2600 rpm	—	2700 rpm	2700 rpm
Cooling System Type	Water-cooled	—	Water-cooled	Water-cooled
Engine Manufacturer	Kubota	—	Kubota	Kubota
Engine Power (Gross)	48.4 hp	—	33 hp	37.5 hp
Engine Emissions Constraints	Not Published	—	Not Published	Not Published

Weight with ROPS and Loader	Not Published	—	Not Published	Not Published
Weight with Cab and Loader	Not Applicable	—	Not Applicable	Not Applicable

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	—	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.

Pump Type	Not Published	—	Not Published	Not Published
Steering Flow	4.7 gpm	—	3.8 gpm	3.8 gpm
Implement Flow	7.8 gpm	—	6.3 gpm	6.3 gpm
Total Hydraulic Flow	12.5 gpm	—	10.1 gpm	10.1 gpm
Hydraulic System Type	Not Published	—	Not Published	Not Published
Rear Remote Hydraulic Flow	Not Published	—	Not Published	Not Published
Overall Hydraulic Pump Flow	12.5 gpm	—	10.1 gpm	10.1 gpm
No. of Optional Remote Valves	Not Published	—	Not Published	Not Published
No. of Standard Remote Valves	Not Published	—	Not Published	Not Published

PTO Rear	540 rpm	—	540 rpm	540 rpm
PTO Type	Live independent PTO with hydraulic clutch	—	DT (4WD): Transmission driven with overrunning clutch; HST (4WD): Live independent PTO with hydraulic clutch	DT (4WD): Live-continuous running; HST (4WD): Live independent PTO with hydraulic clutch
Lift Control Type	Position control	—	Position control	Position control
Hitch Lift Capacity	2870 lb	—	1998 lb	1998 lb
Mid-PTO Availability	Not Published	—	Not Published	Not Published
Category, 3-Point Hitch	SAE Category I	—	SAE Category I	SAE Category I
Hitch Lift Capacity (at 24”)	2320 lb	—	1435 lb	1435 lb

R3 Turf - Rear	DT (2WD/4WD), HST (4WD): 44X18-20; DTN (4WD): Not Applicable	—	13.6-16	13.6-16
R3 Turf - Front	DT (2WD): 27X8.50-15; DT (4WD), HST (4WD): 27X10.5-15; DTN (4WD): Not Applicable	—	25X8.50-14	25X8.50-14
Tire Size & Options	R1 Agricultural; R3 Turf; R4 Industrial	—	R1 Agricultural; R3 Turf; R4 Industrial	R1 Agricultural; R3 Turf; R4 Industrial
R4 Industrial - Rear	DT (2WD), DTN (4WD): Not Applicable; DT (4WD), HST (4WD): 4.6 gal-24	—	15-19.5	15-19.5
R4 Industrial - Front	DT (2WD), DTN (4WD): Not Applicable; DT (4WD), HST (4WD): 10.0-16.5	—	27X8.50-15	27X8.50-15
R1 Agricultural - Rear	DT (2WD/4WD), HST (4WD): 14.9-24; DTN (4WD): 11.2-24	—	11.2-24	11.2-24
R1 Agricultural - Front	DT (2WD): 2 gal-15; DT (4WD), HST (4WD): 8.3-16; DTN (4WD): 7.2-16	—	7.2-16	7.2-16

Coolant Capacity	Not Published	—	Not Published	Not Published
Crankcase Capacity	Not Published	—	Not Published	Not Published
Fuel Tank Capacity	13.5 gal	—	13.5 gal	13.5 gal
Front Axle Fluid Capacity	Not Published	—	Not Published	Not Published
Transmission / Hydraulic System Capacity	Not Published	—	Not Published	Not Published

Loader Lift Height	DT (2WD/4WD), HST (4WD): 105.2 in; DTN (4WD): Not Applicable	—	94.3 in	94.3 in
Loader Breakout Force	Not Published	—	Not Published	Not Published
Quick Attach Loader System	DT (2WD/4WD), HST (4WD): LA766 2-Lever Quick Coupler; DTN (4WD): Not Applicable	—	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Lift Capacity (Full Height)	DT (2WD/4WD), HST (4WD): 1675 lb; DTN (4WD): Not Applicable	—	1144.4 lb	1144.4 lb

Clutch	DT (2WD/4WD), DTN (4WD): Dry type single stage; HST (4WD): Not Applicable	—	DT (4WD): Dry type single stage; HST (4WD): Not Applicable	DT (4WD): Dry type dual stage; HST (4WD): Not Applicable
No. of Speeds	DT (2WD/4WD), DTN (4WD): 8 forward, 8 reverse; HST (4WD): 3-range	—	DT (4WD): 8 forward, 8 reverse; HST (4WD): 3-range	DT (4WD): 8 forward, 8 reverse; HST (4WD): 3-range
Transmission Type	DT (2WD/4WD), DTN (4WD): Constant mesh with synchronized shuttle; HST (4WD): Hydrostatic transmission (3-range)	—	DT (4WD): Gear shift with synchronized shuttle; HST (4WD): Hydrostatic transmission (3-range)	DT (4WD): Gear shift with synchronized shuttle; HST (4WD): Hydrostatic transmission (3-range)
Max Travel Speed (Forward)	DT (2WD/4WD): 14.9 mph; DTN (4WD): 12.9 mph; HST (4WD): 15.8 mph	—	DT (4WD): 13.2 mph; HST (4WD): 14.1 mph	DT (4WD): 13.2 mph; HST (4WD): 14.1 mph
Max Travel Speed (Reverse)	DT (2WD/4WD): 14.3 mph; DTN (4WD): 12.4 mph; HST (4WD): 14.2 mph	—	DT (4WD): 13.2 mph; HST (4WD): 12.7 mph	DT (4WD): 13.2 mph; HST (4WD): 12.7 mph
Differential Lock & Limited Slip Options	Not Published	—	Not Published	Not Published

Brakes	Mechanical, wet disc type	—	Mechanical, wet disc type	Mechanical, wet disc type
Steering	Hydrostatic power steering	—	Integral type power steering	Integral type power steering
Frame Type	Not Published	—	Not Published	Not Published
Front Axle Type	Not Published	—	Not Published	Not Published
Drawbar Capacity	Not Published	—	Not Published	Not Published
Front Axle Rating	Not Published	—	Not Published	Not Published
Seat Suspension & Adjustability	Not Published	—	Not Published	Not Published

Wheelbase	72.6 in	—	63.4 in	63.4 in
Overall Width	DT (2WD/4WD), HST: 62.2 in; DTN (4WD): 53.7 in	—	55.1 in	55.1 in
Ground Clearance	DT (2WD/4WD), HST: 15.2 in; DTN (4WD): 11.6 in	—	13.4 in	13.4 in
Height to Top of ROPS	DTN (4WD): 94.9 in; DT (2WD/4WD), HST (4WD): 91.7 in	—	91.7 in	91.7 in
Height to Top of Cab Model	Not Applicable	—	Not Applicable	Not Applicable
Height to Top of ROPS (folded)	DTN (4WD): 61.2 in	—	Not Published	Not Published
Min. Turn Radius without Brakes	Not Published	—	Not Published	Not Published
Overall Length with 3-Point Hitch	DT (2WD): 122.8 in; DT (4WD), HST (4WD): 120.3 in; DTN (4WD): 117.7 in	—	108.5 in	108.5 in
