Kubota L4802 vs TYM 4815C | Side-by-side comparison | ITC Resource Center
Compare Tractors

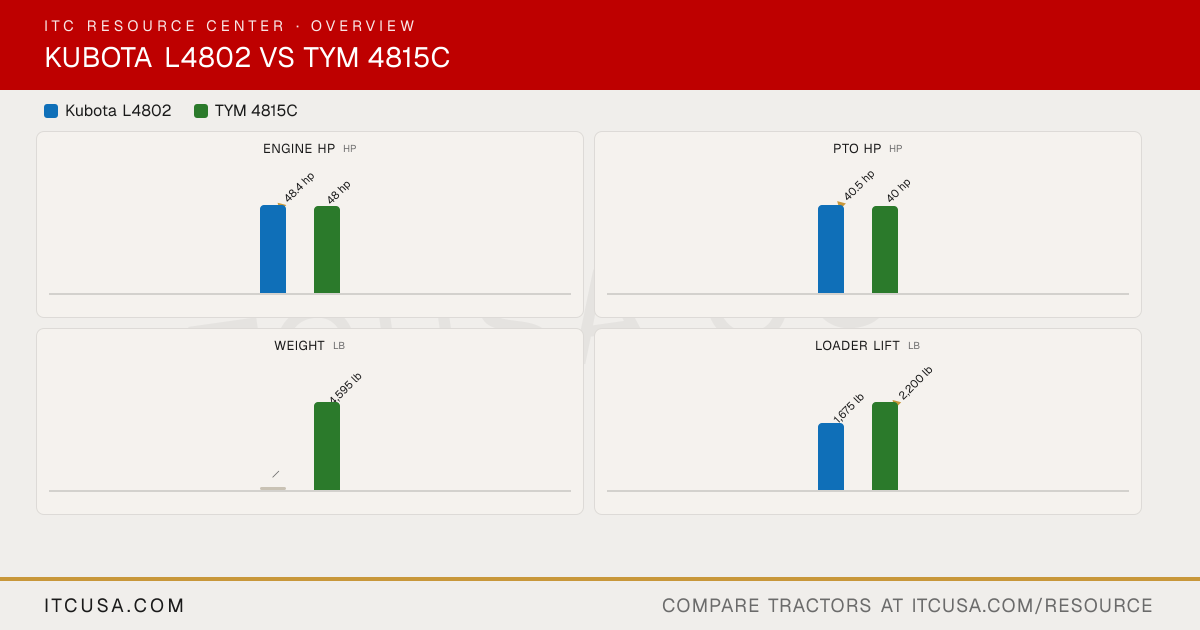

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaL4802
TYM4815C
Engine Manufacturer
Kubota
TYM
Engine Model
V2403-CR-E5
T2300N2
Engine Type
Direct injection, vertical, water-cooled 4-cycle, diesel
4-cylinder, naturally aspirated diesel
No. of Cylinders
4
4
Displacement
148.5 in³
139.5 in³
Rated Engine Speed
2600 rpm
2600 rpm
Engine Power (Gross)
48.4 hp
48 hp
PTO Power
39 hp
40 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Water-cooled
Liquid-cooled
Air Cleaner
Dry type, primary and secondary element
Dry element
Fuel System
Direct injection
IDI
Alternator
45 A, 12 V
70 A, 12 V
Pump Type
Not Published
Dual gear pump
Implement Flow
7.8 gpm
11.4 gpm
Steering Flow
4.7 gpm
5.2 gpm
Total Hydraulic Flow
12.5 gpm (7.8 + 4.7, computed)
16.5 gpm
Overall Hydraulic Pump Flow
12.5 gpm (7.8 + 4.7, computed)
16.5 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
Rear: 0 (loader: 4)
No. of Optional Remote Valves
Optional: double acting valve, or double acting valve with float position (float valve as second segment only)
Up to 4
Fuel Tank Capacity
13.5 gal
7.1 gal
Coolant Capacity
6.9 qt
6.2 qt
Crankcase Capacity
8.7 qt
4.8 qt
Transmission / Hydraulic System Capacity
10.6 gal
9.8 gal
Front Axle Fluid Capacity
6.9 qt
6.8 qt
PTO Type
Live independent PTO with hydraulic clutch
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
SAE Category I
Category I
Hitch Lift Capacity
2870 lb
3,306 lb
Hitch Lift Capacity (at 24”)
2320 lb
2,425 lb
Lift Control Type
Position control
Position control
Transmission Type
Hydrostatic transmission (3-range)
HST (hydrostatic)
No. of Speeds
3-range
3-range hydrostatic
Max Travel Speed (Forward)
15.8 mph
18 mph
Max Travel Speed (Reverse)
14.2 mph
17.95 mph
Clutch
Not Applicable
Not Published
Differential Lock & Limited Slip Options
Rear differential lock, pedal operated
Differential lock (standard)
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic
Brakes
Mechanical, wet disc type
Wet, multi-disc
Seat Suspension & Adjustability
Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Suspension seat
Front Axle Type
Cast-iron front axle
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1430 lb
Not Published
Overall Length with 3-Point Hitch
120.3 in (without 3-point hitch)
120.9 in
Overall Width
62.2 in
55.6 in
Wheelbase
72.6 in
65.7 in
Ground Clearance
15.2 in
13.1 in
Min. Turn Radius without Brakes
8.5 ft (with brake applied)
124.8 in (left); 121.3 in (right)
Height to Top of ROPS
91.7 in
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
89.3 in
Tractor Weight (Base)
3549 lb
3,587 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
4,595 lb
Tire Size & Options
R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural, R4 Industrial
R1 Agricultural - Front
8.3-16
7-16
R1 Agricultural - Rear
14.9-24
11.2-24
R3 Turf - Front
27X10.5-15
Not Published
R3 Turf - Rear
44X18-20
Not Published
R4 Industrial - Front
10.0-16.5
28x8.5-14
R4 Industrial - Rear
17.5L-24
15-19.5
Quick Attach Loader System
LA766 2-Lever Quick Coupler
BL150C: quick attachment assembly
Loader Model
LA766
BL150C
Loader Lift Height
105.2 in
BL150C: 104.9 in
Loader Lift Capacity (Full Height)
1675 lb
BL150C: 2,200 lb
Loader Breakout Force
Not Published
BL150C: 3,422 lb
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Bumper-to-bumper 24 months or 2,000 hours (parts and labor); powertrain 72 months or 3,000 hours for non-commercial use (36 months or 2,000 hours rental and commercial); loaders and backhoes 12 months
