Kubota L4802DT vs Kubota LX4020 | Side-by-side comparison | ITC Resource Center
Compare Tractors

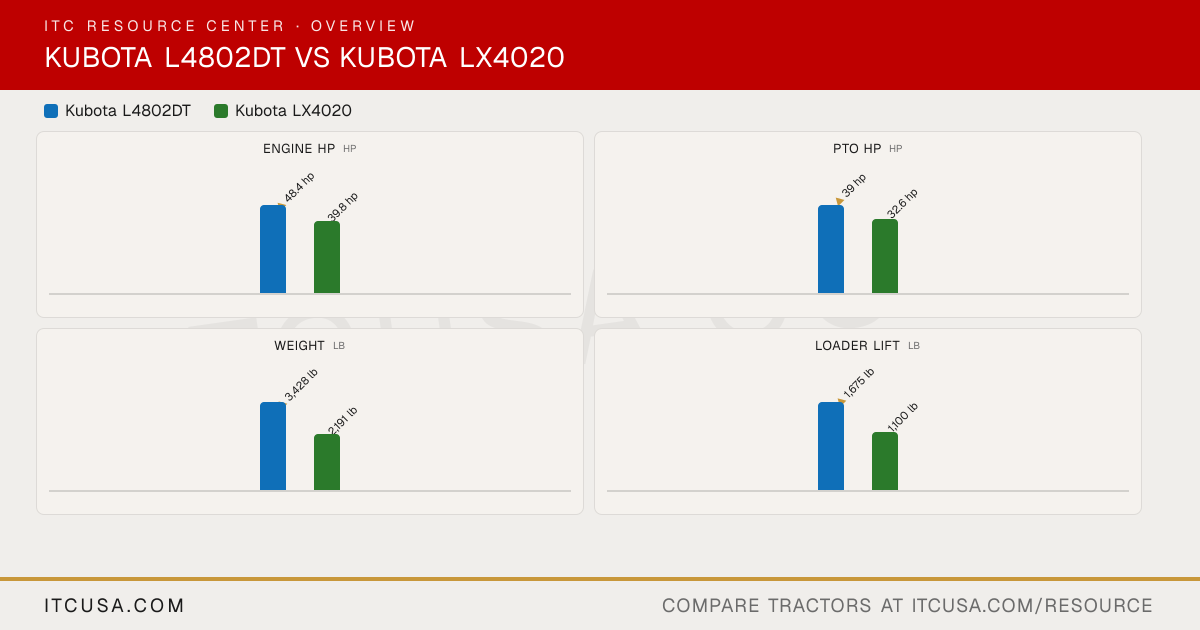

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaL4802DT
KubotaLX4020
Engine Manufacturer
Kubota
Kubota
Engine Model
V2403-CR-E5
V1505-CR-TE5-D40R4
Engine Type
Direct injection, vertical, water-cooled 4-cycle, diesel
Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged
No. of Cylinders
4
4
Displacement
148.5 in³
91.4 in³
Rated Engine Speed
2600 rpm
2700 rpm
Engine Power (Gross)
48.4 hp
39.8 hp
PTO Power
39 hp
32.6 hp
Engine Emissions Constraints
Not Published
Not Published
Cooling System Type
Water-cooled
Pressurized radiator
Air Cleaner
Dry type, primary and secondary element
6 in paper filter (with dual element)
Fuel System
Direct injection
Direct injection
Alternator
45 A, 12 V
Not Published
Pump Type
Not Published
Dual pump
Implement Flow
7.8 gpm
5.4 gpm
Steering Flow
4.7 gpm
4.1 gpm
Total Hydraulic Flow
12.5 gpm (7.8 + 4.7, computed)
9.5 gpm
Overall Hydraulic Pump Flow
12.5 gpm (7.8 + 4.7, computed)
9.5 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
0
No. of Optional Remote Valves
Optional: double acting valve, or double acting valve with float position (float valve as second segment only)
Optional, up to 2
Fuel Tank Capacity
13.5 gal
8.5 gal
Coolant Capacity
6.9 qt
4.5 qt
Crankcase Capacity
8.7 qt
5.0 qt
Transmission / Hydraulic System Capacity
10.6 gal
5.5 gal
Front Axle Fluid Capacity
6.9 qt
4.8 qt
PTO Type
Live independent PTO with hydraulic clutch
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
2460 rpm
Category, 3-Point Hitch
SAE Category I
Category I
Hitch Lift Capacity
2870 lb
2535 lb
Hitch Lift Capacity (at 24”)
2320 lb
1962 lb
Lift Control Type
Position control
Position control valve
Transmission Type
Constant mesh with synchronized shuttle
Hydrostatic transmission
No. of Speeds
8 forward, 8 reverse
3 ranges
Max Travel Speed (Forward)
14.9 mph
17.0 mph
Max Travel Speed (Reverse)
14.3 mph
13.0 mph
Clutch
Dry type single stage
Not Published
Differential Lock & Limited Slip Options
Rear differential lock, pedal operated
Differential lock standard
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic power steering
Brakes
Mechanical, wet disc type
Multi-plate wet disk
Seat Suspension & Adjustability
Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Seat Type: Deluxe; Seat Suspension: Adjustable
Front Axle Type
Cast-iron front axle
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1430 lb
1100 lb
Overall Length with 3-Point Hitch
120.3 in (without 3-point hitch)
116.1 in
Overall Width
62.2 in
53.7 in
Wheelbase
72.6 in
66.7 in
Ground Clearance
15.2 in
8.9 in
Min. Turn Radius without Brakes
8.5 ft (with brake applied)
7.5 ft (with brake applied)
Height to Top of ROPS
91.7 in
88.2 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
85.6 in
Tractor Weight (Base)
3428 lb
2191 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front
8.3-16
180/85D12
R1 Agricultural - Rear
14.9-24
320/85D16
R3 Turf - Front
27X10.5-15
24X8.50-14
R3 Turf - Rear
44X18-20
13.6-16
R4 Industrial - Front
10.0-16.5
23x8.5-12 or 25x8.5-14
R4 Industrial - Rear
17.5L-24
14-17.5 or 15-19.5
Quick Attach Loader System
LA766 2-Lever Quick Coupler
Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Model
LA766
LA545
Loader Lift Height
105.2 in
87.6 in
Loader Lift Capacity (Full Height)
1675 lb
1100 lb
Loader Breakout Force
Not Published
Not Published
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
