Kubota L4802DT vs TYM T494C | Side-by-side comparison | ITC Resource Center
Compare Tractors

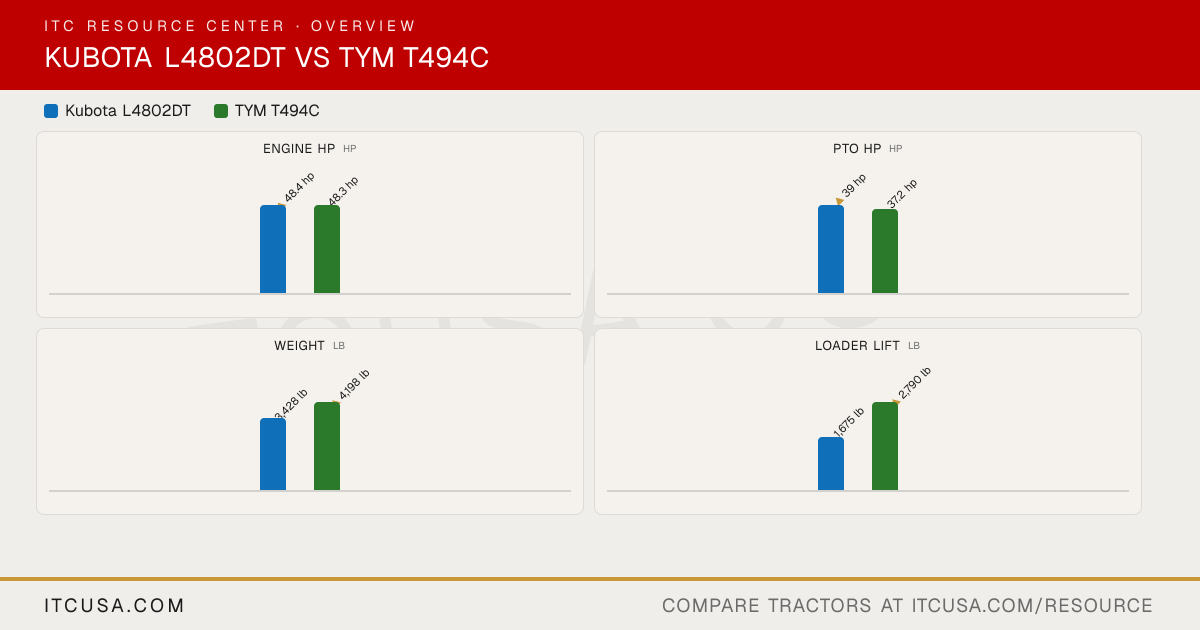

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaL4802DT
TYMT494C
Engine Manufacturer
Kubota
TYM
Engine Model
V2403-CR-E5
n/a
Engine Type
Direct injection, vertical, water-cooled 4-cycle, diesel
4-cylinder, naturally aspirated diesel
No. of Cylinders
4
4
Displacement
148.5 in³
139.5 in³
Rated Engine Speed
2600 rpm
2600 rpm
Engine Power (Gross)
48.4 hp
48.3 hp
PTO Power
39 hp
37.2 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Water-cooled
Not Published
Air Cleaner
Dry type, primary and secondary element
Single dry
Fuel System
Direct injection
IDI
Alternator
45 A, 12 V
70 A, 12 V
Pump Type
Not Published
Dual gear pump
Implement Flow
7.8 gpm
7.7 gpm
Steering Flow
4.7 gpm
4.3 gpm
Total Hydraulic Flow
12.5 gpm (7.8 + 4.7, computed)
11.9 gpm
Overall Hydraulic Pump Flow
12.5 gpm (7.8 + 4.7, computed)
11.9 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
2
No. of Optional Remote Valves
Optional: double acting valve, or double acting valve with float position (float valve as second segment only)
Not Published
Fuel Tank Capacity
13.5 gal
17.0 gal
Coolant Capacity
6.9 qt
6.9 qt
Crankcase Capacity
8.7 qt
6.8 qt
Transmission / Hydraulic System Capacity
10.6 gal
9.2 gal
Front Axle Fluid Capacity
6.9 qt
10.5 qt
PTO Type
Live independent PTO with hydraulic clutch
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
Optional
Category, 3-Point Hitch
SAE Category I
Category I
Hitch Lift Capacity
2870 lb
3,822 lb
Hitch Lift Capacity (at 24”)
2320 lb
3,050.6 lb
Lift Control Type
Position control
Position control/Draft
Transmission Type
Constant mesh with synchronized shuttle
Synchro-shuttle
No. of Speeds
8 forward, 8 reverse
F8 x R8
Max Travel Speed (Forward)
14.9 mph
18.6 mph
Max Travel Speed (Reverse)
14.3 mph
Not Published
Clutch
Dry type single stage
Dry single plate
Differential Lock & Limited Slip Options
Rear differential lock, pedal operated
Not Published
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic
Brakes
Mechanical, wet disc type
Wet disc
Seat Suspension & Adjustability
Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Not Published
Front Axle Type
Cast-iron front axle
4WD
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1430 lb
Not Published
Overall Length with 3-Point Hitch
120.3 in (without 3-point hitch)
141.3 in
Overall Width
62.2 in
63.8 in
Wheelbase
72.6 in
76.2 in
Ground Clearance
15.2 in
13.8 in
Min. Turn Radius without Brakes
8.5 ft (with brake applied)
131.5 in
Height to Top of ROPS
91.7 in
Not Applicable
Height to Top of ROPS (folded)
Not Published
Not Applicable
Height to Top of Cab Model
Not Published
98 in
Tractor Weight (Base)
3428 lb
n/a
Weight with ROPS and Loader
Not Published
Not Applicable
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front
8.3-16
Farm Specialist 9.5-16 NHS TL 6PR
R1 Agricultural - Rear
14.9-24
Farm Specialist 13.6-26 NHS TL 6PR
R3 Turf - Front
27X10.5-15
Multi-Trac CS 27x10.50-15 NHS TL 4PR
R3 Turf - Rear
44X18-20
Multi-Trac CS 44x18.00-20 NHS TL 4PR
R4 Industrial - Front
10.0-16.5
Trac Chief 12-16.5 NHS TL 6PR
R4 Industrial - Rear
17.5L-24
Xtra Grip 17.5L-24 NHS TL 6PR
Quick Attach Loader System
LA766 2-Lever Quick Coupler
TX57: Quick attachment assembly
Loader Model
LA766
n/a
Loader Lift Height
105.2 in
109.4 in
Loader Lift Capacity (Full Height)
1675 lb
2,790 lb
Loader Breakout Force
Not Published
5,316 lb
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
