Kubota L4802DTN vs John Deere 5045E | Side-by-side comparison | ITC Resource Center
Compare Tractors

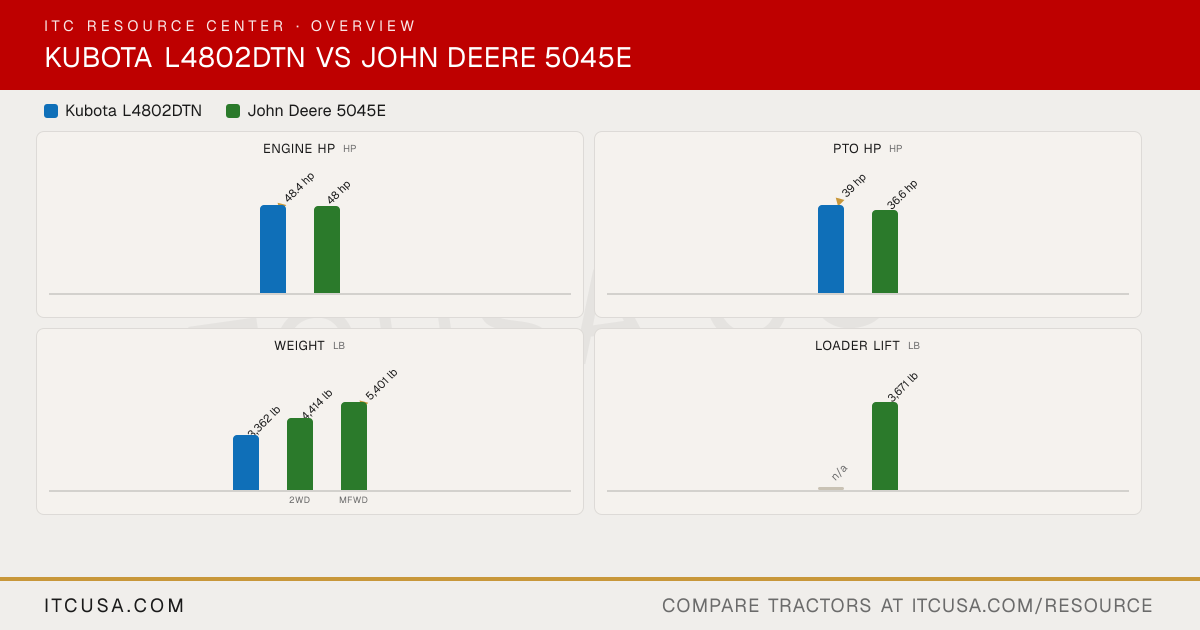

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaL4802DTN
John Deere5045E
Engine Manufacturer
Kubota
John Deere
Engine Model
V2403-CR-E5
PowerTech 3029T
Engine Type
Direct injection, vertical, water-cooled 4-cycle, diesel
Diesel, turbocharged, liquid-cooled
No. of Cylinders
4
3
Displacement
148.5 in³
179 in³
Rated Engine Speed
2600 rpm
2100 rpm
Engine Power (Gross)
48.4 hp
48 hp
PTO Power
39 hp
36.6 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Water-cooled
Liquid-cooled
Air Cleaner
Dry type, primary and secondary element
Two paper elements
Fuel System
Direct injection
Not Published
Alternator
45 A, 12 V
40 A
Pump Type
Not Published
Not Published
Implement Flow
7.8 gpm
11.4 gpm
Steering Flow
4.7 gpm
6.8 gpm
Total Hydraulic Flow
12.5 gpm (7.8 + 4.7, computed)
18.2 gpm
Overall Hydraulic Pump Flow
12.5 gpm (7.8 + 4.7, computed)
18.2 gpm
Hydraulic System Type
Open center
Open Center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
1
No. of Optional Remote Valves
Optional: double acting valve, or double acting valve with float position (float valve as second segment only)
2
Fuel Tank Capacity
13.5 gal
18.0 gal
Coolant Capacity
6.9 qt
10 qt
Crankcase Capacity
8.7 qt
9 qt
Transmission / Hydraulic System Capacity
10.6 gal
10.3 gal
Front Axle Fluid Capacity
6.9 qt
4.8 qt
PTO Type
Live independent PTO with hydraulic clutch
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
SAE Category I
Category 2, convertible to 1
Hitch Lift Capacity
2870 lb
Not Published
Hitch Lift Capacity (at 24”)
2320 lb
3,192 lb
Lift Control Type
Position control
Position control with top link draft sensing
Transmission Type
Constant mesh with synchronized shuttle
SyncShuttle
No. of Speeds
8 forward, 8 reverse
9F/3R
Max Travel Speed (Forward)
12.9 mph
Not Published
Max Travel Speed (Reverse)
12.4 mph
Not Published
Clutch
Dry type single stage
Dry
Differential Lock & Limited Slip Options
Rear differential lock, pedal operated
Mechanical, rear
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic power steering
Brakes
Mechanical, wet disc type
Hydraulic wet disc brakes
Seat Suspension & Adjustability
Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Not Published
Front Axle Type
Cast-iron front axle
2WD or MFWD
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1430 lb
Not Published
Overall Length with 3-Point Hitch
117.7 in (without 3-point hitch)
137.8 in
Overall Width
53.7 in
57.3 in
Wheelbase
72.6 in
80.7 in
Ground Clearance
11.6 in
2WD: 18.8 in; MFWD: 13.4 in
Min. Turn Radius without Brakes
8.9 ft (with brake applied)
138 in
Height to Top of ROPS
91.7 in
93.9 in
Height to Top of ROPS (folded)
Not Published
75.7 in
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
3362 lb
2WD: 4,414 lb; MFWD: 5,401 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural
Not Published
R1 Agricultural - Front
7.2-16
2WD: 7.5-16; MFWD: 9.5-24
R1 Agricultural - Rear
11.2-24
13.6-28
R3 Turf - Front
Not Published
9.5-16
R3 Turf - Rear
Not Published
21.5L-16.1
R4 Industrial - Front
Not Published
12.5/80-18
R4 Industrial - Rear
Not Published
16.9-24
Quick Attach Loader System
Not Published
H240 (NSL or MSL)
Loader Model
Not Published
H240NSL
Loader Lift Height
Not Published
131 in
Loader Lift Capacity (Full Height)
Not Published
3,671 lb
Loader Breakout Force
Not Published
4,504 lb
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
