Kubota L4802DTN vs Kubota L4802 | Side-by-side comparison | ITC Resource Center
Compare Tractors

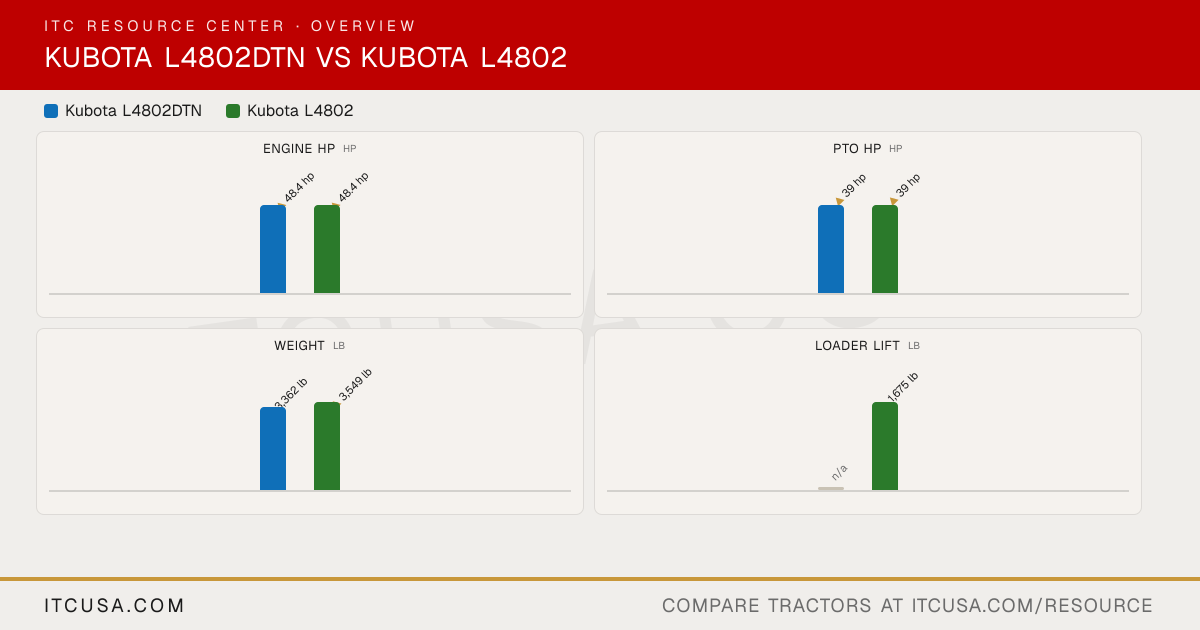

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaL4802DTN
KubotaL4802
Engine Manufacturer
Kubota
Kubota
Engine Model
V2403-CR-E5
V2403-CR-E5
Engine Type
Direct injection, vertical, water-cooled 4-cycle, diesel
Direct injection, vertical, water-cooled 4-cycle, diesel
No. of Cylinders
4
4
Displacement
148.5 in³
148.5 in³
Rated Engine Speed
2600 rpm
2600 rpm
Engine Power (Gross)
48.4 hp
48.4 hp
PTO Power
39 hp
39 hp
Engine Emissions Constraints
Not Published
Not Published
Cooling System Type
Water-cooled
Water-cooled
Air Cleaner
Dry type, primary and secondary element
Dry type, primary and secondary element
Fuel System
Direct injection
Direct injection
Alternator
45 A, 12 V
45 A, 12 V
Pump Type
Not Published
Not Published
Implement Flow
7.8 gpm
7.8 gpm
Steering Flow
4.7 gpm
4.7 gpm
Total Hydraulic Flow
12.5 gpm (7.8 + 4.7, computed)
12.5 gpm (7.8 + 4.7, computed)
Overall Hydraulic Pump Flow
12.5 gpm (7.8 + 4.7, computed)
12.5 gpm (7.8 + 4.7, computed)
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
Not Published
No. of Optional Remote Valves
Optional: double acting valve, or double acting valve with float position (float valve as second segment only)
Optional: double acting valve, or double acting valve with float position (float valve as second segment only)
Fuel Tank Capacity
13.5 gal
13.5 gal
Coolant Capacity
6.9 qt
6.9 qt
Crankcase Capacity
8.7 qt
8.7 qt
Transmission / Hydraulic System Capacity
10.6 gal
10.6 gal
Front Axle Fluid Capacity
6.9 qt
6.9 qt
PTO Type
Live independent PTO with hydraulic clutch
Live independent PTO with hydraulic clutch
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
SAE Category I
SAE Category I
Hitch Lift Capacity
2870 lb
2870 lb
Hitch Lift Capacity (at 24”)
2320 lb
2320 lb
Lift Control Type
Position control
Position control
Transmission Type
Constant mesh with synchronized shuttle
Hydrostatic transmission (3-range)
No. of Speeds
8 forward, 8 reverse
3-range
Max Travel Speed (Forward)
12.9 mph
15.8 mph
Max Travel Speed (Reverse)
12.4 mph
14.2 mph
Clutch
Dry type single stage
Not Applicable
Differential Lock & Limited Slip Options
Rear differential lock, pedal operated
Rear differential lock, pedal operated
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic power steering
Brakes
Mechanical, wet disc type
Mechanical, wet disc type
Seat Suspension & Adjustability
Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type
Cast-iron front axle
Cast-iron front axle
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1430 lb
1430 lb
Overall Length with 3-Point Hitch
117.7 in (without 3-point hitch)
120.3 in (without 3-point hitch)
Overall Width
53.7 in
62.2 in
Wheelbase
72.6 in
72.6 in
Ground Clearance
11.6 in
15.2 in
Min. Turn Radius without Brakes
8.9 ft (with brake applied)
8.5 ft (with brake applied)
Height to Top of ROPS
91.7 in
91.7 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
3362 lb
3549 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural
R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front
7.2-16
8.3-16
R1 Agricultural - Rear
11.2-24
14.9-24
R3 Turf - Front
Not Published
27X10.5-15
R3 Turf - Rear
Not Published
44X18-20
R4 Industrial - Front
Not Published
10.0-16.5
R4 Industrial - Rear
Not Published
17.5L-24
Quick Attach Loader System
Not Published
LA766 2-Lever Quick Coupler
Loader Model
Not Published
LA766
Loader Lift Height
Not Published
105.2 in
Loader Lift Capacity (Full Height)
Not Published
1675 lb
Loader Breakout Force
Not Published
Not Published
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
