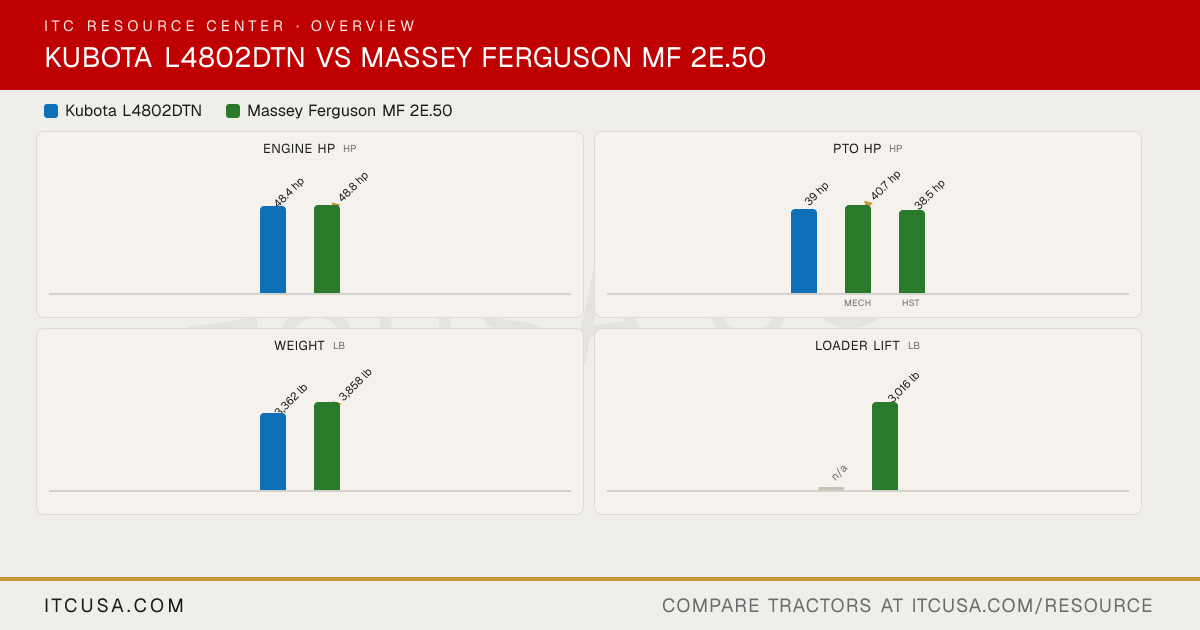

▶ EngineEngine Manufacturer Kubota Iseki Engine Model V2403-CR-E5 Not Published Engine Type Direct injection, vertical, water-cooled 4-cycle, diesel 4-cylinder, turbocharged diesel No. of Cylinders 4 4 Displacement 148.5 in³ 148.3 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 48.4 hp 48.8 hp PTO Power 40.5 hp Mech: 40.7 hp; HST: 38.5 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Water-cooled Liquid cooled Air Cleaner Dry type, primary and secondary element Not Published Fuel System Direct injection Not Published Alternator 45 A, 12 V Not Published ▶ HydraulicsPump Type Not Published Two gear-type pumps Implement Flow 7.8 gpm 12.6 gpm Steering Flow 4.7 gpm 7.0 gpm Total Hydraulic Flow 12.5 gpm (7.8 + 4.7, computed) 19.6 gpm (12.6 + 7.0, computed) Overall Hydraulic Pump Flow 12.5 gpm (7.8 + 4.7, computed) 19.6 gpm (12.6 + 7.0, computed) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Optional: double-acting valve, or double-acting valve with float position (float valve as second segment only) Not Published ▶ Fluid CapacityFuel Tank Capacity 13.5 gal 14 gal Coolant Capacity 6.9 qt Not Published Crankcase Capacity 8.7 qt Not Published Transmission / Hydraulic System Capacity 10.6 gal Not Published Front Axle Fluid Capacity 6.9 qt Not Published ▶ PTO & HitchPTO Type Live independent PTO with hydraulic clutch Independent with SoftStart electronic modulation PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch SAE Category I Category I & II Hitch Lift Capacity 2,870 lb 2,645 lb Hitch Lift Capacity (at 24”) 2,320 lb 2,425 lb Lift Control Type Position control Not Published ▶ Transmission & DrivetrainTransmission Type Constant mesh with synchronized shuttle Mech: 8x8 synchro shuttle; HST: 3-range hydrostatic No. of Speeds 8 forward, 8 reverse Mech: 8 forward and 8 reverse; HST: infinite forward and reverse (3-range) Max Travel Speed (Forward) 12.9 mph Not Published Max Travel Speed (Reverse) 12.4 mph Not Published Clutch Dry type single stage Not Published Differential Lock & Limited Slip Options Rear differential lock, pedal operated Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Power steering Brakes Mechanical, wet disc type Wet disc Seat Suspension & Adjustability Suspension seat with fore/aft travel adjustment and suspension tension adjustment Spring-cushioned seat Front Axle Type Cast-iron front axle Four-wheel drive Front Axle Rating Not Published Not Published Drawbar Capacity 1,430 lb Not Published ▶ Dimensions & ManeuverabilityOverall Width 52.7 in 70.1 in Wheelbase 72.6 in Not Published Ground Clearance 11.5 in 15 in Min. Turn Radius without Brakes 8.9 ft (with brake applied) Not Published Height to Top of ROPS 94.9 in (61.2 in with ROPS folded) 103.8 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 117.7 in (without 3-point hitch) 132.8 in ▶ WeightTractor Weight (Base) 3,362 lb 3,858 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Agricultural Not Published R1 Agricultural - Front 7.2-16 Not Published R1 Agricultural - Rear 11.2-24 Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published Skid steer quick attach Loader Model Not Published FL2813X Loader Lift Height Not Published FL2813X: 111 in (at pivot pin) Loader Lift Capacity (Full Height) Not Published FL2813X: 3,016 lb (at pivot pin) Loader Breakout Force Not Published FL2813X: 4,176 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: powertrain 36 months or 2,000 hours Not Published ▶ ITC Company AccessoriesAccessories that fit None tagged yet
