Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

KubotaL5060

n/a

JohnDeere4052MHeavyDuty

Comparison loaded for 2 tractors.

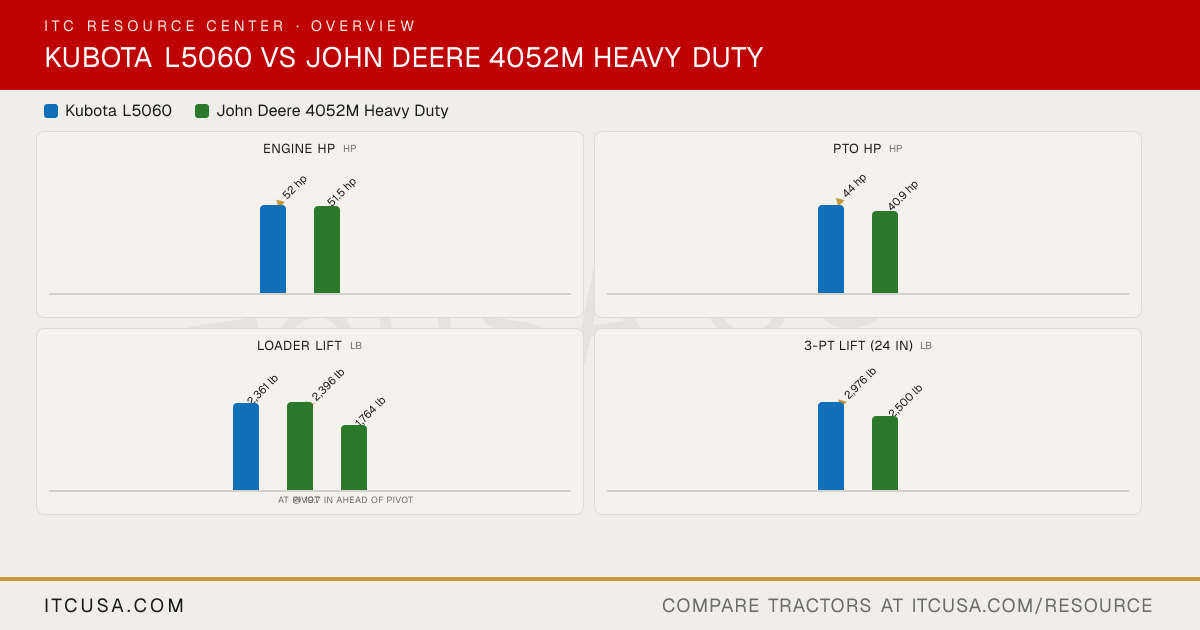

The headline numbers at a glance.

Kubota L5060John Deere 4052M Heavy Duty

Engine HPhp

▲52 hp

51.5 hp

PTO HPhp

▲44 hp

40.8 hp

Weightlb

3,979 lb

▲4,255 lb

Loader Liftlb

2,361 lb

▲2,539 lb

3-Pt Lift (24 in)lb

▲2,976 lb

2,500 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL5060	John Deere4052M Heavy Duty


Engine Manufacturer	Kubota	Yanmar
Engine Model	V2403-CR-TE4-GL1	4TNV86CT-MJT
Engine Type	Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged	Turbocharged 4-cylinder Diesel
No. of Cylinders	4	4
Displacement	148.5 in³	127.6 in³
Rated Engine Speed	2700 rpm	2600 rpm
Engine Power (Gross)	52 hp	51.5 hp
PTO Power	44 hp	40.8 hp
Engine Emissions Constraints	Tier 4	Tier 4
Cooling System Type	Liquid-cooled	Liquid
Air Cleaner	Dry paper, dual element	Dual element
Fuel System	Electronic Common Rail System (CRS)	High-pressure common rail direct injection
Alternator	45 A, 12 V	75 A, 12 V

Pump Type	Tandem pump - gear type	Dual Independent
Implement Flow	9.8 gpm	10.2 gpm
Steering Flow	4.9 gpm	5.7 gpm
Total Hydraulic Flow	14.7 gpm	15.9 gpm
Overall Hydraulic Pump Flow	14.7 gpm	15.9 gpm
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	2
No. of Optional Remote Valves	Optional, up to 3 (double-acting valve or float detent valve options, any position)	Not Published

Fuel Tank Capacity	13.5 gal	Open station: 15.0 gal; Cab: 14.7 gal (if equipped)
Coolant Capacity	8.7 qt	Open station: 6.8 qt; Cab: 8.0 qt (if equipped)
Crankcase Capacity	9.9 qt	5.6 qt (with filter)
Transmission / Hydraulic System Capacity	11.9 gal	12.5 gal
Front Axle Fluid Capacity	8.9 qt	5.3 qt

PTO Type	Live independent (hydraulic clutch)	Independent (electrohydraulic)
PTO Rear	540 rpm @ 2550 engine rpm	540 rpm
Mid-PTO Availability	Optional	No mid-PTO offered
Category, 3-Point Hitch	SAE Category I & II	Category I/II
Hitch Lift Capacity	3,858 lb	3,130 lb
Hitch Lift Capacity (at 24”)	2,976 lb	2,500 lb
Lift Control Type	Position control	Position control

Transmission Type	Glide Shift	eHydro (3-range hydrostatic); no PowrReverser gear option offered
No. of Speeds	12Fx8R	eHydro: Infinitely-variable, 3 range
Max Travel Speed (Forward)	16.5 mph	18.6 mph
Max Travel Speed (Reverse)	15.8 mph	18.6 mph
Clutch	Dry type single stage	Wet; wet clutch disk diameter 5.08 in
Differential Lock & Limited Slip Options	Rear differential lock, standard	Differential lock: Yes

Frame Type	Not Published	ROPS - Foldable
Steering	Hydrostatic power steering	Power steering (hydrostatic)
Brakes	Wet disc type, mechanically activated	Wet disc
Seat Suspension & Adjustability	Suspension seat with fore/aft travel adjustment, suspension adjust knob, backrest tilt adjustment, swivel and arm rest	Not Published
Front Axle Type	4WD: Bevel gear front axle, non-adjustable tread spacing	Mechanical front wheel drive (MFWD) - Standard
Front Axle Rating	Not Published	(Continuous) 3307 lb
Drawbar Capacity	1,433 lb	Max vertical load 1103 lb

Overall Length with 3-Point Hitch	135.0 in	134.7 in
Overall Width	67.3 in	71.3 in
Wheelbase	75.4 in	73.0 in
Ground Clearance	15.4 in	Front axle: 15.2 in; Drawbar support: 14.5 in
Min. Turn Radius without Brakes	9.2 ft (with brake applied)	17.1 ft (5.2 m)
Height to Top of ROPS	98.0 in	91.1 in
Height to Top of ROPS (folded)	Not Published	65.9 in
Height to Top of Cab Model	Not Published	Not Published

Tractor Weight (Base)	3,979 lb	4,255 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Standard R1 (9.5-16 / 14.9-26); options: R1 (9.5-16 / 13.6-28), R4 (10-16.5 / 17.5L-24), R3 (29x12.50-15 / 44x18-20), LSW R3 (LSW305R343 / LSW610R470)	R4 Industrial
R1 Agricultural - Front	9.5-16	Not Published
R1 Agricultural - Rear	14.9-26; 13.6-28	Not Published
R3 Turf - Front	29X12.50-15	Not Published
R3 Turf - Rear	44X18-20	Not Published
R4 Industrial - Front	10-16.5	31.5x13-16.5 (10PR)
R4 Industrial - Rear	17.5L-24	16.9-24

Quick Attach Loader System	Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)	Rigid mounted with parking kit available; Parking stand kit BW16127 (parkable)
Loader Model	LA1055	440R (Quik-Park)
Loader Lift Height	112.7 in	110 in
Loader Lift Capacity (Full Height)	2361 lb	2,539 lb (at pivot, NSL)
Loader Breakout Force	3171 lbf (19.7 in forward of pivot pin)	At pivot: 3,853 lbf; @ 19.7 in ahead of pivot: 2,902 lbf

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)
