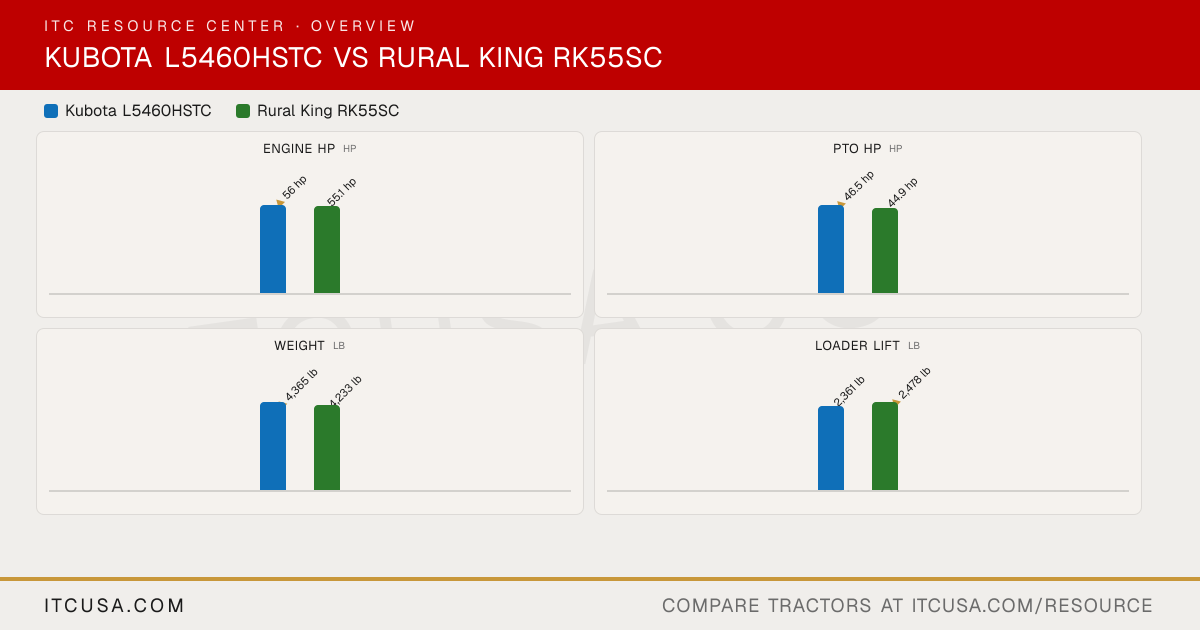

▶ EngineEngine Manufacturer Kubota Yanmar Engine Model V2403-CR-TE4-GL3 4TNV86T-CR Engine Type Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged 4-cycle, inline, water-cooled, turbocharged diesel No. of Cylinders 4 4 Displacement 148.5 in³ 127.6 in³ Rated Engine Speed 2600 rpm 2800 rpm Engine Power (Gross) 56 hp 55.1 hp PTO Power 46.5 hp 44.9 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled, forced circulation with fan Air Cleaner Dry paper, dual element Dry dual element Fuel System Electronic Common Rail System (CRS) Common Rail Direct Injection Alternator 60 A, 12 V 70 A, 12 V ▶ HydraulicsPump Type Tandem pump - gear type Not Published Implement Flow 9.4 gpm 9.5 gpm Steering Flow 4.7 gpm 5.0 gpm Total Hydraulic Flow 14.1 gpm 14.5 gpm Overall Hydraulic Pump Flow 14.1 gpm 14.5 gpm Hydraulic System Type Open center Independent, fully live hydraulic pump with separate reservoir; position control with isolating and response control Rear Remote Hydraulic Flow Not Published 9.5 gpm No. of Standard Remote Valves Not Published 2 No. of Optional Remote Valves Optional, up to 3: double-acting valve or float detent valve, any position Not Published ▶ Fluid CapacityFuel Tank Capacity 13.5 gal 17 gal Coolant Capacity 8.7 qt 2.5 gal Crankcase Capacity 9.9 qt 1.4 gal Transmission / Hydraulic System Capacity 11.9 gal 9.24 gal Front Axle Fluid Capacity Not Published 2.64 gal ▶ PTO & HitchPTO Type Live independent (hydraulic clutch) Independent PTO Rear 540 rpm @ 2400 engine rpm 540 rpm Mid-PTO Availability Optional No mid-PTO offered Category, 3-Point Hitch SAE Category I & II Category I Hitch Lift Capacity 3,858 lb 3,314 lb Hitch Lift Capacity (at 24”) 2,976 lb 2,945 lb Lift Control Type Position control Position and draft control ▶ Transmission & DrivetrainTransmission Type Hydrostatic transmission 16F/16R Syncro Shuttle w/creeper No. of Speeds 3-range, 6 speeds (H-DS), infinitely variable in each 16 forward, 16 reverse Max Travel Speed (Forward) 16.8 mph 18.4 mph Max Travel Speed (Reverse) 15.2 mph 16.1 mph Clutch Not Published Main: dry single disc, mechanical (10.24 in diameter); PTO: multiple wet disc Differential Lock & Limited Slip Options Rear differential lock, standard 4WD (MFWD) standard; bevel-gear differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Unit frame: engine, clutch housing, transmission and front axle support bolted into one rigid assembly Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet disc type, mechanically activated Wet disc, mechanical, foot operated Seat Suspension & Adjustability Suspension seat with swivel function Suspension seat with armrests and retractable seat belt, standard Front Axle Type 4WD: Bevel gear front axle, non-adjustable tread spacing Center-pivot, reverse Elliot type (4WD) Front Axle Rating Not Published Not Published Drawbar Capacity 1,433 lb Not Published ▶ Dimensions & ManeuverabilityOverall Width 67.3 in 63.8 in Wheelbase 75.4 in 76.2 in Ground Clearance 15.4 in 13.8 in Min. Turn Radius without Brakes 9.2 ft (with brake applied) Not Published Height to Top of ROPS Not Applicable Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 92.5 in 99.6 in Overall Length 135.0 in (with 3-point hitch) 141.3 in ▶ WeightTractor Weight (Base) 4,365 lb 4,233 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Standard R1 (9.5-16 / 14.9-26); options: R1 (9.5-16 / 13.6-28), R4 (10-16.5 / 17.5L-24), R3 (29x12.50-15 / 44x18-20), LSW R3 (LSW305R343 / LSW610R470) Titan (USA): R4 Industrial (Std), R1 Agricultural (Opt), R3 Turf (Opt), R14 (Opt) R1 Agricultural - Front 9.5-16 9.5x16 R1 Agricultural - Rear 14.9-26; 13.6-28 14.9x24 R3 Turf - Front 29X12.50-15 Not Published R3 Turf - Rear 44X18-20 Not Published R4 Industrial - Front 10-16.5 12x16.5 R4 Industrial - Rear 17.5L-24 16.9x24 ▶ Loader & AttachmentsQuick Attach Loader System 2-lever mechanical quick coupler (standard); 2-lever hydraulic quick coupler (optional); single-lever hose coupler (optional) L110: Skid-steer compatible quick-attach Loader Model LA1055 L110 Loader Lift Height 112.7 in (at pivot pin) L110: 110 in Loader Lift Capacity (Full Height) 2,361 lb (at pivot pin) L110: 2,478 lb at pivot pin to full height Loader Breakout Force 3,171 lbf L110: 4,938 lb at ground level, pivot pin ▶ WarrantyWarranty Length & Coverage Not Published Basic 2 years; powertrain 8 years or 3,000 hours, no deductible, parts and labor ▶ ITC Company AccessoriesAccessories that fit
