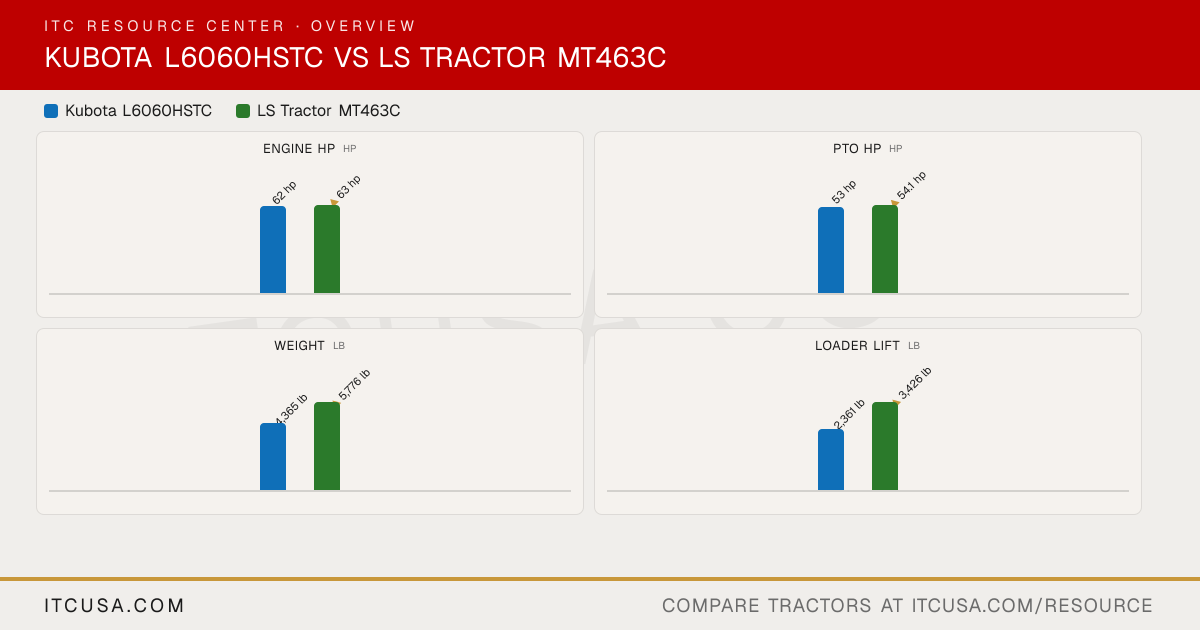

▶ EngineEngine Manufacturer Kubota LS Mtron Engine Model V2403-CR-E4-GL6 L4C25-T Engine Type Liquid-cooled, 4-cycle multi valve, diesel, Turbocharged In-line vertical, water cooled 4-cycle diesel, CRDI No. of Cylinders 4 4 Displacement 148.5 in³ 152.85 in³ Rated Engine Speed 2600 rpm 2500 rpm Engine Power (Gross) 62 hp 63 hp PTO Power 53 hp 54.1 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry paper, dual element Dry Fuel System Electronic Common Rail System (CRS) Delphi, CRDI Alternator 60 A, 12 V 70 A, 12 V ▶ HydraulicsPump Type Tandem pump - gear type Gear type, engine drive Implement Flow 9.4 gpm 14.5 gpm Steering Flow 4.7 gpm 6.6 gpm Total Hydraulic Flow 14.1 gpm 21.1 gpm Overall Hydraulic Pump Flow 14.1 gpm 21.1 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 2 Pairs (Front), 2 Pairs (Rear) No. of Optional Remote Valves Optional, up to 3 (double-acting valve or float detent valve options, any position) Not Published ▶ Fluid CapacityFuel Tank Capacity 13.5 gal 24.3 gal Coolant Capacity 8.7 qt 3.0 gal Crankcase Capacity 9.9 qt 1.8 gal Transmission / Hydraulic System Capacity 11.9 gal 16.5 gal Front Axle Fluid Capacity 8.9 qt 2.3 gal ▶ PTO & HitchPTO Type Live independent (hydraulic clutch) Independent PTO Rear 540 rpm @ 2400 engine rpm 540 / 540E Mid-PTO Availability Optional Not Published Category, 3-Point Hitch SAE Category 1 & 2 Category II Hitch Lift Capacity 3,858 lb 4,079 lb Hitch Lift Capacity (at 24”) 2,976 lb 3,483 lb Lift Control Type Position control Position & Draft ▶ Transmission & DrivetrainTransmission Type Hydrostatic transmission Synchro Shuttle No. of Speeds 3-range, 6 speeds (H-DS), infinitely variable in each F16 x R16 Max Travel Speed (Forward) 16.8 mph Not Published Max Travel Speed (Reverse) 15.2 mph Not Published Clutch Not Published Dry single clutch Differential Lock & Limited Slip Options Rear differential lock, standard Mechanical differential lock (pedal) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic Power Steering Brakes Wet disc type, mechanically activated Wet, Multi-disc Seat Suspension & Adjustability Suspension seat with fore/aft travel adjustment, suspension adjust knob, backrest tilt adjustment, swivel and arm rest Seat With Suspension & Armrest Front Axle Type 4WD: Bevel gear front axle, non-adjustable tread spacing Not Published Front Axle Rating Not Published Not Published Drawbar Capacity 1,433 lb Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 135.0 in 140 in Overall Width 67.3 in 72.6 in Wheelbase 75.4 in 83.1 in Ground Clearance 15.4 in Not Published Min. Turn Radius without Brakes 9.2 ft (with brake applied) 12.8 ft (3.9 m) Height to Top of ROPS Not Applicable Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 92.5 in 105.4 in ▶ WeightTractor Weight (Base) 4,365 lb 5,776 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published 6,966 lb ▶ Tire OptionsTire Size & Options Standard R1 (9.5-16 / 14.9-26); options: R1 (9.5-16 / 13.6-28), R4 (10-16.5 / 17.5L-24), R3 (29x12.50-15 / 44x18-20), LSW R3 (LSW305R343 / LSW610R470) Standard Ag 9.5-24 / 16.9-28; Industrial 10.5/80x18 10PR / 19.5Lx24 8PR; Large Ag 11.2-24 / 16.9-30; R14 320/85R20 119D / 420/75R34 142D R1 Agricultural - Front 9.5-16 9.5-24 (Standard Ag); 11.2-24 (Large Ag) R1 Agricultural - Rear 14.9-26; 13.6-28 16.9-28 (Standard Ag); 16.9-30 (Large Ag) R3 Turf - Front 29X12.50-15 Not Published R3 Turf - Rear 44X18-20 Not Published R4 Industrial - Front 10-16.5 10.5/80x18 10PR R4 Industrial - Rear 17.5L-24 19.5Lx24 8PR ▶ Loader & AttachmentsQuick Attach Loader System Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional) LL5001: Standard Quick-Attach, Skid-Steer Compatible (SSQA) Loader Model LA1055 LL5001 Loader Lift Height 112.7 in LL5001: 132.9 in (height position); 116.8 in (power position) Loader Lift Capacity (Full Height) 2361 lb LL5001: 3,426 lb (height position); 3,488 lb (power position) Loader Breakout Force 3171 lbf (19.7 in forward of pivot pin) Not Published ▶ WarrantyWarranty Length & Coverage Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. 6-year / 1,500-hour limited powertrain warranty; 2-year / 750-hour bumper-to-bumper warranty ▶ ITC Company AccessoriesAccessories that fit None tagged yet
