Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

KubotaL6070

n/a

JohnDeere4520

Comparison loaded for 2 tractors.

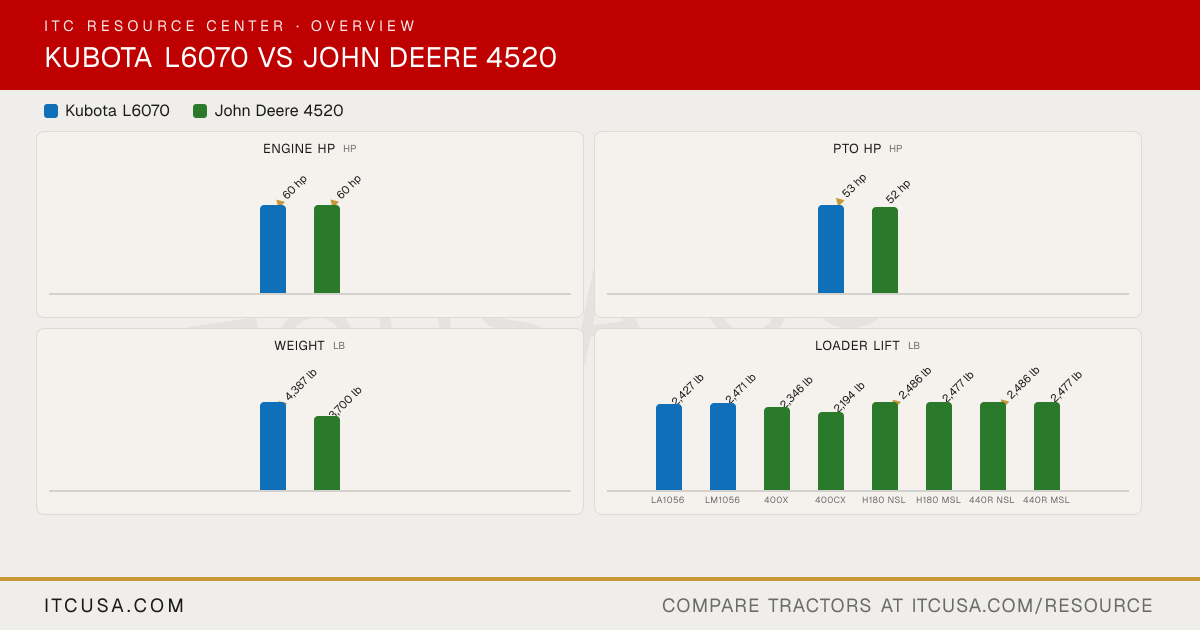

The headline numbers at a glance.

Kubota L6070John Deere 4520

Engine HPhp

▲60 hp

PTO HPhp

▲53 hp

52 hp

Weightlb

▲4,387 lb

3,700 lb

Loader Liftlb

2,427 lb

2,471 lb

2,346 lb

2,194 lb

▲2,486 lb

2,477 lb

▲2,486 lb

2,477 lb

LA1056LM1056400X400CXH180 NSLH180 MSL440R NSL440R MSL

3-Pt Lift (24 in)lb

▲2,976 lb

2,500 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaL6070	John Deere4520


Engine Manufacturer	Kubota	John Deere
Engine Model	V2403-CR-TIE5	PowerTech 4024T
Engine Type	Direct injection, water-cooled, 4-cycle diesel, common rail system, turbocharged and intercooled	4-cylinder turbocharged liquid-cooled diesel, direct injection
No. of Cylinders	4	4
Displacement	148.5 in³	149 in³
Rated Engine Speed	2300 rpm	2400 rpm
Engine Power (Gross)	60 hp	60 hp
PTO Power	53 hp	52 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Water-cooled	Liquid-cooled
Air Cleaner	Not Published	Dry type with safety element
Fuel System	Common rail direct injection	Direct injection, mechanical fuel pump
Alternator	Not Published	70 A

Pump Type	Not Published	Dual tandem gear pump
Implement Flow	9.83 gpm	12 gpm
Steering Flow	Not Published	5.1 gpm
Total Hydraulic Flow	Not Published	17.1 gpm
Overall Hydraulic Pump Flow	Not Published	17.1 gpm
Hydraulic System Type	Not Published	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	Not Published	Not Published
No. of Optional Remote Valves	Up to 3 (optional)	Not Published

Fuel Tank Capacity	Not Published	14.5 gal (open station); 13.8 gal (cab)
Coolant Capacity	Not Published	1.6 gal (open station); 2.2 gal (cab)
Crankcase Capacity	Not Published	7.9 qt
Transmission / Hydraulic System Capacity	Not Published	10.3 gal (PowrReverser); 9.6 gal (eHydro)
Front Axle Fluid Capacity	Not Published	1.3 gal

PTO Type	Independent	Independent, wet disk clutch and brake
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	Not Published	Optional, 2100 rpm
Category, 3-Point Hitch	Category I and II	Category 1
Hitch Lift Capacity	3858 lb	3130 lb
Hitch Lift Capacity (at 24”)	2976 lb	2500 lb
Lift Control Type	Not Published	Position control

Transmission Type	Hydrostatic transmission, 3-range, with Hydro-Dual Speed (H-DS)	PowrReverser 12F/12R standard; eHydro hydrostatic optional (4WD)
No. of Speeds	3-range	12 forward, 12 reverse (PowrReverser); infinite forward and reverse, 3 ranges (eHydro)
Max Travel Speed (Forward)	18.5 mph	17.3 mph (PowrReverser); 16.9 mph (eHydro)
Max Travel Speed (Reverse)	Not Published	17.3 mph (PowrReverser); 16.9 mph (eHydro)
Clutch	Not Published	Multiple stage wet disk, 5.1 in (PowrReverser)
Differential Lock & Limited Slip Options	Not Published	Mechanical rear differential lock

Frame Type	Two-post folding ROPS; cab optional	Folding ROPS; ComfortGard cab optional; four-wheel drive standard
Steering	Hydrostatic power steering	Power steering
Brakes	Wet disc type	Wet disk
Seat Suspension & Adjustability	Not Published	Air ride seat optional
Front Axle Type	Not Published	Mechanical front wheel drive (MFWD), standard, all ranges
Front Axle Rating	Not Published	3528 lb
Drawbar Capacity	Not Published	1103 lb

Overall Length with 3-Point Hitch	133.9 in (w/o 3P) (without 3-point hitch)	128.2 in
Overall Width	67.3 in	65.6 in (minimum, R1 tires); 89.1 in (maximum, R1 tires)
Wheelbase	81.3 in	71.5 in
Ground Clearance	15.4 in	Not Published
Min. Turn Radius without Brakes	9.5 ft (w/brake) (with brake applied)	Not Published
Height to Top of ROPS	98.0 in	97.2 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	93.3 in	92.4 in

Tractor Weight (Base)	4387 lb (ROPS); 4762 lb (cab)	3700 lb (open station); 4345 lb (cab)
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	Standard: 9.5-16 front, 14.9-26 rear	R1 8.00-16 front and 13.6-28 rear; R3 27x10.5-15 front and 44x18.00-20 rear; R4 10.00-16.5 front and 17.5L-24 rear; golf 27x12LL-15 front and 22.5LL-16.1 rear
R1 Agricultural - Front	9.5-16	8.00-16
R1 Agricultural - Rear	14.9-26	13.6-28
R3 Turf - Front	Not Published	27x10.5-15
R3 Turf - Rear	Not Published	44x18.00-20
R4 Industrial - Front	Not Published	10.00-16.5
R4 Industrial - Rear	Not Published	17.5L-24

Quick Attach Loader System	LA1056, LM1056: toolless loader removal with integrated parking stands; optional third-function valve	Not Published
Loader Model	LA1056; LM1056	400X; 400CX
Loader Lift Height	LA1056: 117 in; LM1056: 117 in	400X: 112.8 in; 400CX: 112.8 in; H180 NSL: 109 in; H180 MSL: 109 in; 440R NSL: 109 in; 440R MSL: 109 in
Loader Lift Capacity (Full Height)	LA1056: 2427 lb; LM1056: 2471 lb	400X: 2346 lb; 400CX: 2194 lb; H180 NSL: 2486 lb; H180 MSL: 2477 lb; 440R NSL: 2486 lb; 440R MSL: 2477 lb (to maximum height at pivot pin)
Loader Breakout Force	LA1056: 4069 lbf; LM1056: 4061 lbf	400X: 3453 lbf; 400CX: 3435 lbf; H180 NSL: 3934 lbf; H180 MSL: 3917 lbf; 440R NSL: 3934 lbf; 440R MSL: 3917 lbf (at pivot point)

Warranty Length & Coverage	Not Published	3-year / 2,000-hour limited warranty (as sold new)
