Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

n/a

KubotaLX2610HSDC

n/a

KubotaL2502

Comparison loaded for 2 tractors.

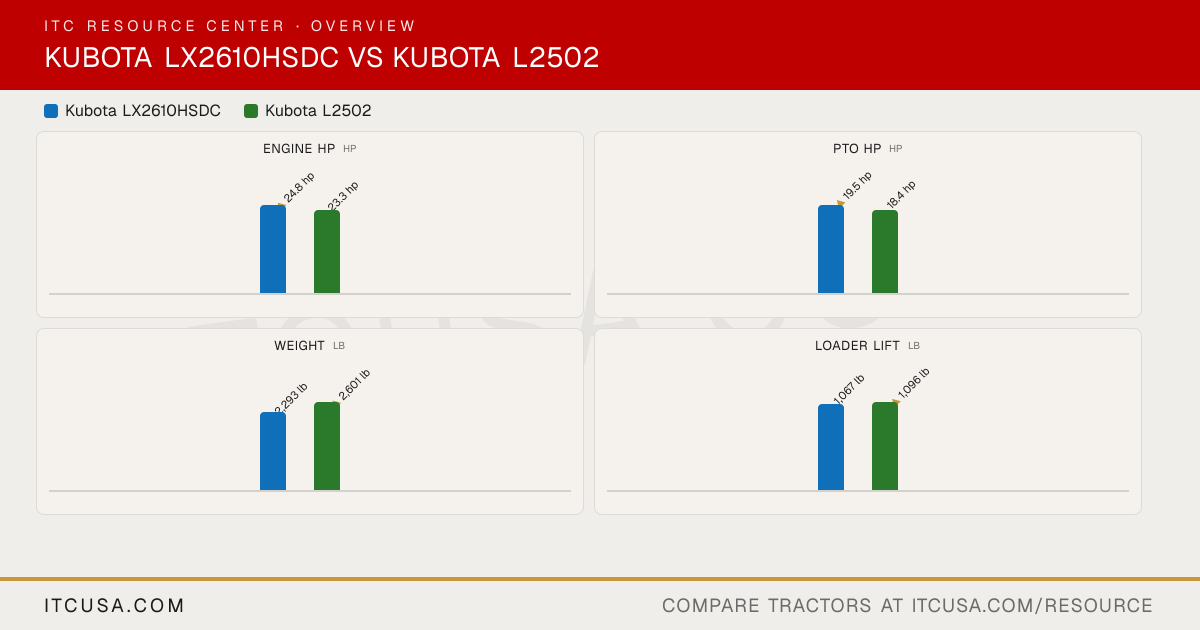

The headline numbers at a glance.

Kubota LX2610HSDCKubota L2502

Engine HPhp

▲24.8 hp

23.3 hp

PTO HPhp

▲19.5 hp

18.4 hp

Weightlb

2,293 lb

▲2,601 lb

Loader Liftlb

1,067 lb

▲1,096 lb

3-Pt Lift (24 in)lb

▲1,676 lb

1,389 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	KubotaLX2610HSDC	KubotaL2502


Engine Manufacturer	Kubota	Kubota
Engine Model	D1305-E4-D26-Q	D1703-M-DI-E4 / D1703-M-DI-E4K
Engine Type	E-TVCS, liquid cooled, 3-cylinder, diesel	Direct injection, vertical, water-cooled 4-cycle, diesel
No. of Cylinders	3	3
Displacement	77 in³	100.5 in³
Rated Engine Speed	2500 rpm	2200 rpm
Engine Power (Gross)	24.8 hp	23.3 hp
PTO Power	19.5 hp	18.4 hp
Engine Emissions Constraints	Not Published	Not Published
Cooling System Type	Pressurized radiator	Water-cooled
Air Cleaner	4.5 in Dual paper element	Dry type, single element
Fuel System	Indirect injection	Direct injection
Alternator	60 A, 12 V	40 A, 12 V

Pump Type	Dual pump	Not Published
Implement Flow	5.0 gpm	5.2 gpm
Steering Flow	3.7 gpm	3.1 gpm
Total Hydraulic Flow	8.7 gpm	8.28 gpm (5.15 + 3.13, computed)
Overall Hydraulic Pump Flow	8.7 gpm	8.28 gpm (5.15 + 3.13, computed)
Hydraulic System Type	Open center	Open center
Rear Remote Hydraulic Flow	Not Published	Not Published
No. of Standard Remote Valves	0	Not Published
No. of Optional Remote Valves	Optional, up to 2	Not Published

Fuel Tank Capacity	8.4 gal	11.1 gal
Coolant Capacity	4.5 qt	6.3 qt
Crankcase Capacity	4.2 qt	6.0 qt
Transmission / Hydraulic System Capacity	4.0 gal	HST (4WD): 6.9 gal; DT (2WD): 7.4 gal; DT (4WD): 7.5 gal
Front Axle Fluid Capacity	5.0 qt	4.8 qt

PTO Type	Independent	DT (2WD), DT (4WD): Transmission driven with overrunning clutch; HST (4WD): Live-independent hydraulic PTO with PTO brake, wet
PTO Rear	540 rpm	540 rpm
Mid-PTO Availability	2500 rpm	Not Published
Category, 3-Point Hitch	Category I	SAE Category I
Hitch Lift Capacity	2139 lb	1874 lb
Hitch Lift Capacity (at 24”)	1676 lb	1389 lb
Lift Control Type	Position control valve	Position control

Transmission Type	Hydrostatic transmission	DT (2WD), DT (4WD): Constant mesh with synchronized shuttle; HST (4WD): Hydrostatic transmission (3-range)
No. of Speeds	3 ranges	DT (2WD), DT (4WD): 8 forward, 8 reverse; HST (4WD): 3-range
Max Travel Speed (Forward)	11.2 mph	DT (2WD), DT (4WD): 10.7 mph; HST (4WD): 11.5 mph
Max Travel Speed (Reverse)	8.4 mph	DT (2WD), DT (4WD): 10.7 mph; HST (4WD): 10.3 mph
Clutch	Not Published	DT (2WD), DT (4WD): Dry type single stage; HST (4WD): Not Applicable
Differential Lock & Limited Slip Options	Differential lock standard	Rear differential lock, pedal operated

Frame Type	Not Published	Not Published
Steering	Hydraulic power steering	Integral type power steering
Brakes	Multi-plate wet disc	Mechanical, wet disc type
Seat Suspension & Adjustability	Deluxe high-back suspension seat	Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type	Not Published	Cast-iron front axle
Front Axle Rating	Not Published	Not Published
Drawbar Capacity	1100 lb	730 lb

Overall Length with 3-Point Hitch	103.9 in (without 3-point hitch)	DT (2WD): 110.6 in; DT (4WD), HST (4WD): 108.5 in (without 3-point hitch)
Overall Width	53.7 in	55.1 in
Wheelbase	65.6 in	DT (2WD): 63.8 in; DT (4WD), HST (4WD): 63.4 in
Ground Clearance	14.6 in	DT (2WD): 13.6 in; DT (4WD), HST (4WD): 13.4 in
Min. Turn Radius without Brakes	6.9 ft (with brake applied)	DT (2WD): 7.9 ft; DT (4WD), HST (4WD): 8.2 ft (with brake applied)
Height to Top of ROPS	Not Published	91.7 in
Height to Top of ROPS (folded)	Not Published	Not Published
Height to Top of Cab Model	84.6 in	Not Published

Tractor Weight (Base)	2293 lb	DT (2WD): 2601 lb; DT (4WD): 2811 lb; HST (4WD): 2833 lb
Weight with ROPS and Loader	Not Published	Not Published
Weight with Cab and Loader	Not Published	Not Published

Tire Size & Options	R1 Agricultural, R4 Industrial, R14	R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front	7.0-12	DT (2WD): 5.0-15; DT (4WD), HST (4WD): 7.2-16
R1 Agricultural - Rear	12.4-16	11.2-24
R3 Turf - Front	24x8.50-14	DT (2WD): 23X8.50-12; DT (4WD), HST (4WD): 25X8.50-14
R3 Turf - Rear	13.6-16	13.6-16
R4 Industrial - Front	23X8.50-14	DT (2WD): Not Applicable; DT (4WD), HST (4WD): 27X8.50-15
R4 Industrial - Rear	12.4-16	DT (2WD): Not Applicable; DT (4WD), HST (4WD): 15-19.5

Quick Attach Loader System	Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))	Front Loader (LA526 - 2 Lever Quick Coupler (OPT))
Loader Model	LA535	LA526
Loader Lift Height	84 in	LA526: 94.8 in
Loader Lift Capacity (Full Height)	1067 lb	LA526: 1,096 lb
Loader Breakout Force	2245 lb	Not Published

Warranty Length & Coverage	Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.	Not Published

Accessories that fit	Kubota LX2610/LX3310 Brush Guard Insert $259.00	Kubota L2502/L3302/L3902 HD Brush Guard Insert $269.00
