Kubota LX2610HSDC vs Massey Ferguson MF 1M.25 | Side-by-side comparison | ITC Resource Center
Compare Tractors

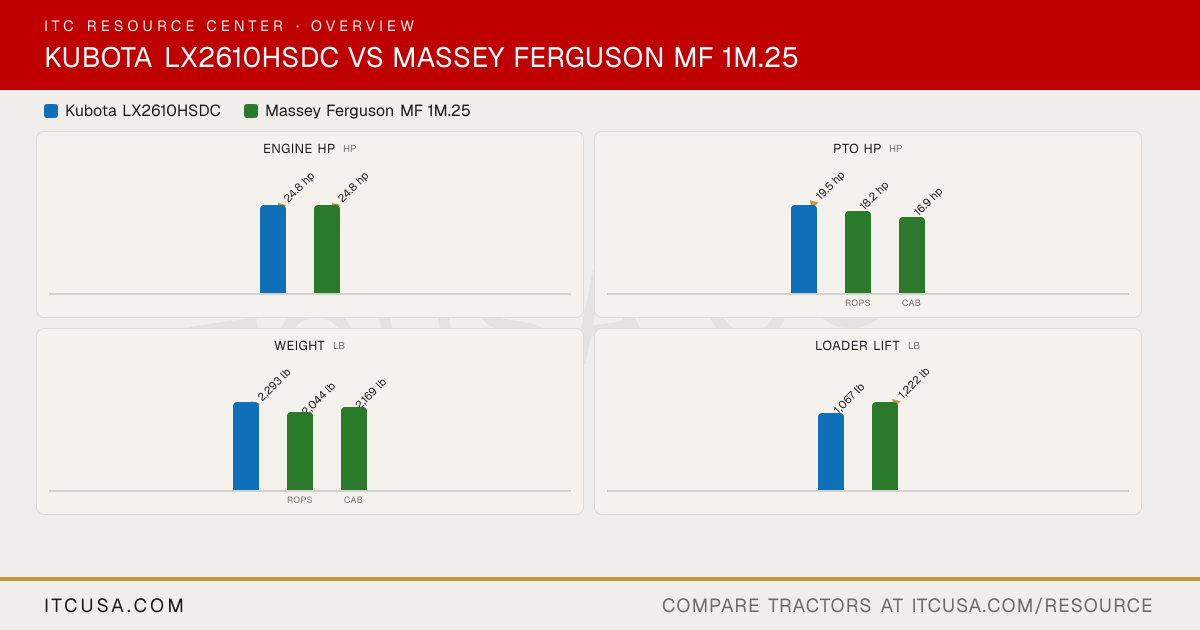

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaLX2610HSDC
Massey FergusonMF 1M.25
Engine Manufacturer
Kubota
Iseki
Engine Model
D1305-E4-D26-Q
Not Published
Engine Type
E-TVCS, liquid cooled, 3-cylinder, diesel
3-cylinder, liquid-cooled diesel
No. of Cylinders
3
3
Displacement
77 in³
91.4 in³
Rated Engine Speed
2500 rpm
2600 rpm
Engine Power (Gross)
24.8 hp
24.8 hp
PTO Power
19.5 hp
ROPS: 18.2 hp; CAB: 16.9 hp
Engine Emissions Constraints
Not Published
Not Published
Cooling System Type
Pressurized radiator
Liquid cooled
Air Cleaner
4.5 in Dual paper element
Not Published
Fuel System
Indirect injection
Not Published
Alternator
60 A, 12 V
Not Published
Pump Type
Dual pump
Not Published
Implement Flow
5.0 gpm
5.5 gpm
Steering Flow
3.7 gpm
3.2 gpm
Total Hydraulic Flow
8.7 gpm
8.7 gpm (5.5 + 3.2, computed)
Overall Hydraulic Pump Flow
8.7 gpm
8.7 gpm (5.5 + 3.2, computed)
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
0
2
No. of Optional Remote Valves
Optional, up to 2
Not Published
Fuel Tank Capacity
8.4 gal
7.4 gal
Coolant Capacity
4.5 qt
Not Published
Crankcase Capacity
4.2 qt
Not Published
Transmission / Hydraulic System Capacity
4.0 gal
Not Published
Front Axle Fluid Capacity
5.0 qt
Not Published
PTO Type
Independent
Independent
PTO Rear
540 rpm
540 rpm, 1.375 in
Mid-PTO Availability
2500 rpm
Independent, 2000 rpm (optional)
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
2139 lb
1,433 lb
Hitch Lift Capacity (at 24”)
1676 lb
1,091 lb
Lift Control Type
Position control valve
Not Published
Transmission Type
Hydrostatic transmission
Hydrostatic
No. of Speeds
3 ranges
Infinite forward and reverse (3-range)
Max Travel Speed (Forward)
11.2 mph
Not Published
Max Travel Speed (Reverse)
8.4 mph
Not Published
Clutch
Not Published
Not Published
Differential Lock & Limited Slip Options
Differential lock standard
Differential lock (LHS pedal)
Frame Type
Not Published
Not Published
Steering
Hydraulic power steering
Power steering
Brakes
Multi-plate wet disc
Internal wet disc
Seat Suspension & Adjustability
Deluxe high-back suspension seat
Not Published
Front Axle Type
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1100 lb
Not Published
Overall Length with 3-Point Hitch
103.9 in (without 3-point hitch)
116 in
Overall Width
53.7 in
45.7-52 in
Wheelbase
65.6 in
61.4 in
Ground Clearance
14.6 in
9.9-11 in
Min. Turn Radius without Brakes
6.9 ft (with brake applied)
Not Published
Height to Top of ROPS
Not Published
95.3-97.5 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
84.6 in
80-82.1 in
Tractor Weight (Base)
2293 lb
ROPS: 2,044 lb; Cab: 2,169 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R4 Industrial, R14
R1 Agricultural, R3 Turf
R1 Agricultural - Front
7.0-12
6.00-12
R1 Agricultural - Rear
12.4-16
9.5-18
R3 Turf - Front
24x8.50-14
24X8.50-12
R3 Turf - Rear
13.6-16
315X75D-15
R4 Industrial - Front
23X8.50-14
Not Published
R4 Industrial - Rear
12.4-16
Not Published
Quick Attach Loader System
Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Skid Steer
Loader Model
LA535
FL.2106
Loader Lift Height
84 in
FL.2106: 83 in
Loader Lift Capacity (Full Height)
1067 lb
FL.2106: 1,222 lb
Loader Breakout Force
2245 lb
FL.2106: 1,822 lb
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
