Compare Tractors

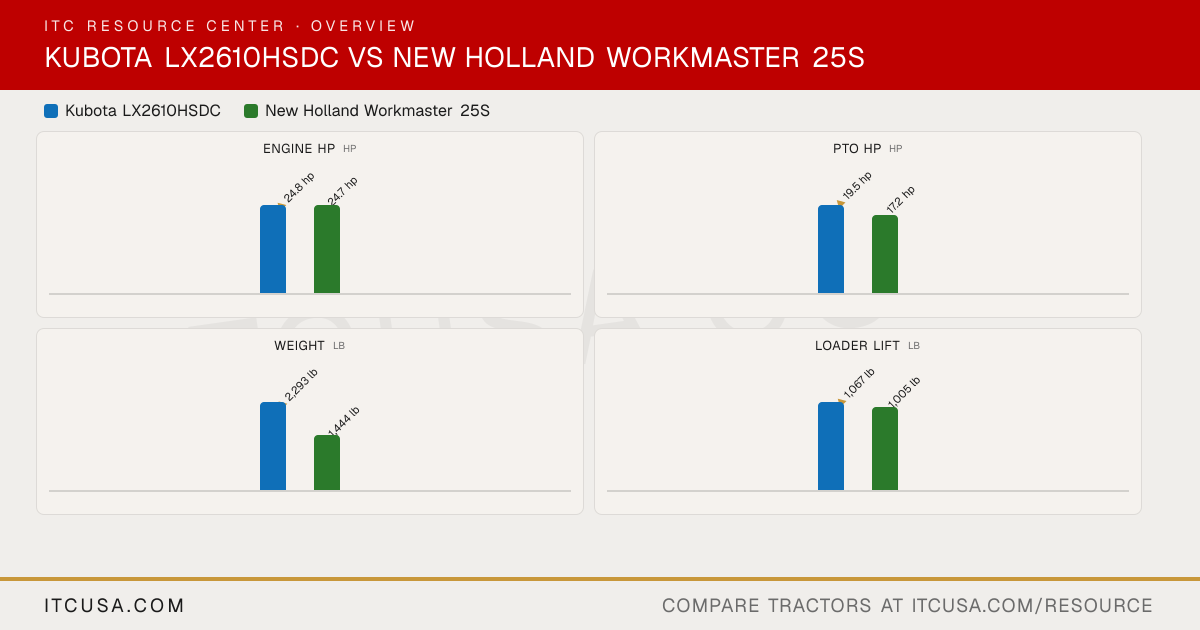

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaLX2610HSDC
New HollandWorkmaster 25S
Engine Manufacturer
Kubota
Yanmar
Engine Model
D1305-E4-D26-Q
n/a
Engine Type
E-TVCS, liquid cooled, 3-cylinder, diesel
3-cylinder, naturally aspirated diesel
No. of Cylinders
3
3
Displacement
77 in³
76.9 in³
Rated Engine Speed
2500 rpm
3000 rpm
Engine Power (Gross)
24.8 hp
24.7 hp
PTO Power
19.5 hp
17.2 hp
Engine Emissions Constraints
Not Published
Tier 4B Final
Cooling System Type
Pressurized radiator
Pressurized liquid with recirculating bypass
Air Cleaner
4.5 in Dual paper element
Not Published
Fuel System
Indirect injection
In-line injection pump
Alternator
60 A, 12 V
40 A, 12 V
Pump Type
Dual pump
Gear
Implement Flow
5.0 gpm
4.6 gpm
Steering Flow
3.7 gpm
2.1 gpm
Total Hydraulic Flow
8.7 gpm
6.7 gpm
Overall Hydraulic Pump Flow
8.7 gpm
6.7 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
0
0
No. of Optional Remote Valves
Optional, up to 2
1
Fuel Tank Capacity
8.4 gal
6.6 gal
Coolant Capacity
4.5 qt
3.5 qt
Crankcase Capacity
4.2 qt
3.0 qt
Transmission / Hydraulic System Capacity
4.0 gal
3.0 gal
Front Axle Fluid Capacity
5.0 qt
0.5 gal
PTO Type
Independent
Independent, electro-hydraulic engagement
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
2500 rpm
Standard (2,500 rpm)
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
2139 lb
992 lb at ball ends
Hitch Lift Capacity (at 24”)
1676 lb
728 lb
Lift Control Type
Position control valve
Lift-hold-lower
Transmission Type
Hydrostatic transmission
2-Range Hydrostatic / Dual Pedal
No. of Speeds
3 ranges
Infinite (2-range)
Max Travel Speed (Forward)
11.2 mph
9.1 mph
Max Travel Speed (Reverse)
8.4 mph
5.5 mph
Clutch
Not Published
Not Applicable
Differential Lock & Limited Slip Options
Differential lock standard
Mechanical, foot-operated rear diff lock
Frame Type
Not Published
Not Published
Steering
Hydraulic power steering
Central support, bevel gear type
Brakes
Multi-plate wet disc
Wet, multi-disc
Seat Suspension & Adjustability
Deluxe high-back suspension seat
Not Published
Front Axle Type
Not Published
4WD (FWD)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1100 lb
Not Published
Overall Length with 3-Point Hitch
103.9 in (without 3-point hitch)
97.4 in
Overall Width
53.7 in
46.7 in
Wheelbase
65.6 in
56.1 in
Ground Clearance
14.6 in
12 in
Min. Turn Radius without Brakes
6.9 ft (with brake applied)
94 in
Height to Top of ROPS
Not Published
90 in
Height to Top of ROPS (folded)
Not Published
64 in
Height to Top of Cab Model
84.6 in
87.4 in
Tractor Weight (Base)
2293 lb
n/a
Weight with ROPS and Loader
Not Published
1,444 lb (ROPS tractor only)
Weight with Cab and Loader
Not Published
1,805 lb (Cab tractor only)
Tire Size & Options
R1 Agricultural, R4 Industrial, R14
R3 Turf, R4 Industrial
R1 Agricultural - Front
7.0-12
Not Applicable
R1 Agricultural - Rear
12.4-16
Not Applicable
R3 Turf - Front
24x8.50-14
18X8.50-10
R3 Turf - Rear
13.6-16
26X12.0-12
R4 Industrial - Front
23X8.50-14
18X8.50-10
R4 Industrial - Rear
12.4-16
26X12.0-12
Quick Attach Loader System
Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
100LC: Quick Mount system (no tools)
Loader Model
LA535
n/a
Loader Lift Height
84 in
72 in
Loader Lift Capacity (Full Height)
1067 lb
1,005 lb
Loader Breakout Force
2245 lb
2,078 lb
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
