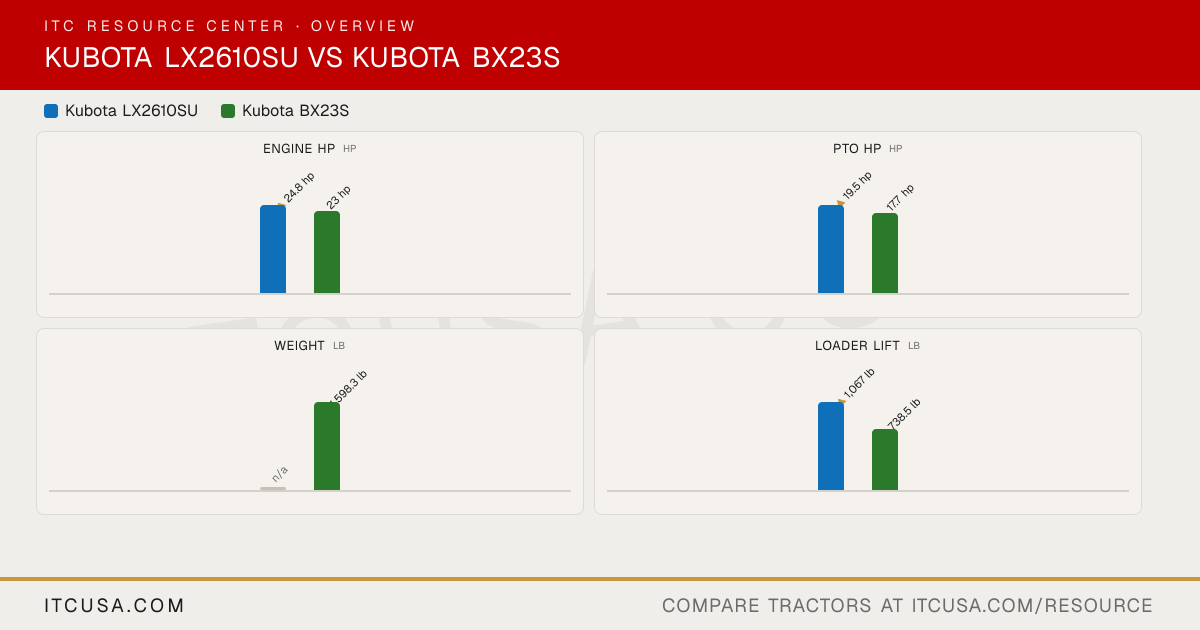

Kubota LX2610SU vs Kubota BX23S | Side-by-side comparison | ITC Resource Center
Compare Tractors
See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours.
Pump Type
Dual pump
Hydrostatic transmission
Steering Flow
Not Published
1.0 gpm
Implement Flow
Not Published
6.2 gpm (23.5 l/min.)
Total Hydraulic Flow
8.7 gpm
6.2 gpm
Hydraulic System Type
Open center
Open center tandem pump gear type
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
8.7 gpm
6.2 gpm
No. of Optional Remote Valves
Not Published
2 (optional; ISO 7241-1 series A or B)
No. of Standard Remote Valves
Not Published
2 valves
System Operating Pressure
n/a
12.3 MPa to 12.8 MPa
PTO Rear
540 rpm
STD 540 rpm
PTO Type
Independent
Live independent PTO (with hydraulic clutch)
Lift Control Type
Position control valve
Quarter-inching valve
Hitch Lift Capacity
2139 lb
1,213 lbs.
Mid-PTO Availability
Not Applicable
STD (2500rpm)
Category, 3-Point Hitch
Category I
SAE Category 1
Hitch Lift Capacity (at 24”)
1676 lb
680 lb
R3 Turf - Rear
Not Published
26×12-12
R3 Turf - Front
Not Published
18×8.5-10
Tire Size & Options
R1 Agricultural, R4 Industrial
Front Turf/Industrial: 18×8.5-10; Rear Turf/Industrial: 26×12-12; Bar tire N/A
R4 Industrial - Rear
12.4-16 / 15-19.5
26×12-12
R4 Industrial - Front
23X8.50-14 / 25X8.50-14
18×8.5-10
R1 Agricultural - Rear
12.4-16
Not Applicable
R1 Agricultural - Front
7.0-12
Not Applicable
Coolant Capacity
4.5 qt
0.8 gal (3.3 U.S.qts.)
Crankcase Capacity
4.2 qt
0.9 gal (3.4 U.S.qts.)
Fuel Tank Capacity
7.1 gal
6.6 gal (6.6 U.S.gals.)
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
4.0 gal
2.98 U.S. gals.
Loader Lift Height
84 in
71.0 in
Loader Breakout Force
2245 lb
6258 N (1407 lbs) [LA340] / 5719 N (1286 lbs) [LA340S]
Quick Attach Loader System
Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
