Compare Tractors

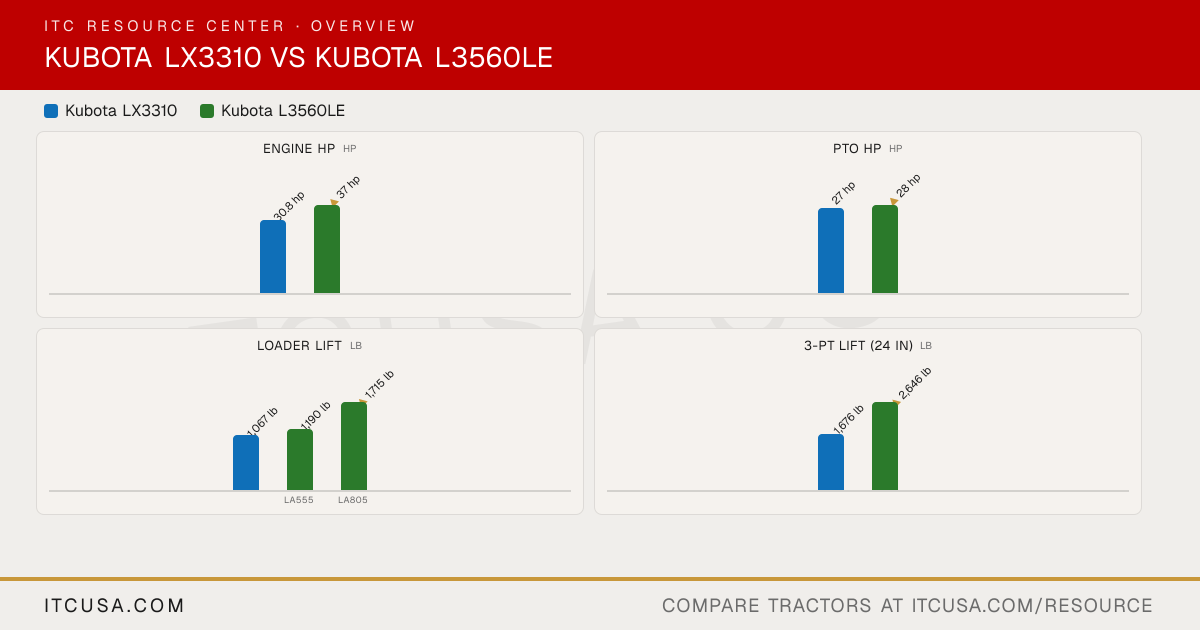

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaLX3310
KubotaL3560LE
PTO Power
27 hp
28 hp
Alternator
Not Published
40 A, 12 V
Air Cleaner
6.0 inch Dual paper element
Dry paper, dual element
Engine Type
E-TVCS, liquid cooled, 4-cylinder, diesel
Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated
Fuel System
Not Published
Electronic CRS (Common Rail System)
Displacement
91.4 in³
111.4 in³
No. of Cylinders
4
3
Rated Engine Speed
2500 rpm
2600 rpm
Cooling System Type
Pressurized radiator
Liquid-cooled
Engine Manufacturer
Kubota
Kubota
Engine Power (Gross)
30.8 hp
37 hp
Engine Emissions Constraints
Not Published
Tier 4
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Applicable
Not Published
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
Dual pump
Not Published
Steering Flow
Not Published
4.7 gpm
Implement Flow
Not Published
8.1 gpm
Total Hydraulic Flow
8.7 gpm
12.8 gpm
Hydraulic System Type
Open center
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
8.7 gpm
12.8 gpm
No. of Optional Remote Valves
Not Published
Optional, up to 3
No. of Standard Remote Valves
Not Published
Not Published
PTO Rear
540 rpm
1 speed: 540 rpm
PTO Type
Independent
Independent
Lift Control Type
Position control valve
Position control
Hitch Lift Capacity
2139 lb
Not Published
Mid-PTO Availability
2500 rpm
Optional
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity (at 24”)
1676 lb
2,646 lb
R3 Turf - Rear
Not Published
Not Published
R3 Turf - Front
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R4 Industrial
Agricultural, Turf or Industrial tires (options)
R4 Industrial - Rear
12.4-16
Not Published
R4 Industrial - Front
23X8.50-14
Not Published
R1 Agricultural - Rear
12.4-16
12.4-24
R1 Agricultural - Front
7.0-12
7.0-16
Coolant Capacity
4.5 qt
Not Published
Crankcase Capacity
5.1 qt
Not Published
Fuel Tank Capacity
8.3 gal
13.5 gal
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
4.0 gal
Not Published
Loader Lift Height
84 in
LA555: 96.4 in; LA805: 104.7 in
Loader Breakout Force
2245 lb
LA555: 2030 lb (9029 N); LA805: 2549 lb (11341 N)
Quick Attach Loader System
Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
