Kubota LX3310HSDC vs Kubota L2501 | Side-by-side comparison | ITC Resource Center
Compare Tractors

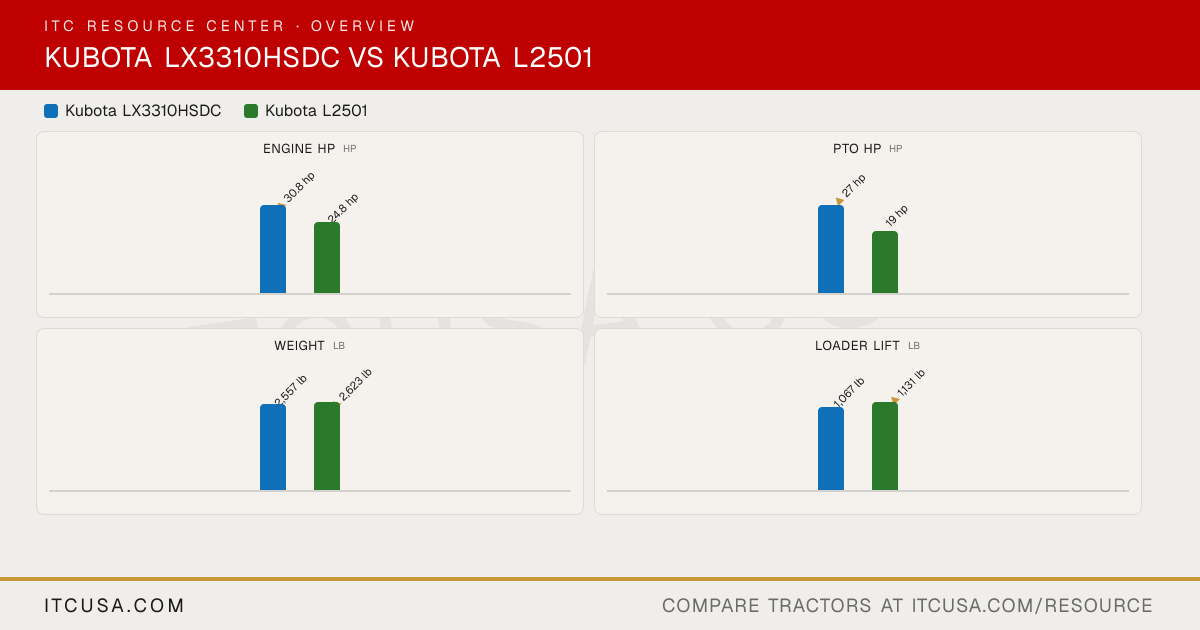

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaLX3310HSDC
KubotaL2501
Engine Manufacturer
Kubota
Kubota
Engine Model
V1505-CR-TE5-D36Q1
D1703-M-DI-E4
Engine Type
E-CDIS, liquid cooled, 4-cylinder, diesel
Direct injection, vertical, water-cooled, 4-cycle diesel
No. of Cylinders
4
3
Displacement
91.5 in³
100.47 in³
Rated Engine Speed
2500 rpm
2200 rpm
Engine Power (Gross)
30.8 hp
24.8 hp
PTO Power
27 hp
19 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Pressurized radiator
Water-cooled
Air Cleaner
6.0 in Dual paper element
Dry paper single element (dual optional)
Fuel System
Common Rail System (CRS)
Direct injection
Alternator
60 A, 12 V
40 A, 12 V
Pump Type
Dual pump
Open center tandem pump, gear type
Implement Flow
5.0 gpm
5.15 gpm
Steering Flow
3.7 gpm
3.13 gpm
Total Hydraulic Flow
8.7 gpm
8.26 gpm
Overall Hydraulic Pump Flow
8.7 gpm
8.26 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
0
Not Published
No. of Optional Remote Valves
Optional, up to 2
Up to 3 (self canceling detent valve or float detent valve options)
Fuel Tank Capacity
8.4 gal
10.0 gal
Coolant Capacity
4.5 qt
6.3 qt
Crankcase Capacity
5.0 qt
6.0 qt
Transmission / Hydraulic System Capacity
4.0 gal
6.2 gal
Front Axle Fluid Capacity
5.0 qt
4.8 qt
PTO Type
Independent
Live-continuous running
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
2500 rpm
No mid-PTO offered
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
2139 lb
1918 lb
Hitch Lift Capacity (at 24”)
1676 lb
1389 lb
Lift Control Type
Position control valve
Position control
Transmission Type
Hydrostatic transmission
Hydrostatic transmission (3-range)
No. of Speeds
3 ranges
3-range
Max Travel Speed (Forward)
13.6 mph
11.5 mph
Max Travel Speed (Reverse)
10.3 mph
10.3 mph
Clutch
Not Published
Not Applicable
Differential Lock & Limited Slip Options
Differential lock standard
Rear differential lock standard
Frame Type
Not Published
Not Published
Steering
Hydraulic power steering
Integral type power steering
Brakes
Multi-plate wet disc
Wet disc type
Seat Suspension & Adjustability
Deluxe high-back suspension seat
Suspension seat with fore/aft travel adjustment and suspension tension adjustment
Front Axle Type
Not Published
Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating
Not Published
2865 lb (at 43.1 in tread)
Drawbar Capacity
1100 lb
730 lb
Overall Length with 3-Point Hitch
103.9 in (without 3-point hitch)
106.3 in (without 3-point hitch)
Overall Width
53.7 in
55.1 in
Wheelbase
65.6 in
63.3 in
Ground Clearance
14.6 in
13.4 in
Min. Turn Radius without Brakes
6.9 ft (with brake applied)
8.2 ft (with brake applied)
Height to Top of ROPS
Not Published
91.7 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
84.6 in
Not Published
Tractor Weight (Base)
2557 lb
2623 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R4 Industrial, R14
R1 Agricultural; R4 Industrial
R1 Agricultural - Front
7.0-12
7.2-16
R1 Agricultural - Rear
12.4-16
11.2-24
R3 Turf - Front
24x8.50-14
Not Published
R3 Turf - Rear
13.6-16
Not Published
R4 Industrial - Front
23X8.50-14
27X8.50-15
R4 Industrial - Rear
12.4-16
15-19.5
Quick Attach Loader System
Front Loader (LA535 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Front Loader (LA525 - 2 Lever Quick Coupler)
Loader Model
LA535
LA525
Loader Lift Height
84 in
94.3 in
Loader Lift Capacity (Full Height)
1067 lb
1131 lb
Loader Breakout Force
2245 lb
2373 lbf
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
