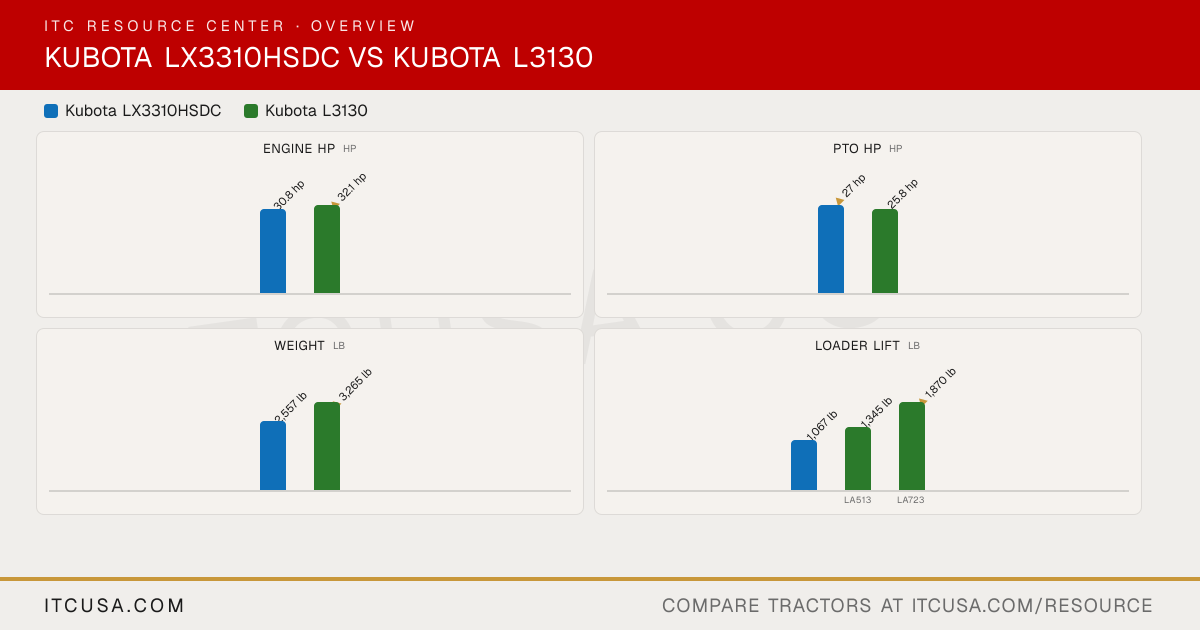

▶ EngineEngine Manufacturer Kubota Kubota Engine Model V1505-CR-TE5-D36Q1 Not Published Engine Type E-CDIS, liquid cooled, 4-cylinder, diesel Not Published No. of Cylinders 4 3 Displacement 91.5 in³ 91.5 in³ Rated Engine Speed 2500 rpm Not Published Engine Power (Gross) 30.8 hp 32.1 hp PTO Power 27 hp 25.8 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Pressurized radiator Not Published Air Cleaner 6.0 in Dual paper element Not Published Fuel System Common Rail System (CRS) Indirect injection Alternator 60 A, 12 V Not Published ▶ HydraulicsPump Type Dual pump Single pump (position-control) Implement Flow 5.0 gpm 8.3 gpm Steering Flow 3.7 gpm 4.9 gpm Total Hydraulic Flow 8.7 gpm 13.2 gpm Overall Hydraulic Pump Flow 8.7 gpm 13.2 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves None Not Published No. of Optional Remote Valves Optional, up to 2 3 ▶ Fluid CapacityFuel Tank Capacity 8.4 gal 10.6 gal Coolant Capacity 4.5 qt 6.3 qt Crankcase Capacity 5.0 qt 6.0 qt Transmission / Hydraulic System Capacity 4.0 gal 11.1 gal Front Axle Fluid Capacity 5.0 qt Not Published ▶ PTO & HitchPTO Type Independent Independent, hydraulic clutch PTO Rear 540 rpm 540 rpm Mid-PTO Availability 2500 rpm Optional mid-PTO, independent, 2000 rpm Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2,139 lb 3,750 lb (at lift points) Hitch Lift Capacity (at 24”) 1,676 lb 2,650 lb Lift Control Type Position control valve Position control (with optional draft control) ▶ Transmission & DrivetrainTransmission Type Hydrostatic transmission F (2WD), DT (4WD): 8-speed fully synchronized main and shuttle (16-speed with creep option) No. of Speeds 3 ranges 8F/8R (16F/16R with creep option) Max Travel Speed (Forward) 13.6 mph Not Published Max Travel Speed (Reverse) 10.3 mph Not Published Clutch Not Published Dry type single stage Differential Lock & Limited Slip Options Differential lock standard Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydraulic power steering Hydrostatic power steering Brakes Multi-plate wet disc Wet disk type Seat Suspension & Adjustability Deluxe high-back suspension seat Not Published Front Axle Type Not Published Not Published Front Axle Rating Not Published Not Published Drawbar Capacity 1,100 lb Not Published ▶ Dimensions & ManeuverabilityOverall Width 53.7 in 56.3 in (minimum tread) Wheelbase 65.6 in 71.1 in Ground Clearance 14.6 in 14.6 in Min. Turn Radius without Brakes 6.9 ft (with brake applied) 8.9 ft (with brake applied) Height to Top of ROPS Not Published 88.8 in (with ROPS) Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 84.6 in Not Published Overall Length 103.9 in (without 3-point hitch) 119.1 in (without 3-point hitch) ▶ WeightTractor Weight (Base) 2,557 lb 3,265 lb (with ROPS) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial, R14 Standard Front: 7-16; Rear: 12.4-24 R1 Agricultural - Front 7-12 7-16 R1 Agricultural - Rear 12.4-16 12.4-24 R3 Turf - Front 24x8.50-14 Not Published R3 Turf - Rear 13.6-16 Not Published R4 Industrial - Front 23X8.50-14 Not Published R4 Industrial - Rear 12.4-16 Not Published ▶ Loader & AttachmentsQuick Attach Loader System LA535: 2-lever quick coupler, standard; Swift-Tach, optional LA513 and LA723 loaders offered Loader Model LA535 LA513; LA723 Loader Lift Height 84 in LA513: 96.5 in; LA723: 102.4 in Loader Lift Capacity (Full Height) 1,067 lb LA513: 1,345 lb; LA723: 1,870 lb Loader Breakout Force 2,245 lb LA513: 2,160 lbf (at 19.7 in); LA723: 2,605 lbf (at 19.7 in) (19.7 in forward of pivot pin) ▶ WarrantyWarranty Length & Coverage Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours Not Published ▶ ITC Company AccessoriesAccessories that fit None tagged yet
