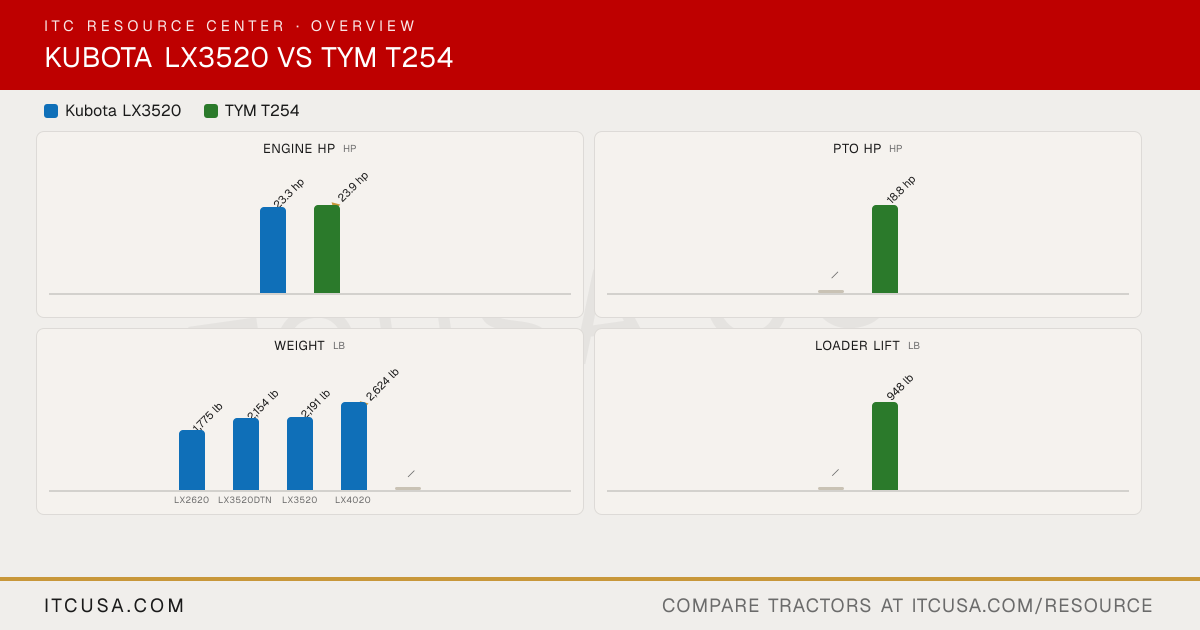

▶ EnginePTO Power 28.7 (21.4) HP (kW) 18.8 hp Air Cleaner LX2620: 4.5 inch paper filter (with dual filter); LX3520/LX4020: 6 inch paper filter (with dual element) Single dry Engine Type Indirect injection, vertical, water-cooled, 4-cycle diesel and Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger 3-cylinder, naturally aspirated diesel Fuel System Common Rail (CRS) diesel IDI Displacement 77 in³ 77.3 in³ No. of Cylinders 4 3 Rated Engine Speed 2500 rpm 3000 rpm Cooling System Type Pressurized radiator with radial air flow fan Water-cooled Engine Manufacturer Kubota Yanmar Engine Power (Gross) 23.3 hp 23.9 hp Alternator — 40 A, 12 V Engine Emissions Constraints — Tier 4 ▶ WeightTractor Weight (Base) LX2620: 1,775 lbs; LX3520DTN: 2,154 lbs; LX3520: 2,191 lbs; LX4020: 2,624 lbs — Weight with ROPS and Loader — Not Published Weight with Cab and Loader — Not Published ▶ WarrantyWarranty Length & Coverage Full warranty: 2 years / 2,000 hours | Powertrain warranty: 6 years / 2,000 hours Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes. ▶ HydraulicsPump Type Dual pump Single gear pump Total Hydraulic Flow 9.1 (34.5) gpm (l/min.) 6.9 gpm Hydraulic System Type Open center Open center System Operating Pressure Open center system — Overall Hydraulic Pump Flow 9.1 (34.5) gpm (l/min.) 6.9 gpm Steering Flow — 2.8 gpm Implement Flow — 4.2 gpm Rear Remote Hydraulic Flow — Not Published No. of Optional Remote Valves — 1 No. of Standard Remote Valves — 0 ▶ PTO & HitchPTO Rear 540 rpm 540 rpm PTO Type Independent Independent Lift Control Type Position control valve Position control Hitch Lift Capacity 2348 (1065) lbs. (kg) 1,214 lb Mid-PTO Availability 2460 RPM Available Category, 3-Point Hitch Category I Category I (Narrow) Hitch Lift Capacity (at 24”) LX2620: 1,819 lbs; LX3520/LX4020: 1,962 lbs 1,101 lb ▶ Tire OptionsR3 Turf - Rear 16.6-16 29x12.50-15 R3 Turf - Front 24x8.5-14 20x8.00-10 Tire Size & Options Front R1: 7-12; R4: 23×8.50-12; R4 large: 25×8.50-14; R14: 23×8.50-12; R14 large: 25×8.50-14; TURF: 24×8.50-14; Rear R1: 12.4-16; R4: 14-17.5; R14: 14-17.5; TURF: 13.6-16; R4 large: 15-19.5; R14 large: 15-19.5 R1 Agricultural, R3 Turf, R4 Industrial; R4 Lg Industrial (optional) R4 Industrial - Rear 14-17.5 or 15-19.5 27x12.5-15; 12-16.5 R4 Industrial - Front 23x8.5-12 or 25x8.5-14 20x8.00-10; 23x8.50-12 R1 Agricultural - Rear 320/85D16 9.5-16 R1 Agricultural - Front 180/85D12 6.0-12 ▶ Fluid CapacityCoolant Capacity LX2620: 4.5 qts (4.3 ℓ); LX3520/LX4020: 5.7 qts (5.4 ℓ) 3.8 qt Crankcase Capacity LX2620: 4.2 qts (4.0 ℓ); LX3520/LX4020: 5.0 qts (4.7 ℓ) 2.9 qt Fuel Tank Capacity LX2620: 7.1 gal (27 ℓ); LX3520/LX4020: 8.5 gal (32 ℓ) 5.8 gal Transmission / Hydraulic System Capacity 5.5 (21.0) gal (ℓ) 3.7 gal Front Axle Fluid Capacity — 3.7 qt ▶ Loader & AttachmentsLoader Lift Height 87.6 (2226) in. (mm) 75 in Quick Attach Loader System 2-Lever Quick Coupler (Standard); Swift-Tach (Optional) TX25P: Quick attach mechanism Loader Lift Capacity (Full Height) 1100 (499) lbs. (kg) 948 lb Loader Breakout Force — 1,680 lb ▶ Transmission & DrivetrainClutch N/A Not applicable No. of Speeds HST (3 range) Infinite 2-Range Transmission Type HST (3 ranges) HST Max Travel Speed (Forward) 17.0 (0-27.4) mph (km/h) 11.0 mph Max Travel Speed (Reverse) 13.0 (0-20.8) mph (km/h) Not Published Differential Lock & Limited Slip Options Standard Differential lock ▶ Chassis, Steering & ControlsBrakes Multi-plate wet disk Wet disc Steering Hydrostatic power steering Hydrostatic Seat Suspension & Adjustability Deluxe suspension seat (high back, designed to absorb shock) Ergonomic seating Frame Type — Not Published Front Axle Type — Not Published Drawbar Capacity — Not Published Front Axle Rating — Not Published ▶ Dimensions & ManeuverabilityWheelbase 66.7 (1695) in. (mm) 57.5 in Overall Width 53.7 (1365) in. (mm) 45.8 in Overall Length LX2620: 101.8 in.; LX3520DTN: 98.2 in.; LX3520/LX4020: 101.6-103.9 in. (2580-103.9 in) — Ground Clearance 12.8 (325) in. (mm) 9.4 in Height to Top of ROPS LX3520 Narrow: 56.7 in. (folded) 91.3 in Height to Top of ROPS (folded) 56.7 (1440) in. (mm) Not Published Min. Turn Radius without Brakes 7.5 (2.3) feet (m) Front drive disengaged 100 in Overall Length with 3-Point Hitch 101.8 (2586) in. (mm) 100.5 in Height to Top of Cab Model — Not Published ▶ ITC Company AccessoriesAccessories that fit None tagged yet
