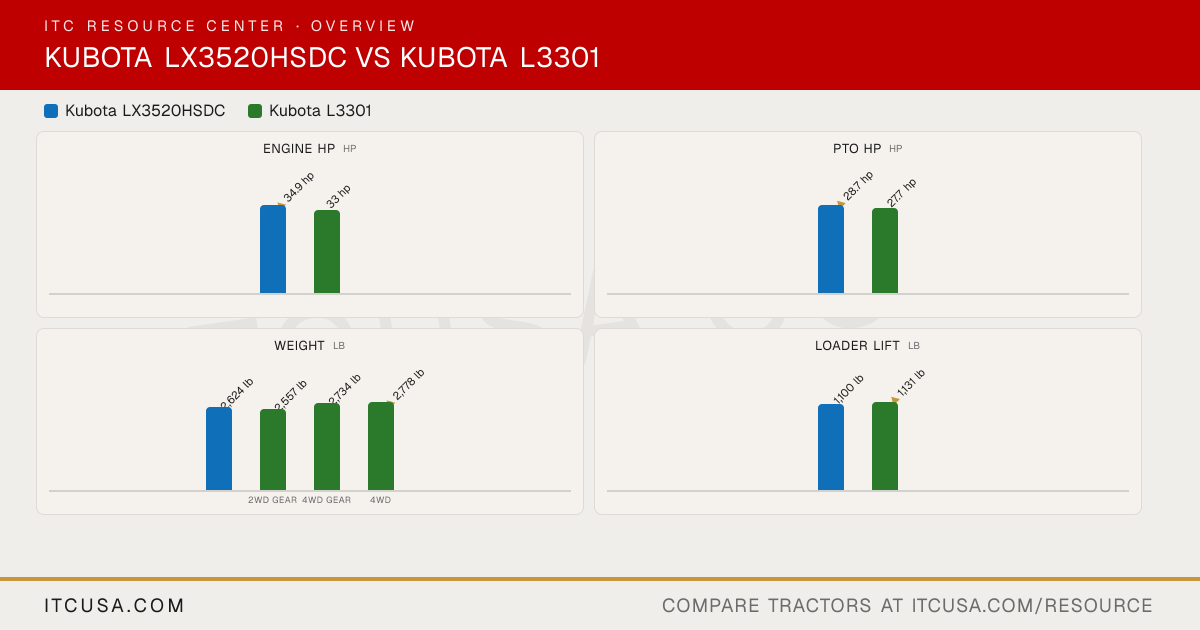

▶ EngineEngine Manufacturer Kubota Kubota Engine Model V1505-CR-TE5-D40Q4 F (2WD gear), DT (4WD gear): D1803-CR-E4-LB1; HST (4WD): D1803-CR-E4-LB2 Engine Type Turbocharged, direct injection, liquid-cooled diesel 3-cylinder, multi-valve, naturally aspirated, common-rail, liquid-cooled diesel No. of Cylinders 4 3 Displacement 91.4 in³ 111.4 in³ Rated Engine Speed 2700 rpm 2700 rpm Engine Power (Gross) 34.9 hp 33 hp PTO Power 28.7 hp F (2WD gear), DT (4WD gear): 27.7 hp; HST (4WD): 26.2 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Pressurized radiator Liquid-cooled, water with pressurized radiator Air Cleaner 6 in paper filter (with dual element) Dry paper single element Fuel System Direct injection Common-rail, direct injection, electronic control Alternator Not Published 40 A, 12 V ▶ HydraulicsPump Type Dual pump Open center tandem pump, gear type Implement Flow 5.4 gpm 6.3 gpm Steering Flow 4.1 gpm 3.8 gpm Total Hydraulic Flow 9.5 gpm 10.1 gpm Overall Hydraulic Pump Flow 9.5 gpm 10.1 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves None Not Published No. of Optional Remote Valves Optional, up to 2 Up to 3: self-canceling detent valve or float detent valve ▶ Fluid CapacityFuel Tank Capacity 8.5 gal 11.1 gal Coolant Capacity 5.7 qt 6.3 qt Crankcase Capacity 5.0 qt 7.1 qt Transmission / Hydraulic System Capacity 5.5 gal F (2WD gear): 7.4 gal; DT (4WD gear): 7.5 gal; HST (4WD): 6.2 gal Front Axle Fluid Capacity 4.8 qt 4.8 qt ▶ PTO & HitchPTO Type Independent F (2WD gear), DT (4WD gear): Transmission driven with overrunning clutch; HST (4WD): Live-continuous running PTO Rear 540 rpm 540 rpm Mid-PTO Availability 2460 rpm No mid-PTO offered Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 2,535 lb 1,874 lb (at lift points) Hitch Lift Capacity (at 24”) 1,962 lb 1,433 lb Lift Control Type Position control valve Position control ▶ Transmission & DrivetrainTransmission Type HST (3 ranges) F (2WD gear), DT (4WD gear): manual transmission with synchronized shuttle; HST (4WD): hydrostatic transmission No. of Speeds HST (3 ranges) F (2WD gear), DT (4WD gear): 8F/8R; HST (4WD): 3-range Max Travel Speed (Forward) 17.0 mph F (2WD gear), DT (4WD gear): 13.2 mph; HST (4WD): 14.1 mph Max Travel Speed (Reverse) 13.0 mph F (2WD gear), DT (4WD gear): 13.1 mph; HST (4WD): 12.7 mph Clutch Not Published Dry type single stage Differential Lock & Limited Slip Options Standard Rear differential lock standard ▶ Chassis, Steering & ControlsFrame Type Not Published Two-post foldable ROPS (factory certified) with retractable seat belt Steering Hydrostatic power steering Integral power steering Brakes Multi-plate wet disk Mechanical wet disc type, pedals can be locked together Seat Suspension & Adjustability Deluxe suspension seat (high back, designed to absorb shock) Not Published Front Axle Type Not Published F (2WD gear): tubular steel, non-adjustable tread spacing; DT (4WD gear), HST (4WD): bevel-gear front axle, non-adjustable tread spacing Front Axle Rating Not Published 2,865 lb (at 41.3 in tread, 2WD and 4WD models) Drawbar Capacity 1,100 lb 730 lb ▶ Dimensions & ManeuverabilityOverall Width 53.7 in 55.1 in Wheelbase 66.7 in 63.3 in Ground Clearance 8.9 in F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.5 in Min. Turn Radius without Brakes 7.5 ft (with brake applied) F (2WD gear): 8.9 ft; DT (4WD gear), HST (4WD): 10.5 ft Height to Top of ROPS Not Published 97.1 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 85.6 in Not Published Overall Length 116.1 in (with 3-point hitch) F (2WD gear): 119.1 in; DT (4WD gear), HST (4WD): 116.3 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 2,624 lb F (2WD gear): 2,557 lb; DT (4WD gear): 2,734 lb; HST (4WD): 2,778 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, R4 Industrial, R14 R1 Agricultural (standard); R3 Turf; R4 Industrial (4WD) R1 Agricultural - Front 180/85D12 F (2WD gear): 5-15 (7.5L-15 optional); DT (4WD gear), HST (4WD): 7.2-16 R1 Agricultural - Rear 320/85D16 11.2-24 R3 Turf - Front 24x8.5-14 F (2WD gear): 23x8.5-12; DT (4WD gear), HST (4WD): 25x8.5-14 R3 Turf - Rear Not Published 13.6-16 R4 Industrial - Front 23x8.5-14, 23x8.5-12 or 25x8.5-14 27x8.5-15 (4WD) R4 Industrial - Rear 12.4-16, 14-17.5 or 15-19.5 15-19.5 (4WD) ▶ Loader & AttachmentsQuick Attach Loader System LA545: 2-lever quick coupler, standard; Swift-Tach, optional LA525: 2-lever quick coupler, tool-free attach and detach Loader Model LA545 LA525 Loader Lift Height 87.6 in (at pivot pin) LA525: 94.3 in (at pivot pin) Loader Lift Capacity (Full Height) 1,100 lb (at pivot pin) LA525: 1,131 lb (at pivot pin, maximum height) Loader Breakout Force Not Published LA525: 2,462 lbf (at bucket pivot pin) ▶ WarrantyWarranty Length & Coverage Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours 24 months or 1500 hours (general)
