Compare Tractors

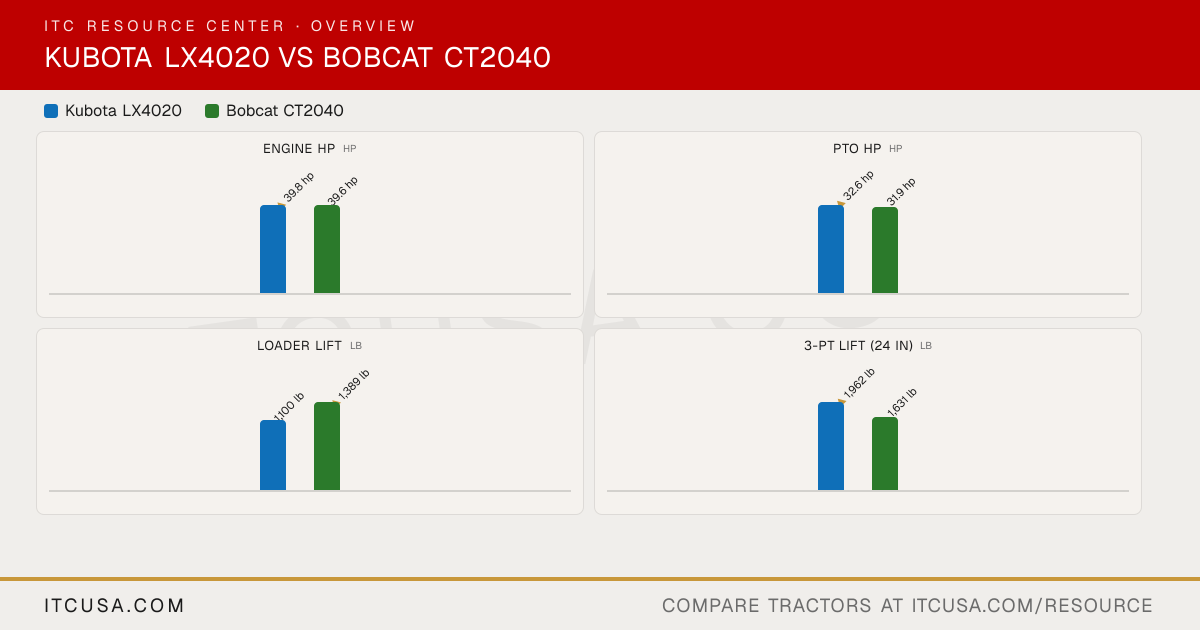

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaLX4020
BobcatCT2040
PTO Power
32.6 hp
31.9 hp
Alternator
Not Published
alternator
Air Cleaner
6 inch paper filter (with dual element)
NOT FOUND — no source reviewed explicitly states an air cleaner type for the CT2040
Engine Type
Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged
Diesel
Fuel System
Not Published
Common rail direct injection
Displacement
91.4 in³
111.4 in³
No. of Cylinders
4
3
Rated Engine Speed
2700 rpm
2600 rpm
Cooling System Type
Pressurized radiator
liquid-cooling
Engine Manufacturer
Kubota
Daedong
Engine Power (Gross)
39.8 hp
39.6 hp
Engine Emissions Constraints
Not Published
Stage V
Engine Model
n/a
Daedong 0.5 gal 3-cyl diesel
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Applicable
Not Applicable
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
24 months or 1,500 hours (whichever occurs first)
Pump Type
Dual pump
Gear
Steering Flow
Not Published
4.5 gpm
Implement Flow
Not Published
11.7 gpm 44.3 lpm
Total Hydraulic Flow
9.5 gpm
11.4 gpm
Hydraulic System Type
Open center
Open Center
Rear Remote Hydraulic Flow
Not Published
Optional
Overall Hydraulic Pump Flow
9.5 gpm
11.4 gpm
No. of Optional Remote Valves
Not Published
NOT FOUND
No. of Standard Remote Valves
Not Published
1/2
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Live
Lift Control Type
Position control valve
Hydraulic Position Control System
Hitch Lift Capacity
2535 lb
1631 lb.
Mid-PTO Availability
2460 rpm
Optional: 1988 rpm
Category, 3-Point Hitch
Category I
Category 1
Hitch Lift Capacity (at 24”)
1962 lb
1,631 lb
R3 Turf - Rear
Option 1: 13.6-16; Option 2: 16.6-16
41 x 14-20/4
R3 Turf - Front
24X8.50-14
28 x 8.5-15/6
Tire Size & Options
R1 Agricultural, R3 Turf
Front AG. (TURF, INDUSTRIAL) 7-16 (28 x 8.5-15/6, 27X8.5-15) | Rear AG. (TURF, INDUSTRIAL) 11.2-24 (41 x 14-20/4, 15-19.5)
R4 Industrial - Rear
Not Applicable
15-19.5
R4 Industrial - Front
Not Applicable
27X8.5-15
R1 Agricultural - Rear
320/85D16
11.2-24
R1 Agricultural - Front
180/85D12
7-16
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
5.0 qt
6.4 qts
Fuel Tank Capacity
8.5 gal
9.0 gal.
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
5.5 gal
Not Published
Loader Lift Height
87.6 in
99.6 in.
Loader Breakout Force
Not Published
3285 lb.
Quick Attach Loader System
Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
