Kubota LX4020 vs Bobcat CT2540 | Side-by-side comparison | ITC Resource Center
Compare Tractors

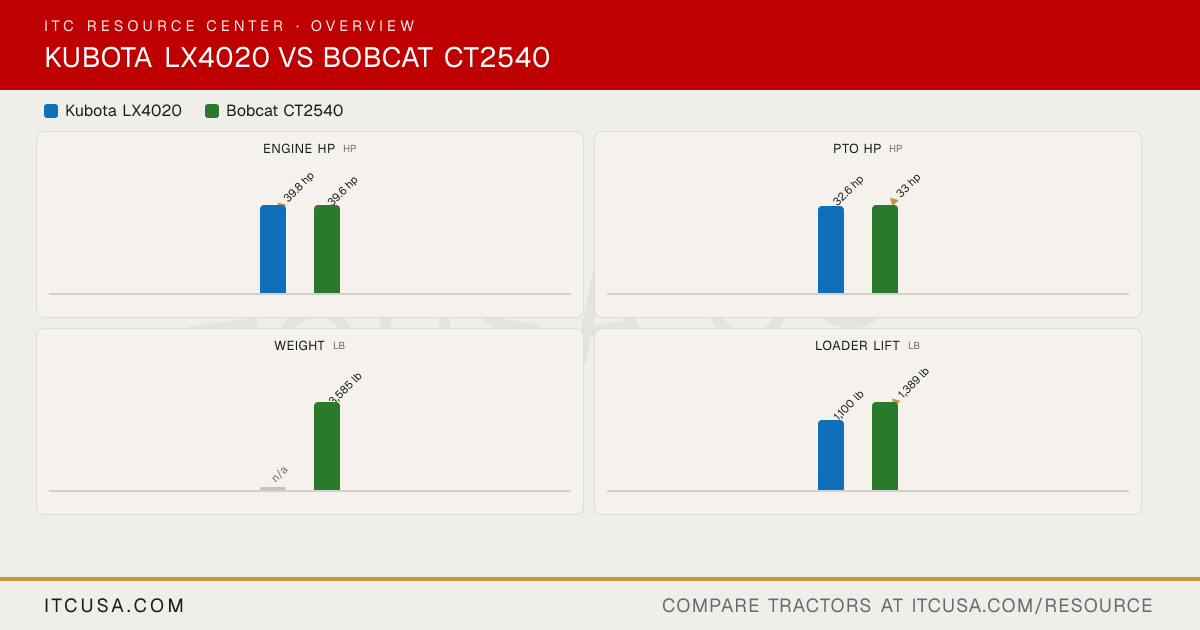

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaLX4020
BobcatCT2540
PTO Power
32.6 hp
33 hp
Alternator
Not Published
75 A, 12 V
Air Cleaner
6 inch paper filter (with dual element)
Dry type, replaceable
Engine Type
Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged
3 cylinder, water cooled, 4 cycle, Vertical In-Line Common Rail Direct Injection (CRDI)
Fuel System
Not Published
Common Rail Direct Injection (CRDI)
Displacement
91.4 in³
109.8 in³
No. of Cylinders
4
3
Rated Engine Speed
2700 rpm
2600 rpm
Cooling System Type
Pressurized radiator
Water cooled
Engine Manufacturer
Kubota
Daedong
Engine Power (Gross)
39.8 hp
39.6 hp
Engine Emissions Constraints
Not Published
Stage V
Engine Model
n/a
Daedong 0.5 gal 3-cyl diesel
Weight with ROPS and Loader
Not Published
3585 lbs
Weight with Cab and Loader
Not Applicable
3,642 lb
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
24 months of coverage from defects in material and workmanship or 1,500 hours of usage (whichever occurs first)
Pump Type
Dual pump
Gear
Steering Flow
Not Published
4.5 gpm
Implement Flow
Not Published
6.9 gpm
Total Hydraulic Flow
9.5 gpm
11.3 gpm
Hydraulic System Type
Open center
Open Center
Rear Remote Hydraulic Flow
Not Published
NOT FOUND — no source reviewed explicitly lists a separate 'Rear Remote Hydraulic Flow' figure for the CT2540. Sources only report total Implement Pump Flow of 11.7 gpm (44.5 Lpm).
Overall Hydraulic Pump Flow
9.5 gpm
11.7 gpm (44.5 Lpm)
No. of Optional Remote Valves
Not Published
NOT FOUND — no source reviewed explicitly lists a count of *optional* remote valves for the CT2540. The spec sheet at tractorgearbox.com lists 'Number of Standard Remote Valves: 1/2' only.
No. of Standard Remote Valves
Not Published
Std. (4 port)
PTO Rear
540 rpm
540/540E RPM
PTO Type
Independent
Independent
Lift Control Type
Position control valve
Position
Hitch Lift Capacity
2535 lb
2,270.7 lb
Mid-PTO Availability
2460 rpm
2000.0 RPM
Category, 3-Point Hitch
Category I
Category 1
Hitch Lift Capacity (at 24”)
1962 lb
1,631 lb
R3 Turf - Rear
Option 1: 13.6-16; Option 2: 16.6-16
41x14.0-20 R3
R3 Turf - Front
24X8.50-14
27x8.5-15 R3
Tire Size & Options
R1 Agricultural, R3 Turf
Not Published
R4 Industrial - Rear
Not Applicable
15-19.5 R4
R4 Industrial - Front
Not Applicable
25x8.5-14 R4
R1 Agricultural - Rear
320/85D16
11.4-24 R1
R1 Agricultural - Front
180/85D12
7-16 R1
Coolant Capacity
Not Published
NOT FOUND — field label present in source but numeric value is truncated/missing in all retrieved results
Crankcase Capacity
5.0 qt
6.4 qts
Fuel Tank Capacity
8.5 gal
9 gal
Front Axle Fluid Capacity
Not Published
NOT FOUND — no explicit value located in any source
Transmission / Hydraulic System Capacity
5.5 gal
NOT FOUND — no explicit fill capacity value located in any source
Loader Lift Height
87.6 in
100 in
Loader Breakout Force
Not Published
2838 lbs
Quick Attach Loader System
Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
NOT FOUND — no CT2540-specific quick attach system name/model explicitly stated in any source reviewed
