Kubota LX4020 vs Case IH Farmall Compact 40A | Side-by-side comparison | ITC Resource Center
Compare Tractors

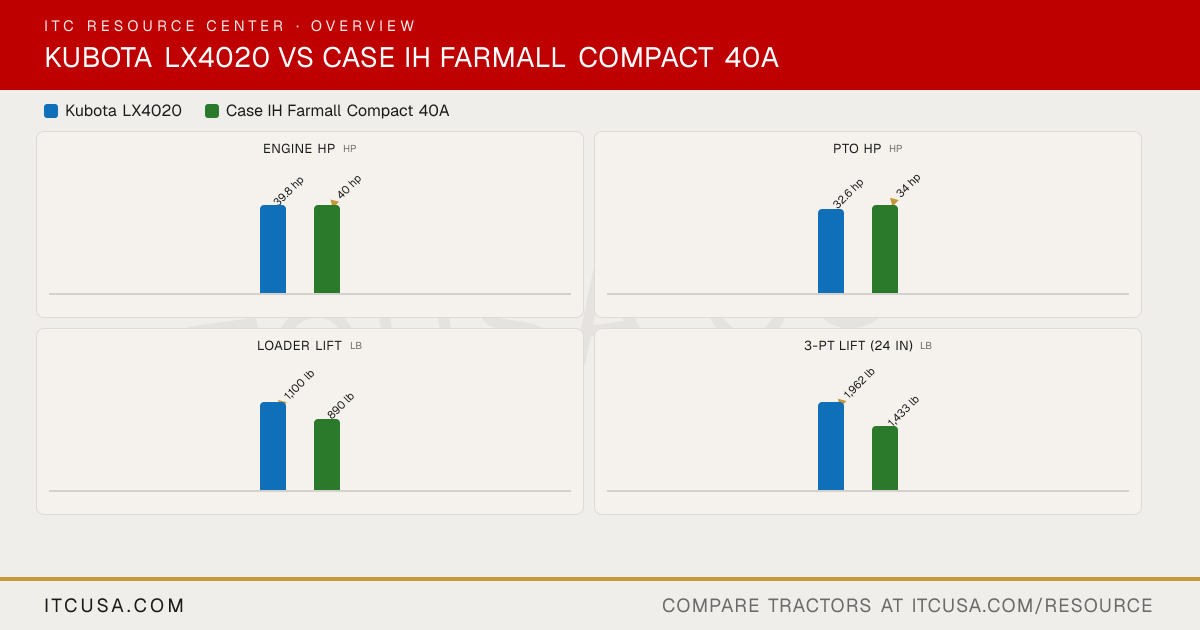

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaLX4020
Case IHFarmall Compact 40A
PTO Power
32.6 hp
34 hp
Alternator
Not Published
Not Published
Air Cleaner
6 inch paper filter (with dual element)
Not Published
Engine Type
Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged
Diesel, turbocharged
Fuel System
Not Published
Common Rail Direct Injection
Displacement
91.4 in³
115.9 in³
No. of Cylinders
4
3
Rated Engine Speed
2700 rpm
Not Published
Cooling System Type
Pressurized radiator
Not Published
Engine Manufacturer
Kubota
Not Published
Engine Power (Gross)
39.8 hp
40 hp
Engine Emissions Constraints
Not Published
Tier 4
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Applicable
Not Applicable
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
2 years bumper-to-bumper + 4 years powertrain (6 years total)
Pump Type
Dual pump
Not Published
Steering Flow
Not Published
Not Published
Implement Flow
Not Published
8.2 gpm
Total Hydraulic Flow
9.5 gpm
Not Published
Hydraulic System Type
Open center
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
9.5 gpm
Not Published
No. of Optional Remote Valves
Not Published
Not Published
No. of Standard Remote Valves
Not Published
Not Published
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Independent 540-rpm rear PTO with electro-hydraulic engagement (standard)
Lift Control Type
Position control valve
Not Published
Hitch Lift Capacity
2535 lb
Not Published
Mid-PTO Availability
2460 rpm
Optional mid-mount PTO; 2,000 rpm
Category, 3-Point Hitch
Category I
Not Published
Hitch Lift Capacity (at 24”)
1962 lb
1,433 lb @ 24 in behind ball ends
R3 Turf - Rear
Option 1: 13.6-16; Option 2: 16.6-16
Not Published
R3 Turf - Front
24X8.50-14
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf
Not Published
R4 Industrial - Rear
Not Applicable
Not Published
R4 Industrial - Front
Not Applicable
Not Published
R1 Agricultural - Rear
320/85D16
Not Published
R1 Agricultural - Front
180/85D12
Not Published
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
5.0 qt
Not Published
Fuel Tank Capacity
8.5 gal
Not Published
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
5.5 gal
Not Published
Loader Lift Height
87.6 in
Up to 98 in
Loader Breakout Force
Not Published
Up to 1,900 lb
Quick Attach Loader System
Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
