Kubota LX4020 vs Kioti DK4220SEH | Side-by-side comparison | ITC Resource Center
Compare Tractors

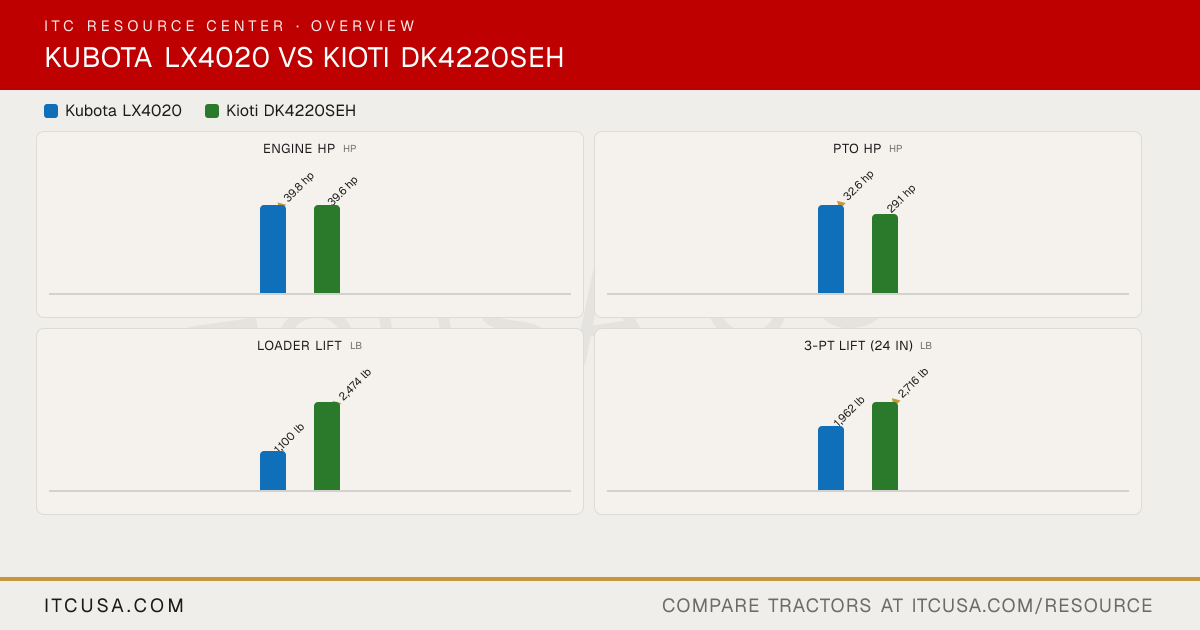

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaLX4020
KiotiDK4220SEH
PTO Power
32.6 hp
29.1 hp
Alternator
Not Published
Not Published
Air Cleaner
6 inch paper filter (with dual element)
Dry element
Engine Type
Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged
3-Cyl Diesel (Naturally Aspirated)
Fuel System
Not Published
Not Published
Displacement
91.4 in³
111.4 in³
No. of Cylinders
4
3
Rated Engine Speed
2700 rpm
2600 rpm
Cooling System Type
Pressurized radiator
Liquid-cooled
Engine Manufacturer
Kubota
KIOTI (Daedong)
Engine Power (Gross)
39.8 hp
39.6 hp
Engine Emissions Constraints
Not Published
Tier 4
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Applicable
Not Published
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Limited: Tractors (Non-Commercial Application) 24 months parts & labor; Extended (driveline): 48 months parts & labor
Pump Type
Dual pump
Gear
Steering Flow
Not Published
6.87 gpm
Implement Flow
Not Published
9.62 gpm
Total Hydraulic Flow
9.5 gpm
16.49 gpm
Hydraulic System Type
Open center
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
9.5 gpm
16.49 gpm
No. of Optional Remote Valves
Not Published
Not Published
No. of Standard Remote Valves
Not Published
2
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Independent
Lift Control Type
Position control valve
Position
Hitch Lift Capacity
2535 lb
2,998 lbs @ lower link ball
Mid-PTO Availability
2460 rpm
Optional (2,000 rpm)
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity (at 24”)
1962 lb
2,716 lbs @ 24 in behind
R3 Turf - Rear
Option 1: 13.6-16; Option 2: 16.6-16
5.7 gal-16.1
R3 Turf - Front
24X8.50-14
29X12.5-15
Tire Size & Options
R1 Agricultural, R3 Turf
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
Not Applicable
14.9-24
R4 Industrial - Front
Not Applicable
10-16.5
R1 Agricultural - Rear
320/85D16
13.6-24
R1 Agricultural - Front
180/85D12
8.0-16
Coolant Capacity
Not Published
2.1 gal
Crankcase Capacity
5.0 qt
1.95 gal
Fuel Tank Capacity
8.5 gal
12.7 gal
Front Axle Fluid Capacity
Not Published
1.48 gal
Transmission / Hydraulic System Capacity
5.5 gal
11.4 gal
Loader Lift Height
87.6 in
107.7 in
Loader Breakout Force
Not Published
3,895.0 lb
Quick Attach Loader System
Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
