Kubota LX4020 vs Kubota L4060LE | Side-by-side comparison | ITC Resource Center
Compare Tractors

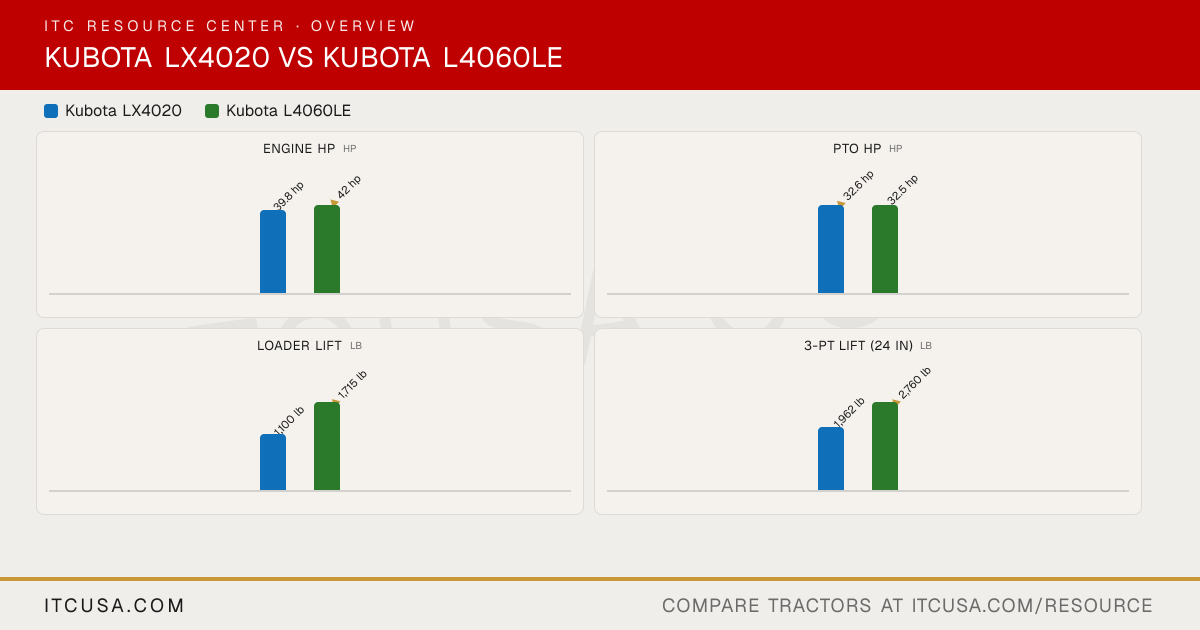

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaLX4020
KubotaL4060LE
PTO Power
32.6 hp
32.5 hp
Alternator
Not Published
40 A, 12 V
Air Cleaner
6 inch paper filter (with dual element)
Dry paper, dual element
Engine Type
Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged
Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated
Fuel System
Not Published
Electronic CRS (Common Rail System)
Displacement
91.4 in³
148.5 in³
No. of Cylinders
4
4
Rated Engine Speed
2700 rpm
2600 rpm
Cooling System Type
Pressurized radiator
Liquid-cooled
Engine Manufacturer
Kubota
Kubota
Engine Power (Gross)
39.8 hp
42 hp
Engine Emissions Constraints
Not Published
Tier 4
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Applicable
Not Published
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
Dual pump
Not Published
Steering Flow
Not Published
4.7 gpm
Implement Flow
Not Published
9.4 gpm
Total Hydraulic Flow
9.5 gpm
14.1 gpm
Hydraulic System Type
Open center
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
9.5 gpm
14.1 gpm
No. of Optional Remote Valves
Not Published
Optional, up to 3
No. of Standard Remote Valves
Not Published
Not Published
PTO Rear
540 rpm
1 speed: 540 rpm
PTO Type
Independent
Independent
Lift Control Type
Position control valve
Position control
Hitch Lift Capacity
2535 lb
Not Published
Mid-PTO Availability
2460 rpm
Optional
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity (at 24”)
1962 lb
2,760 lb
R3 Turf - Rear
Option 1: 13.6-16; Option 2: 16.6-16
Not Published
R3 Turf - Front
24X8.50-14
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf
Agricultural, Turf or Industrial tires (options)
R4 Industrial - Rear
Not Applicable
Not Published
R4 Industrial - Front
Not Applicable
Not Published
R1 Agricultural - Rear
320/85D16
12.4-24
R1 Agricultural - Front
180/85D12
7.0-16
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
5.0 qt
Not Published
Fuel Tank Capacity
8.5 gal
13.5 gal
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
5.5 gal
Not Published
Loader Lift Height
87.6 in
104.7 in
Loader Breakout Force
Not Published
2549 lb (11341 N)
Quick Attach Loader System
Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
LA805: Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Lift Capacity (Full Height)
1100 lb
1715 lb
Clutch
N/A
N/A
No. of Speeds
3 ranges
3 ranges
Transmission Type
Hydrostatic transmission
Hydrostatic (HST Plus)
Max Travel Speed (Forward)
17.0 mph
16.8 mph
Max Travel Speed (Reverse)
13.0 mph
15.1 mph
Differential Lock & Limited Slip Options
Differential lock standard
Not Published
Brakes
Multi-plate wet disk
Wet disc type
Steering
Hydrostatic power steering
Hydrostatic power steering
Frame Type
Not Published
Not Published
Front Axle Type
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Seat Type: Deluxe; Seat Suspension: Adjustable
Not Published
Wheelbase
66.7 in
74.6 in
Overall Width
53.7 in
66.5 in
Ground Clearance
8.9 in
14.2 in
Height to Top of ROPS
88.2 in
HST-LE (4WD, ROPS): 97.6 in; HSTC-LE (4WD, CAB): Not Applicable
Height to Top of Cab Model
Not Applicable
HST-LE (4WD, ROPS): Not Applicable; HSTC-LE (4WD, CAB): Not Published
Height to Top of ROPS (folded)
Not Published
HST-LE (4WD, ROPS): 91.1 in; HSTC-LE (4WD, CAB): Not Applicable
