Kubota LX4020HSDC vs Bobcat CT2040 | Side-by-side comparison | ITC Resource Center
Compare Tractors

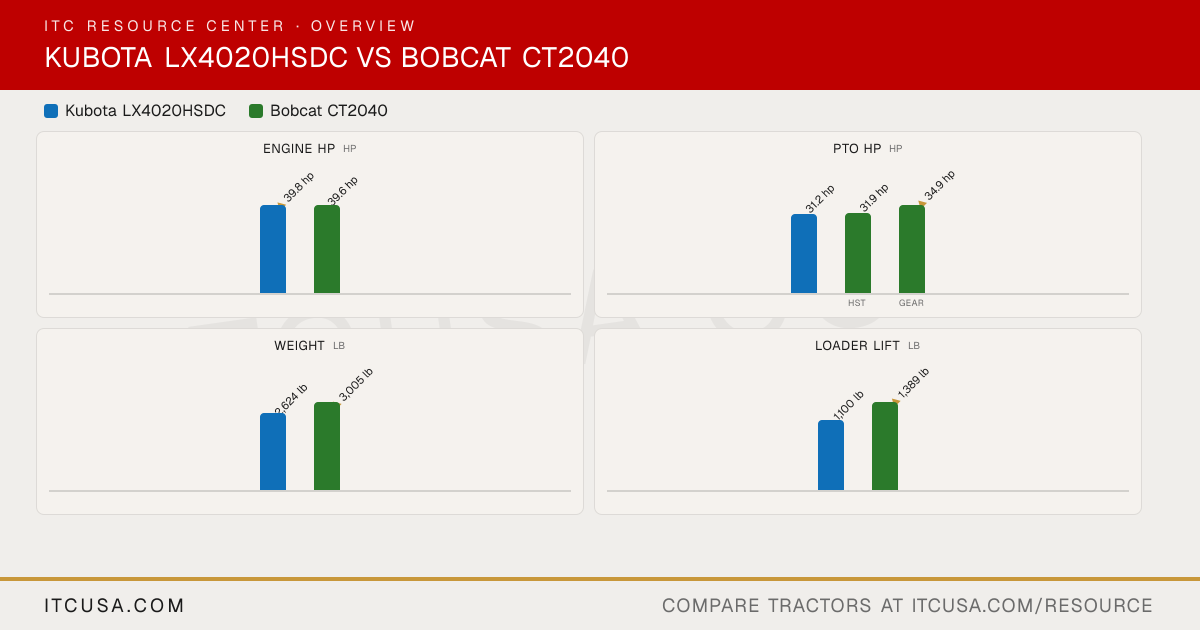

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaLX4020HSDC
BobcatCT2040
Engine Manufacturer
Kubota
Daedong
Engine Model
V1505-CR-TE5-D40Q3
3H-TH4A
Engine Type
Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged
Diesel
No. of Cylinders
4
3
Displacement
91.4 in³
111.4 in³
Rated Engine Speed
2700 rpm
2600 rpm
Engine Power (Gross)
39.8 hp
39.6 hp
PTO Power
31.2 hp
HST: 31.9 hp; MST (gear): 34.9 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Pressurized radiator
Water-cooled
Air Cleaner
6 in paper filter (with dual element)
Dry type, replaceable
Fuel System
Direct injection
Common rail direct injection (CRDI)
Alternator
Not Published
75 A, 12 V
Pump Type
Dual pump
Not Published
Implement Flow
5.4 gpm
6.9 gpm
Steering Flow
4.1 gpm
4.5 gpm
Total Hydraulic Flow
9.5 gpm
11.4 gpm
Overall Hydraulic Pump Flow
9.5 gpm
11.4 gpm
Hydraulic System Type
Open center
Not Published
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
0
None (rear hydraulics optional)
No. of Optional Remote Valves
Optional, up to 2
2 pairs
Fuel Tank Capacity
8.5 gal
9.0 gal
Coolant Capacity
5.7 qt
Not Published
Crankcase Capacity
5.0 qt
7.8 qt
Transmission / Hydraulic System Capacity
5.5 gal
5.8 gal
Front Axle Fluid Capacity
4.8 qt
6.3 qt
PTO Type
Independent
Live
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
2460 rpm
Optional: 1988 rpm
Category, 3-Point Hitch
Category I
Category 1
Hitch Lift Capacity
2535 lb
2271 lb
Hitch Lift Capacity (at 24”)
1962 lb
1631 lb
Lift Control Type
Position control valve
Hydraulic Position Control System
Transmission Type
Hydrostatic transmission
3-Range HST
No. of Speeds
3 ranges
Infinite, 3 range
Max Travel Speed (Forward)
17.0 mph
14.0 mph
Max Travel Speed (Reverse)
13.0 mph
9.7 mph
Clutch
Not Published
Not Published
Differential Lock & Limited Slip Options
Differential lock standard
Rear differential lock (standard)
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic power steering
Brakes
Multi-plate wet disk
Wet multi-disc
Seat Suspension & Adjustability
Seat Type: Deluxe; Seat Suspension: Adjustable
Adjustable seat (standard)
Front Axle Type
Not Published
Four-wheel drive (standard)
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1100 lb
1433 lb
Overall Length with 3-Point Hitch
116.1 in
120.9 in
Overall Width
53.7 in
62.4 in
Wheelbase
66.7 in
65.7 in
Ground Clearance
8.9 in
11.7 in
Min. Turn Radius without Brakes
7.5 ft (with brake applied)
96.5 in (with brake applied)
Height to Top of ROPS
Not Published
92.2 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
85.6 in
Not Published
Tractor Weight (Base)
2624 lb
3005 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front
180/85D12
7-16
R1 Agricultural - Rear
320/85D16
11.4-24
R3 Turf - Front
24X8.50-14
27x8.5-15
R3 Turf - Rear
13.6-16
41x14-20
R4 Industrial - Front
23x8.5-12 or 25x8.5-14
25x8.5-14
R4 Industrial - Rear
14-17.5 or 15-19.5
15-19.5
Quick Attach Loader System
Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Standard quick attach mounting system
Loader Model
LA545
FL8
Loader Lift Height
87.6 in
99.6 in
Loader Lift Capacity (Full Height)
1100 lb
1389 lb
Loader Breakout Force
Not Published
3285 lb
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
24 months or 1500 hours (whichever occurs first) on all components; powertrain and engine components 48 months (unlimited hours) for consumer purchasers, 36 months or 2000 hours for commercial purchasers
