Kubota LX4020HSDC vs Kubota L4060 | Side-by-side comparison | ITC Resource Center
Compare Tractors

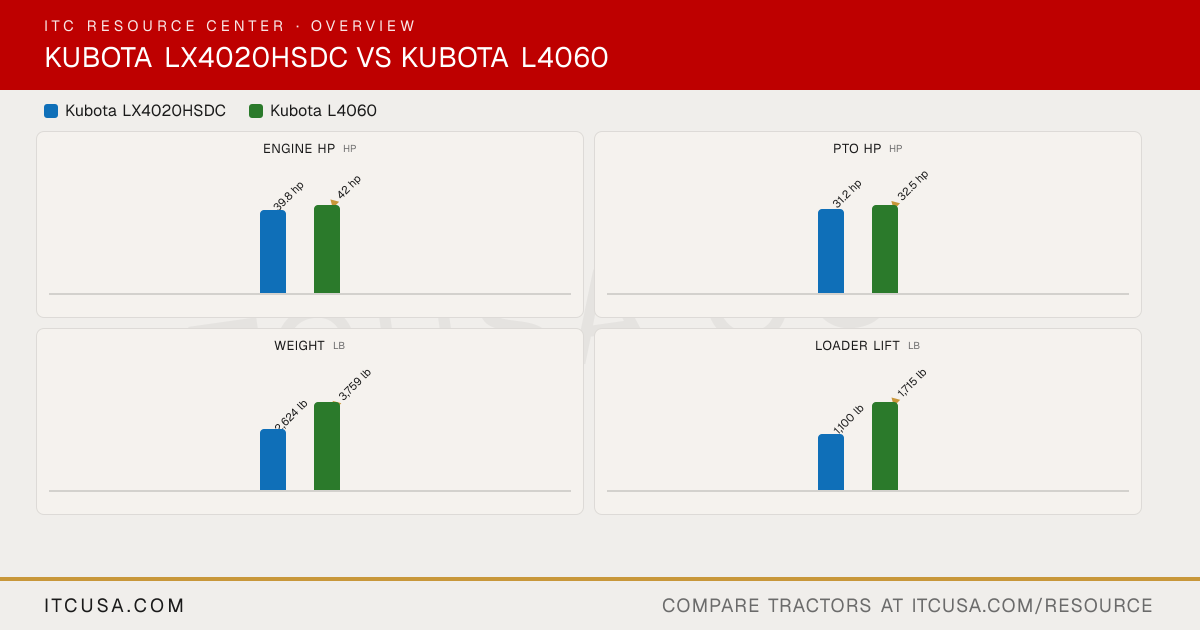

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaLX4020HSDC
KubotaL4060
Engine Manufacturer
Kubota
Kubota
Engine Model
V1505-CR-TE5-D40Q3
V2403-CR-E4-GL2
Engine Type
Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged
Liquid-cooled, 4-cycle multi valve, diesel, Naturally Aspirated
No. of Cylinders
4
4
Displacement
91.4 in³
148.5 in³
Rated Engine Speed
2700 rpm
2600 rpm
Engine Power (Gross)
39.8 hp
42 hp
PTO Power
31.2 hp
32.5 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Pressurized radiator
Liquid-cooled
Air Cleaner
6 in paper filter (with dual element)
Dry paper, dual element
Fuel System
Direct injection
Electronic CRS (Common Rail System)
Alternator
Not Published
40 A, 12 V
Pump Type
Dual pump
Tandem pump - gear type
Implement Flow
5.4 gpm
9.4 gpm
Steering Flow
4.1 gpm
4.7 gpm
Total Hydraulic Flow
9.5 gpm
14.1 gpm
Overall Hydraulic Pump Flow
9.5 gpm
14.1 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
0
None standard (up to 3 optional)
No. of Optional Remote Valves
Optional, up to 2
Optional, up to 3 (double-acting valve or float detent valve options, any position)
Fuel Tank Capacity
8.5 gal
13.5 gal
Coolant Capacity
5.7 qt
7.9 qt
Crankcase Capacity
5.0 qt
8.7 qt
Transmission / Hydraulic System Capacity
5.5 gal
11.4 gal
Front Axle Fluid Capacity
4.8 qt
6.9 qt
PTO Type
Independent
Live independent (hydraulic clutch)
PTO Rear
540 rpm
540 rpm @ 2476 engine rpm
Mid-PTO Availability
2460 rpm
Optional
Category, 3-Point Hitch
Category I
SAE Category 1
Hitch Lift Capacity
2535 lb
3,858 lb
Hitch Lift Capacity (at 24”)
1962 lb
2,756 lb
Lift Control Type
Position control valve
Position control
Transmission Type
Hydrostatic transmission
Hydrostatic
No. of Speeds
3 ranges
3-Range, 6 speeds (H-DS), infinitely variable in each
Max Travel Speed (Forward)
17.0 mph
16.8 mph
Max Travel Speed (Reverse)
13.0 mph
15.1 mph
Clutch
Not Published
Not Published
Differential Lock & Limited Slip Options
Differential lock standard
Rear differential lock, standard
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic power steering
Brakes
Multi-plate wet disk
Wet disc type, mechanically activated
Seat Suspension & Adjustability
Seat Type: Deluxe; Seat Suspension: Adjustable
Deluxe suspension seat with swivel (standard); Air-Ride seat (optional)
Front Axle Type
Not Published
4WD: Bevel gear front axle, non-adjustable tread spacing
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1100 lb
1,433 lb
Overall Length with 3-Point Hitch
116.1 in
129.5 in
Overall Width
53.7 in
66.5 in
Wheelbase
66.7 in
74.6 in
Ground Clearance
8.9 in
14.2 in
Min. Turn Radius without Brakes
7.5 ft (with brake applied)
8.9 ft (with brake applied)
Height to Top of ROPS
Not Published
97.6 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
85.6 in
Not Applicable
Tractor Weight (Base)
2624 lb
3759 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural; R3 Turf; R4 Industrial
R1 Agricultural - Front
180/85D12
8.3-16
R1 Agricultural - Rear
320/85D16
14.9-24
R3 Turf - Front
24X8.50-14
27X10.50LL-15
R3 Turf - Rear
13.6-16
41X18LL-16.1
R4 Industrial - Front
23x8.5-12 or 25x8.5-14
10-16.5
R4 Industrial - Rear
14-17.5 or 15-19.5
17.5L-24
Quick Attach Loader System
Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Mechanical 2-Lever Quick Coupler (standard); Hydraulic 2-Lever Quick Coupler (optional); Single Lever Hose Quick Coupler (optional)
Loader Model
LA545
LA805
Loader Lift Height
87.6 in
104.7 in
Loader Lift Capacity (Full Height)
1100 lb
1715 lb
Loader Breakout Force
Not Published
2549 lb (19.7 in forward of pivot pin)
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
