Kubota LX4020HSDC vs Kubota LX3520 | Side-by-side comparison | ITC Resource Center
Compare Tractors

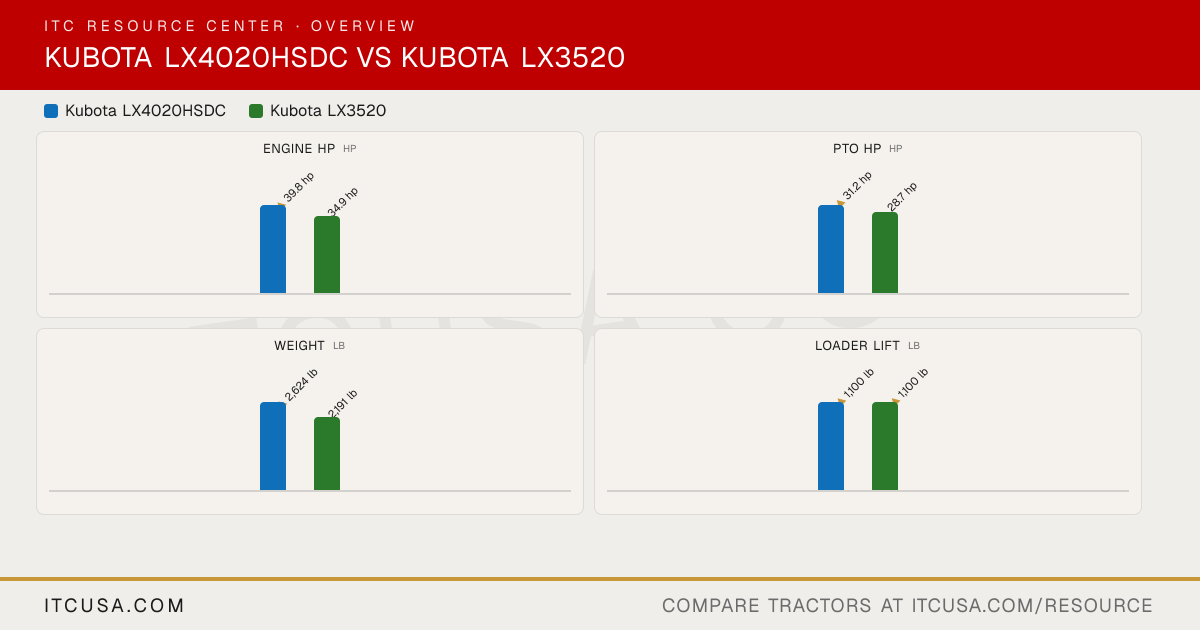

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
KubotaLX4020HSDC
KubotaLX3520
Engine Manufacturer
Kubota
Kubota
Engine Model
V1505-CR-TE5-D40Q3
V1505-CR-TE5-D40R5
Engine Type
Direct injection, vertical, water-cooled, 4-cycle, diesel, turbocharged
Direct injection, vertical, water-cooled, 4-cycle diesel with turbocharger
No. of Cylinders
4
4
Displacement
91.4 in³
91.4 in³
Rated Engine Speed
2700 rpm
2700 rpm
Engine Power (Gross)
39.8 hp
34.9 hp
PTO Power
31.2 hp
28.7 hp
Engine Emissions Constraints
Not Published
Not Published
Cooling System Type
Pressurized radiator
Pressurized radiator
Air Cleaner
6 in paper filter (with dual element)
6 in paper filter (with dual element)
Fuel System
Direct injection
Direct injection
Alternator
Not Published
Not Published
Pump Type
Dual pump
Dual pump
Implement Flow
5.4 gpm
5.4 gpm
Steering Flow
4.1 gpm
4.1 gpm
Total Hydraulic Flow
9.5 gpm
9.5 gpm
Overall Hydraulic Pump Flow
9.5 gpm
9.5 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
0
0
No. of Optional Remote Valves
Optional, up to 2
Optional, up to 2
Fuel Tank Capacity
8.5 gal
8.5 gal
Coolant Capacity
5.7 qt
4.5 qt
Crankcase Capacity
5.0 qt
5.0 qt
Transmission / Hydraulic System Capacity
5.5 gal
5.5 gal
Front Axle Fluid Capacity
4.8 qt
4.8 qt
PTO Type
Independent
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
2460 rpm
2460 rpm
Category, 3-Point Hitch
Category I
Category I
Hitch Lift Capacity
2535 lb
2535 lb
Hitch Lift Capacity (at 24”)
1962 lb
1962 lb
Lift Control Type
Position control valve
Position control valve
Transmission Type
Hydrostatic transmission
HST (3 ranges)
No. of Speeds
3 ranges
HST (3 range)
Max Travel Speed (Forward)
17.0 mph
17.0 mph
Max Travel Speed (Reverse)
13.0 mph
13.0 mph
Clutch
Not Published
Not Published
Differential Lock & Limited Slip Options
Differential lock standard
Standard
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic power steering
Brakes
Multi-plate wet disk
Multi-plate wet disk
Seat Suspension & Adjustability
Seat Type: Deluxe; Seat Suspension: Adjustable
Deluxe suspension seat (high back, designed to absorb shock)
Front Axle Type
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
1100 lb
1100 lb
Overall Length with 3-Point Hitch
116.1 in
116.1 in
Overall Width
53.7 in
53.7 in
Wheelbase
66.7 in
66.7 in
Ground Clearance
8.9 in
8.9 in
Min. Turn Radius without Brakes
7.5 ft (with brake applied)
7.5 ft (with brake applied)
Height to Top of ROPS
Not Published
88.4 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
85.6 in
85.6 in
Tractor Weight (Base)
2624 lb
2191 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural, R3 Turf, R4 Industrial, R14
R1 Agricultural - Front
180/85D12
180/85D12
R1 Agricultural - Rear
320/85D16
320/85D16
R3 Turf - Front
24X8.50-14
24x8.5-14
R3 Turf - Rear
13.6-16
13.6-16
R4 Industrial - Front
23x8.5-12 or 25x8.5-14
23x8.5-12 or 25x8.5-14
R4 Industrial - Rear
14-17.5 or 15-19.5
14-17.5 or 15-19.5
Quick Attach Loader System
Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Front Loader (LA545 - 2 Lever Quick Coupler (STD); Swift-tach (OPT))
Loader Model
LA545
LA545
Loader Lift Height
87.6 in
87.6 in
Loader Lift Capacity (Full Height)
1100 lb
1100 lb
Loader Breakout Force
Not Published
Not Published
Warranty Length & Coverage
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
